POP 2 3D Scanner User Manual

Scan Software: Handy Scan

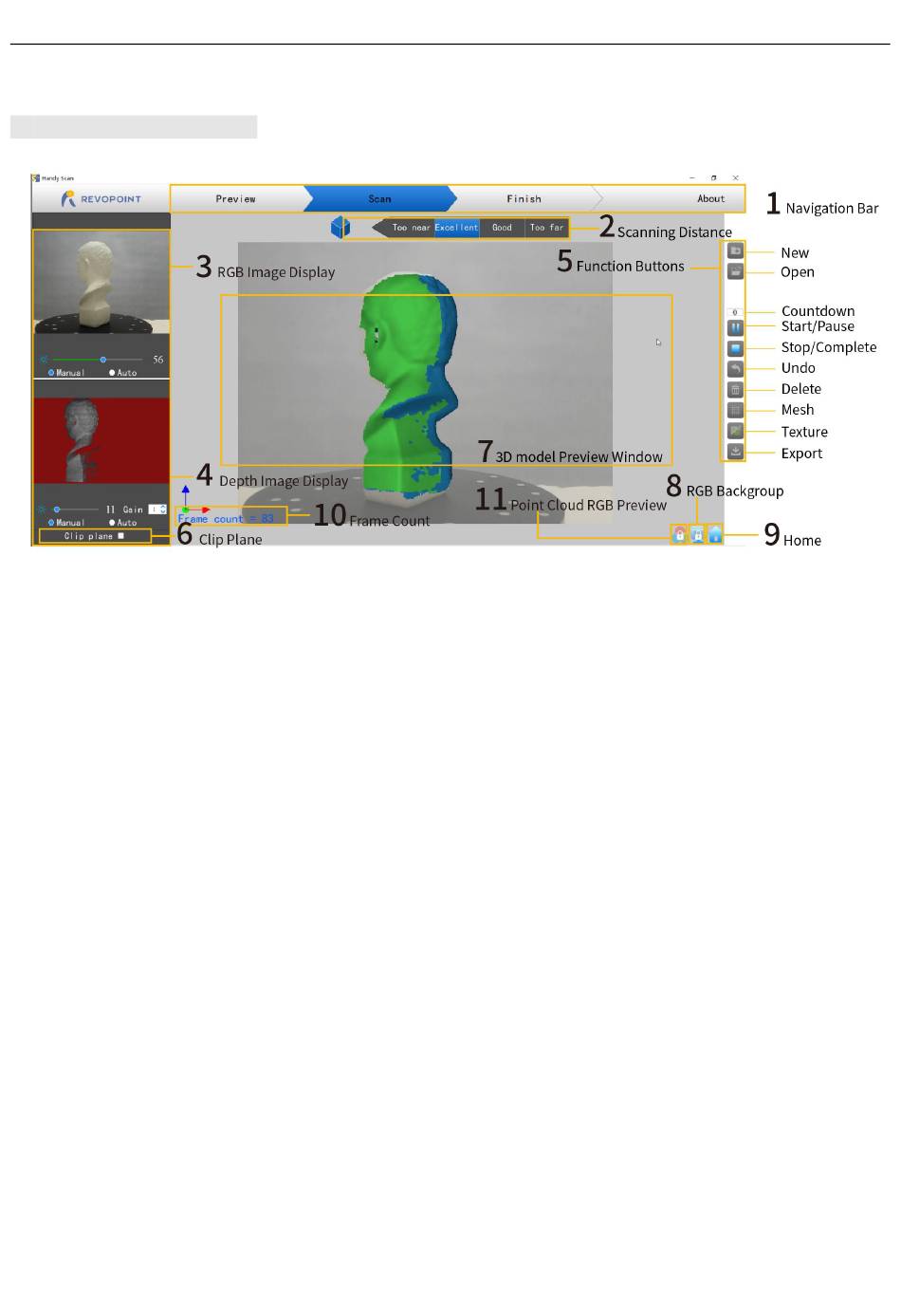

User Interface

1. Navigation Bar:
2. Scanning Distance:
3. RGB Image Display:
4. Depth Image Display:
5. Function Buttons:
New: Define a new project. Specify the Scan Mode (Feature, Marker, Face, Body or Dark and whether to capture color
data or only the shape of the scanned object.
Open:
Input a previously-scanned 3D model.
Start/Pause: Start or pause scanning.
Stop/Complete: Stop the current scanning project. A POP 2up will allow choosing between completing the scan (fusing the Point
Cloud) or deleting the entire project to start over.
Undo: Undo several scanned frames of the model at a time. Unlimited Undo operations, but there is no Redo.
Delete: Delete all scanned frames, but not the project definition. Remains in same Scan Mode to continue the project.
Mesh: Maps the scanned 3D point cloud data into planes or triangles. This operation can also be performed in Handy
Studio with higher resolution.
If "No Color" was selected when the Scan Mode was defined, the model only consists of point cloud and mesh
information.
If the "Color" option was selected, then the model will also contain the color information of each point.
Presents scanner status (Preview/Scan/Finish) and About (version information).
The POP 2 must be connected for all of the information to be displayed.
Too near, Excellent, Good, Too Far.
Placing the POP 2 so that it is in the Excellent zone will have the best balance of coverage and resolution. Adjust
the optimal distance according to the prompt.
Display the image captured by the RGB Texture camera.
Present the 3D point cloud data that can be captured.
Brightness and Gain can be manually adjusted for best results (the areas not displayed in red will return point cloud
data while scanning). Some Scan Modes allow for Automatic adjustment to find the best setting, but it is normally
best to switch to Manual before scanning to prevent exposure variations that interfere with data capture).
