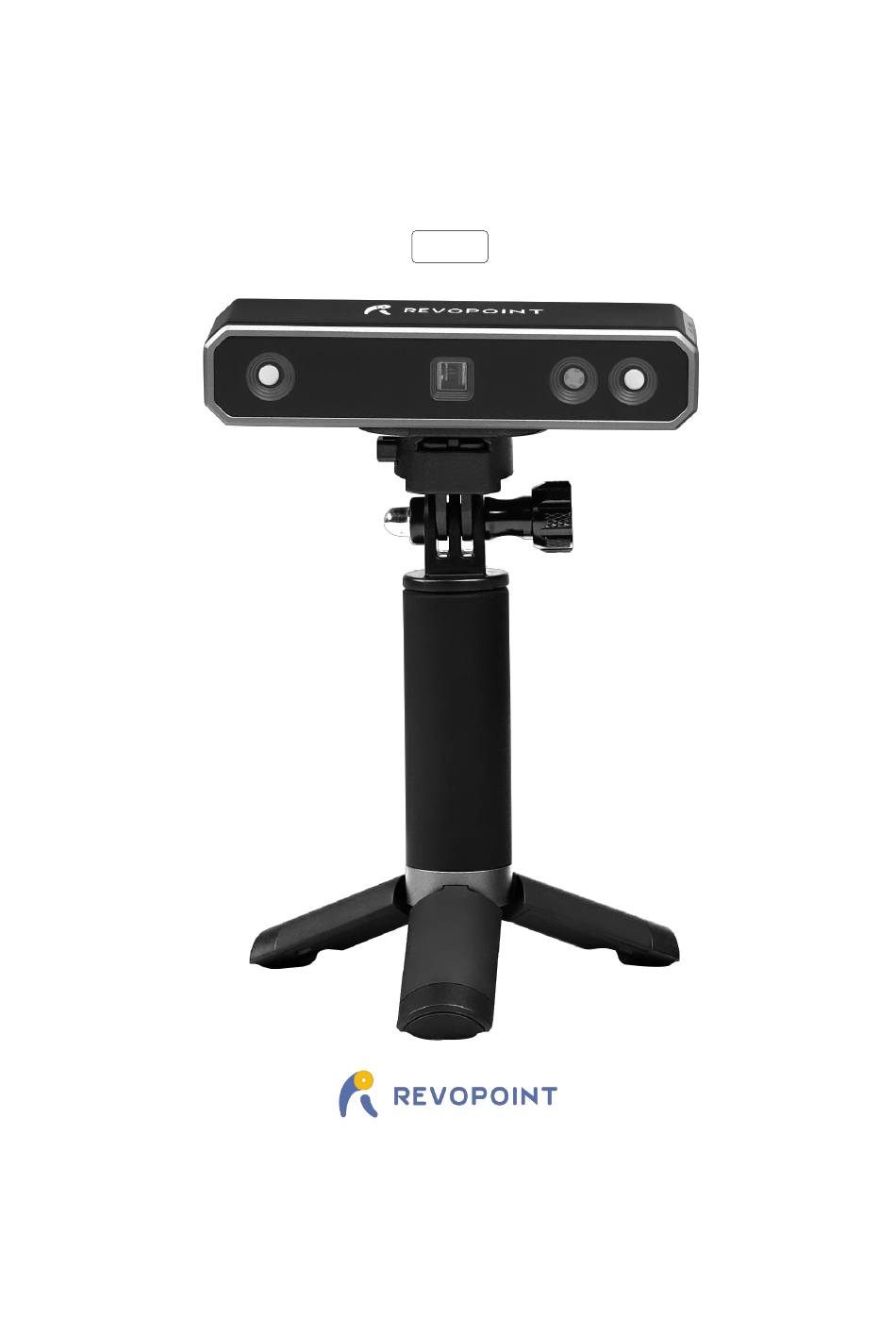

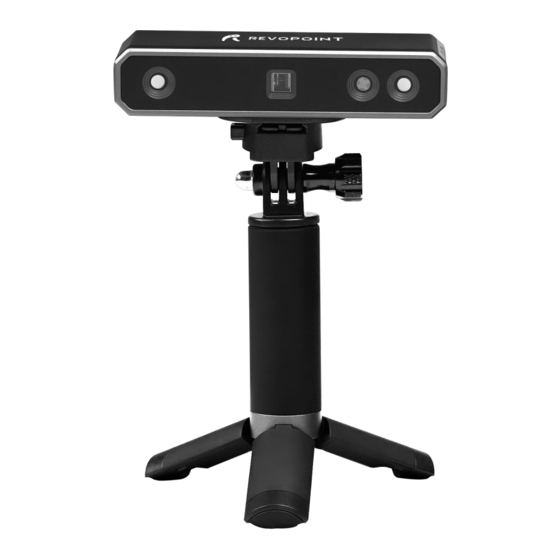

- Page 1 MINI 3D SCANNER User Manual V 1.0.1 2022.08...
- Page 2 MINI 3D Scanner Visit our official website www.revopoint3d.com for the latest software and documents. The operating temperature range of this product is 0° C to 40° C (32° F to 104° F). It does not meet military, industrial or even the full commercial operating temperature range. Operate the product appropriately and only in situations limited to this temperature range.
-
Page 3: Table Of Contents
MINI 3D Scanner User Manual Table of Content Product Profile ................................... 3 Introduction ..................................3 Specifications ..................................4 Packing List ..................................5 Hardware Connection ................................6 Laptop Connection ................................6 Wireless Connection to a Smartphone ........................... 6 Indicator Legend ................................7 Software Installation .................................. -
Page 4: Product Profile
0.05mm and a single-frame precision of up to 0.02mm. All of this is achieved with the industrial-level professional calibration tools. The MINI is a necessary modeling tool for professionals such as designers, engineers, makers, and medical and scientific research workers, and dramatically lowers the threshold for 3D creative production, allowing you to quickly build a 3D digital world while improving modeling efficiency by more than ten times. -
Page 5: Specifications
MINI 3D Scanner User Manual Specifications Product Name Revopoint 3D Scanner Product Model MINI Technology Dual-camera blue light Single-frame Precision 0.02 (mm) Single-frame Accuracy 0.05 (mm) Single capture range 64 x 118 (mm) Working distance 100 ~ 200 (mm) Minimum scan volume 10×... -
Page 6: Packing List
MINI 3D Scanner User Manual Packing List MINI Standard MINI Premium COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 7: Hardware Connection
The Default SSID: MINI-REVO-A2210012 The Default Password: Revopoint3d How to revise the SSID and Password: 1. Connect MINI 3D scanner to a PC via USB cable and Open the Revo Scan Application ; 2. Click About --→Settings; 3. Delete the default SSID and Password to enter the new desired ones. -
Page 8: Indicator Legend
The Revo Calibration allows collimation adjustments to the optical parameters of Mini, ensuring accurate scan results. Download the Revo software at our website ：... -
Page 9: Revo Scan- Ui Introduction
Display the version information for the scanner and Revo Scan, confirm or configure Wi-Fi and report bugs. ⑥ Status Bar: Display the MINI’s connection status, connection mode and scan readiness. ⑦ Display the content for the operation specified in ①, ② or ③ . COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 10: New Scan
MINI 3D Scanner User Manual 2. New Scan ① Name: Display the default name of the model to be created. Rename as needed. ② Location: Display the file folder of the model to be saved. Change as needed. Turn on and click “Browse” to import a 3D model in .PLY, .OBJ or .STL formats ③... -
Page 11: Scanning Ui
MINI 3D Scanner User Manual the main display) visible at all times during the scanning process for best results. Dark: Designed to scan dark surfaces, such as black, dark gray, or dark brown objects. However, not all dark objects can be successfully scanned. One example would be black leather shoes because leather absorbs light (or they are so shiny that they reflect too much light). - Page 12 MINI 3D Scanner User Manual the 3D Model preview area by the mouse (Left Mouse Button: Rotate the model; Wheel: Zoom in/out). ⑤ Tool Bar： Icon Reset the view of the model to the default position in the 3D Model Preview Area. This is determined by the first scanned frames of the object.
-
Page 13: Model List
MINI 3D Scanner User Manual 4. Model List ① Model Viewing Area: Lists all models scanned, creation timestamps and status. The icon sequence means that the model hasn’t been fused and meshed. The icon sequence means that the model has been scanned and its point cloud has been fused. -
Page 14: Confirm "Device Is Connected
MINI 3D Scanner User Manual Confirm "Device is connected" After opening Revo Scan, confirm the device connection status: If the device is connected successfully, the left end of the status bar displays: Device is connected. Otherwise, please check the connection. This happens typically 5-6 seconds after the scanner’s status LED on the rear panel turns blue. -
Page 15: Click New Scan To Select Accuracy, Scan Mode And Texture
After specifying the Accuracy, Scan Mode and Texture options, press “OK” to enter the scanning page. The top area of the 3D Model Preview window shows the distance. Position the MINI scanner or the object to confirm an "Excellent" distance and keep it during scanning. -
Page 16: Adjust The Brightness In The Rgb Camera And Depth Camera
MINI 3D Scanner User Manual Adjust the brightness in the RGB Camera and Depth Camera Adjust the Sun Icon on both of the smaller displays (for Android and iPhone smartphones, click on the Gear icon in the upper right of each small window to make the controls visible). If available, try Auto first, but switch back to Manual before capturing data to prevent lockups. -
Page 17: Start Or Pause Scanning
MINI 3D Scanner User Manual Start or Pause Scanning Click to Start/Pause scan. The number above the Start button is the countdown before scanning starts. During scanning, please make sure the point cloud in the lower-left window is adequate and the distance remains "Excellent". -
Page 18: Complete/Restart Scanning
MINI 3D Scanner User Manual Complete/Restart Scanning and the "Complete" button in the popup to fuse the point cloud data, or press the “Restart” button to delete the Click data and return to the Preview section (p. 8). After clicking Stop, it is possible to resume scanning (say, after repositioning either the scanner or the object being scanned). - Page 19 MINI 3D Scanner User Manual Inactive button in the Stop’s popup (so that Fusing is a manual operation, allowing changes in the preset): After clicking “Complete”, the next step is to fuse the point cloud data, as shown below: Click the drop-down arrow to display the Fuse setting by Auto and Manual modes. The smaller the point pitch, the better the result.
-
Page 20: Mesh
MINI 3D Scanner User Manual Mesh Click to start converting the scanned point cloud data into a mesh. Setting for Mesh Quality Denoise, and Fill Holes are provided in the drop-down box for both Auto and Manual modes: With higher Mesh Quality settings, more details are captured in the resulting model, at the expense of longer processing times. -
Page 21: Export
MINI 3D Scanner User Manual Export Click to export the 3D model. Select a file name and. a file format (.PLY, .OBJ & .STL, are supported). COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED... - Page 22 MINI 3D Scanner User Manual File Naming Conventions Save the 3D model as a .PLY file NAME.ply (Point Cloud) NAME_mesh.ply (Mesh no color) NAME_mesh_tex.ply (Mesh with color) NAME_mesh_tex.jpg (Texture color image) Save the 3D model (no Color/Texture) as an .STL file: NAME.ply (Point Cloud) *...
-
Page 23: Operation Tips
MINI 3D Scanner User Manual Operation Tips Lose Track When a "Lose Track" warning is displaying, please re-target the MINI cameras back to a scanned area (blue) and keep still for several seconds to re-acquire tracking. Resume scanning when red changes to green. -
Page 24: Detect Plane
MINI 3D Scanner User Manual Detect Plane Scanning a plane or objects lacking features can cause the scanner to loose tracking resulting in a prompt displaying the “Detect Plane, Need More Feature” error. If no usable data has been scanned, the best course of action is to Stop scanning,... -
Page 25: Continue Scan
MINI 3D Scanner User Manual model is clean enough to continue or save. If more point cloud data is mistakenly deleted than intended, you can click “Redo” to restore point cloud data. Continue Scan · Continue Scan After Point Cloud Fusing: It is possible to continue scanning an object after the point cloud data has been fused. -
Page 26: Batch Processing
MINI 3D Scanner User Manual Batch Processing "Batch processing" improves workflow by automatically applying the same settings for each operation to a selected group of scanned models. Fast speed: the model processing will be completed as quickly as possible; High accuracy: while the model processing, the accuracy has priority over other elements. -
Page 27: Warning
Warning The product cannot be returned if the "Warranty Void If Seal Is Broken" label is damaged or removed. Follow Revopoint 3D Technologies This content is subject to change. Download the latest version from https://www.revopoint3d.com/download-2/ If you have any questions about this document, please contact support@revopoint3d.com... -
Page 28: Support & Help
MINI 3D Scanner User Manual Support & Help If you need any help, please visit our official website or official Forum: www.revopoint3d.com/support/ https://forum.revopoint3d.com/ Contact Us Tel (US): Toll-free +1 (888) 807-3339 Tel (China): +86 18124196779 Live Chat: https://www.revopoint3d.com Email: customer@revopoint3d.com...
