POP 2 3D SCANNER
User Manual
V 3.0.1
2022.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POP 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Revopoint 3D Technologies POP 2

Summary of Contents for Revopoint 3D Technologies POP 2

  • Page 1 POP 2 3D SCANNER User Manual V 3.0.1 2022.8...
  • Page 2 POP 2 3D Scanner Visit our official website www.revopoint3d.com for the latest software and documents. The operating temperature range of this product is 0°C to 40°C (32°F to 104°F). It does not meet military, industrial or � � even the full commercial operating temperature range. Operate the product appropriately and only in situations limited to this temperature range.

  • Page 3: Table Of Contents

    POP 2 3D Scanner User Manual Table of Content Product Profile ................................... 3 Introduction ..................................3 Specifications ..................................4 Packing List ..................................5 Hardware Connection ................................6 Laptop Connection ................................6 Wireless Connection to a Smartphone ........................... 6 Indicator Legend ................................7 Software Installation ..................................

  • Page 4: Product Profile

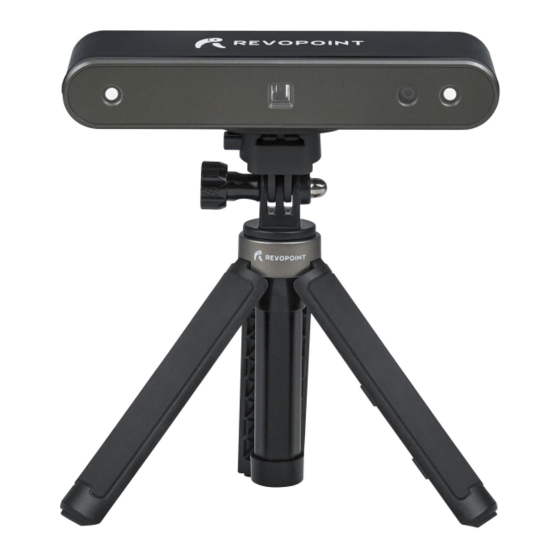

    The core hardware of POP 2 applies the principle of binocular & Micro-structured light, and with the help of the proprietary micro projecting chip, POP 2 ensures fast acquiring high-accuracy (up to 0.05mm) 3D point cloud data. And it supports texture scanning to directly generate vivid 3D models for color 3D printing.

  • Page 5: Specifications

    POP 2 3D Scanner User Manual Specifications Product Name 3D Scanner Product Model POP 2 Technology Dual camera infrared structured light Dual core ARM Cortex-A7 Single- frame Precision 0.05 mm Single capture range 210mm x 130mm Working distance 150 mm ~ 400 mm Minimum scan volume 20×20×20 (mm)

  • Page 6: Packing List

    POP 2 3D Scanner User Manual Packing List POP 2 Standard POP 2 Premium COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 7: Hardware Connection

    *The display screen resolution recommended is 1920×1080. Wireless Connection to a Smartphone For Wi-Fi settings, Host mode is default. In this mode, a smartphone could connect to the Wi-Fi provided by the POP 2 3D scanner. The default SSID is: POP2-REVO-XXXXXXXX The default Password is: Revopoint3d For example: If the Serial Number of one POP 2 3D scanner is: A21A0005206F00A54.

  • Page 8: Indicator Legend

    The Revo Scan is a scan software that assists in scanning objects and obtaining 3D models; the Revo Studio is a post- process software for postprocessing the scanned 3D models; the Revo Calibration is a Calibration Software that adjusts the parameters of POP 2 for ensuring good results. Download the Revo softwares at our website ：...

  • Page 9: Revo Scan- Ui Introduction

    ④ System Settings: Specify language and data storage location, plus the hardware accelerated rendering switch for the computer’s GPU. ⑤ About: Display the version information for the POP/POP 2 and Revo Scan, confirm or configure Wi-Fi and report bugs. ⑥ Status Bar: Display the POP/POP 2’s connection status, connection mode and scan readiness.

  • Page 10: New Scan

    Designed to scan objects that have large, smooth areas or regularly-repeating features that could fool the POP/POP 2’s internal pattern recognition capabilities. Flat planes like a board or symmetrical objects like balls or bowls are usually suitable to scan with this mode. Place tracking markers irregularly on or around the objects.

  • Page 11: Scanning Ui

    POP 2 3D Scanner User Manual absorbs light (or they are so shiny that they reflect too much light). The exposure and gain are set accordingly (no Automatic exposure adjustment). Face: Designed to scan the human face. The exposure and gain are set according to typical skin reflectivity (no Automatic exposure adjustment).
  • Page 12 Too near, Excellent, Good, Too Far. ~ Distance: Placing the POP/POP 2 or the object to be scanned so that it is in the Excellent zone will have the best balance of resolution and tracking. Adjust the optimal distance according to the prompt.

  • Page 13: Model List

    POP 2 3D Scanner User Manual 4. Model List ① Model Viewing Area: Lists all models scanned, creation timestamps and status. The icon sequence means that the model has completed scanning. The icon sequence means that the model has been scanned and its point cloud has been fused.

  • Page 14: Confirm "Device Is Connected

    If the device is connected successfully, the left end of the status bar displays: Device is connected. Otherwise, please check the connection. This happens typically 8-10 seconds after the POP/POP 2’s status LED on the rear panel turns blue. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 15: Click New Scan To Select Accuracy, Scan Mode And Texture

    After specifying the Accuracy, Scan Mode and Texture options, press “OK” to enter the scanning page. The top area of the 3D Model Preview window shows the distance. Position the POP 2 scanner or the object to confirm an "Excellent" distance and keep it during scanning.

  • Page 16: Start Or Pause Scanning

    POP 2 3D Scanner User Manual Note: Underexposure ( in Blue) Perfect Overexposure ( in Red) Start or Pause Scanning Click to Start/Pause scan. The number above the Start button is the countdown before scanning starts. During scanning, please make sure the point cloud in the lower-left window is adequate and the distance remains "Excellent".

  • Page 17: Complete/Restart Scanning

    POP 2 3D Scanner User Manual Complete/Restart Scanning Click and the "Complete" button in the popup to fuse the point cloud data, or press the “Restart” button to delete the data and return to the Preview section (p. 8). COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 18 POP 2 3D Scanner User Manual After clicking Stop, it is possible to resume scanning (say, after repositioning either the POP/POP 2 or the object being scanned). If this is desired, then be sure to move the slider switch for “Fuse point cloud immediately?” to the right before clicking “Complete”.
  • Page 19 The pitch point is at a minimum of 0.1 mm for the POP 2. Smaller pitch points result in higher resolution, but also more processing time.

  • Page 20: Mesh

    POP 2 3D Scanner User Manual Mesh Click to start converting the scanned point cloud data into a mesh. In the drop-down box, settings for Mesh Quality and Denoise are provided: With higher Mesh Quality settings, more details are captured in the resulting model, at the expense of longer processing times.

  • Page 21: Export

    POP 2 3D Scanner User Manual Export Click to export the 3D model. Select a file name and. a file format (.PLY, .OBJ & .STL, are supported). COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 22: Operation Tips

    OBJ file format. Operation Tips Lose Track When a "Lose Track" warning is displaying, please re-target the POP 2 cameras back to a scanned area (blue) and keep still for several seconds to re-acquire tracking. Resume scanning when red changes to green.

  • Page 23: Too Few Points

    Too Few Points If the "Few Point Amount" prompts appear, check whether the distance between POP 2 and the object is too close or too far and adjust the distance between the POP 2 and the object so that the distance indicator highlights “Excellent” before scanning is continued.

  • Page 24: Undo/Redo Scan

    POP 2 3D Scanner User Manual Undo/Redo scan If a point cloud alignment error appears in scanning, you can click “Undo” repeatedly to the point that the 3D model is clean enough to continue or save. Otherwise, if the point cloud is deleted more frames mistakely, you can click “Redo”...

  • Page 25: Batch Processing

    POP 2 3D Scanner User Manual Import a model file to scan over holes: · 3D model files with defects can be fixed by continuing the scanning process: First, move the slider switch for “Import an existing 3D model file and continue scanning?” to the right.

  • Page 26: Keyboard Shortcuts

    POP 2 3D Scanner User Manual Keyboard Shortcuts Press the "Space Bar" on your computer keyboard to toggle between Start and Pause. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 27: Warning

    Warning The product cannot be returned if the "Warranty Void If Seal Is Broken" label is damaged or removed. Follow Revopoint 3D Technologies This content is subject to change. Download the latest version from https://www.revopoint3d.com/download-2/ If you have any questions about this document, please contact support@revopoint3d.com...

  • Page 28: Support & Help

    POP 2 3D Scanner User Manual Support & Help If you need any help, please visit our official website or official Forum: https://forum.revopoint3d.com/ www.revopoint3d.com/support/ Contact Us Tel (US): Toll-free +1 (888) 807-3339 Tel (China): +86 18124196779 Live Chat: https://www.revopoint3d.com Email: customer@revopoint3d.com...
