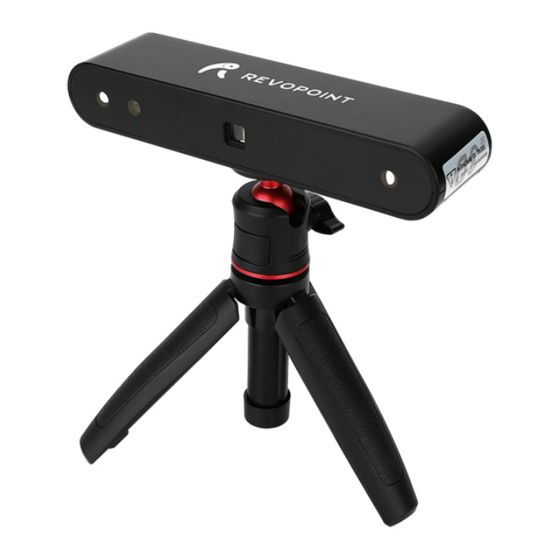

Revopoint 3D Technologies REVO POP Series User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

REVO POP SERIES 3D SCANNERS

Advanced Scanning Tips

V 3.0

2022.04

Table of Contents

Need help?

Do you have a question about the REVO POP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Revopoint 3D Technologies REVO POP Series

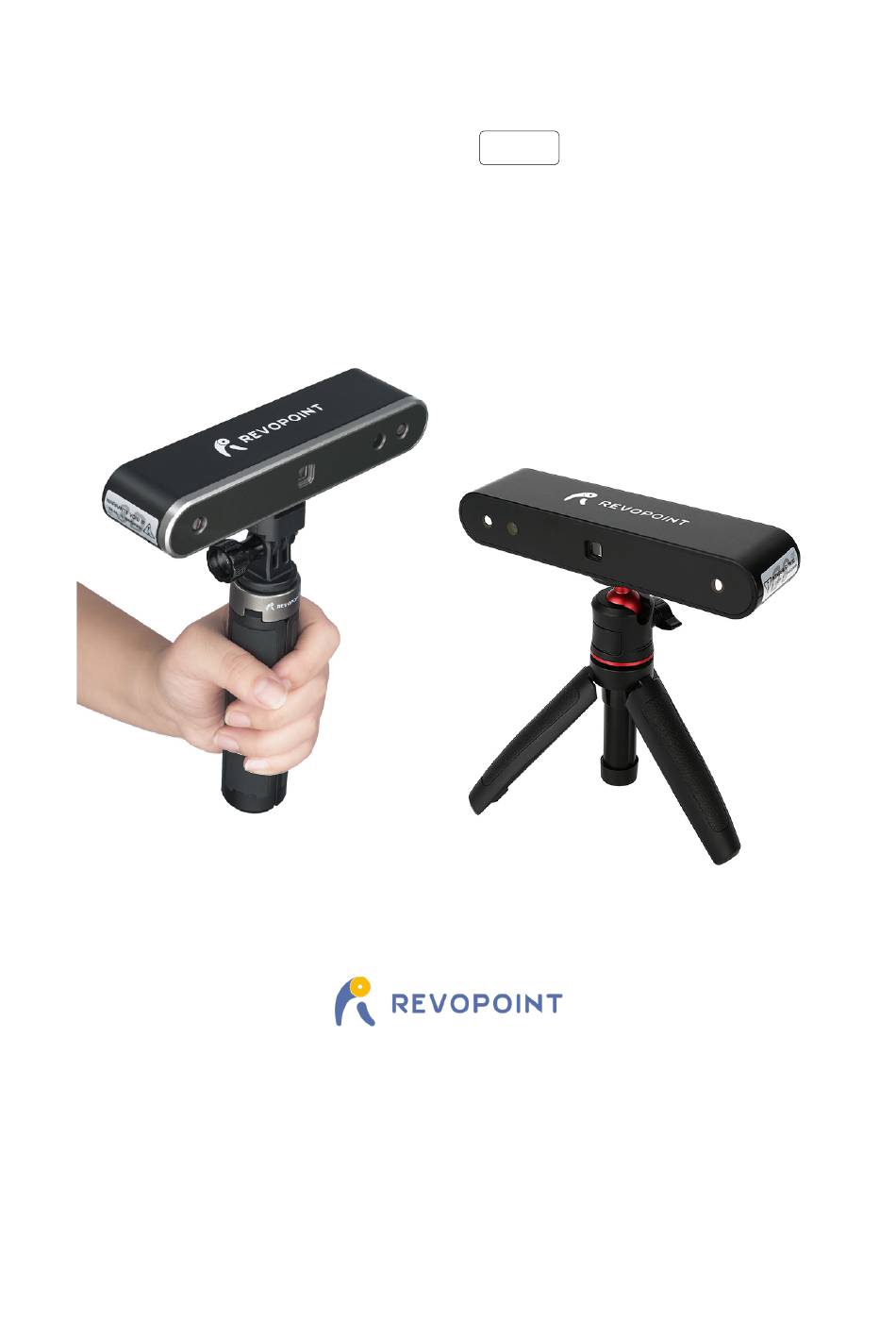

Page 1 REVO POP SERIES 3D SCANNERS Advanced Scanning Tips V 3.0 2022.04...
Page 2 Revo POP Series 3D Scanners Visit our official website www.revopoint3d.com for the latest software and documents. ⚠ The operating temperature of this product is 0°C to 40°C. It does not meet the standard operating temperature for military-grade application, which is required to endure greater environment variability. Operate the product appropriately and only for applications that it meets the operating temperature range of that grade.
Page 3: Table Of Contents
POP 3D Scanner User Manual Content What Can Scan and What Can't Scan ..............................3 1. What Can Scan ............................................3 2. What Can't Scan............................................3 3. How to Process Unscannable Objects .....................................5 How to Scan Black Objects ................................6 1. Scan Objects with Black but Diffuse Surfaces ..................................6 2.
Page 4: What Can Scan And What Can't Scan
(2) Objects with simple geometric features (scan with Markers)； 2. What Can't Scan Revo POP Series 3D scanners are optical devices, not suitable to scan glass, transparent or reflective objects; in case scanning them, further processing is needed. The following are objects that can’t be scanned directly:...
Page 5 POP 3D Scanner User Manual （ 1 ） Transparent objects( cups, glasses etc.); （2）Shining objects with metal/plating surfaces; （3）Objects easily deformed (soft bags, etc.); (4) When the sun beats down. COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 6: How To Process Unscannable Objects
POP 3D Scanner User Manual 3. How to Process Unscannable Objects (1) Spray scanning spray: (2) Apply powdery substances (liquid foundation, flour, etc.); Examples for processed objects: COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 7: How To Scan Black Objects
POP 3D Scanner User Manual How to Scan Black Objects When scanning black objects, the " Dark" mode is recommended. In “Dark” mode, the "Auto" is invalid. Please adjust the brightness manually based on default values. 1. Scan Objects with Black but Diffuse Surfaces a.
Page 8: Scan Objects With Black But Highly Reflected Surfaces
POP 3D Scanner User Manual 2. Scan Objects with Black but Highly Reflected Surfaces a. Apply a scanning spray to process the surfaces into a diffuse-reflection ones; b. Select "Dark" mode in New Scan popups; c. Adjust the distance between the object and the scanner to be in Excellent; d.
Page 9 POP 3D Scanner User Manual b. Adjust the distance between the Panda and the scanner in “Excellent”; c. Adjust the brightness for the RGB camera and depth cameras; Note: Make sure more points (both black and white areas) shown in the depth camera window.
Page 10 POP 3D Scanner User Manual 1) Scan for the first rotation; 2) Press "Pause" to turn over Panda; 3) Scan for the second rotation; 4) Complete scanning; ( if it’s necessary, you can mesh and texture map the model after completing scanning.) COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 12: How To Scan With Markers
POP 3D Scanner User Manual How to Scan with Markers Introduction Objects with geometrical features and complex shapes, scan with "Feature" mode directly. However, when scanning objects like cups or boxes with simple geometric features, scan with markers. And select "Marker"...
Page 13: Scan An Object With The Markers On A Turntable
POP 3D Scanner User Manual In the 2 &3 methods, the relative position of an object and a turntable/desk cannot change. To ensure that, you shall export several models of an object to merge a complete 3D model. Scan an Object with the Markers on a Turntable For example, we scan a cup (with simple feature): a.
Page 14 POP 3D Scanner User Manual 1) Start to scan; 2) Make sure Markers valid (more than five red dots in the center window); 3) Complete scanning; 4) Export 1 model; 5) Name the model Cup 1, save in ply., obj., or stl.; The Second Model Scanning COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 15 POP 3D Scanner User Manual Turn the cup over; Start to scan; Scan the 2 rotation; Note: Make sure Markers valid (more than five red dots center window); Export the 2nd model in ply., obj., or stl.; Merge the two models in Revo Studio; 1) Models imported in Revo Studio;...
Page 16 POP 3D Scanner User Manual 3) Click “Apply” to merge the two models into one; Note: Scanning repeatedly can't help the accuracy, and only a closer distance can improve it. If necessary, you can scan more than 2 models to merge them into a complete one. COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 17: How To Scan Small Objects
POP 3D Scanner User Manual How to Scan Small Objects Scan Small Objects Keep a closer distance while scanning small objects. Note: Scanning repeatedly couldn't help the accuracy, and you can improve it by adjusting to a closer distance. The following are scanning steps: 1.
Page 18: Multiple Scans Of A Small Object
POP 3D Scanner User Manual d. Scan the 2 rotation e. Complete scanning. 4. Export the model in ply., obj., or stl. Multiple Scans of a Small Object When scanning a small object with complex shape features, scan piece by piece and get several models to merge them into a complete one.
Page 20 POP 3D Scanner User Manual 5. Scan the second rotation to get the Model 2; 6. Complete the 2 model scanning; 7. Export the model named it as Model 2 in ply. Format. COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 21 POP 3D Scanner User Manual 8. Scan the third rotation to get the Model 3; 9. Complete the 3 model scanning; 10. Export the model and name it as Model 3 in ply. Format; Note: if necessary, you can continue to scan other aspects of the object. Two: Models Processing 1.
Page 22 POP 3D Scanner User Manual 2. Align the two models; 3. Merge the two models in one model. 4. Import Model 3 in Model 2 position; 5. Align the two models; COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 23 POP 3D Scanner User Manual 6. Merge the two models in one: 7. Process the merged model in Process UI; (Mesh--Fill holes--Smooth…) 8. Export the models named Model 4 in ply. Format; COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 24: Human Face Scanning
POP 3D Scanner User Manual Human Face Scanning Preparation Remove all glass, transparent and reflective objects: Select “Face” in Scan Mode 1. PC-Windows and Mac: Select the “Face” Scan Mode in the New Project popup menu. Refer to the image below: 2.
Page 25: Face Scanning
POP 3D Scanner User Manual Face Scanning 1. Scan Face Start scanning from one side to the other, moving slowly and steadily. Once scanning has started, the target person must remain still and the facial expression cannot change. Scan the face once and do not scan the same area again unless it is from a different angle to capture new data or to re-acquire tracking.
Page 26 POP 3D Scanner User Manual tracking to be re-acquired. Usually, the front of the face will be the best point to re-acquire tracking. 2. Scan Dark Hair 1） After face scanning is complete, click "Pause” so that the scan parameters can be changed. 2）...
Page 27 POP 3D Scanner User Manual Comparison of before and after adjusting the Brightness setting: Before After Note: Do not scan eyes directly! The Revopoint POP uses a safe Class 1 Infrared Laser, but caution should always be exercised because retinal damage is cumulative.
Page 28: Human Body Scanning
POP 3D Scanner User Manual Human Body Scanning 1. Preparation 1) Remove all glass, transparent and reflective objects. 2) Request your model to adopt a posture that can be maintained for several minutes and keep still during scanning. 2. Select the “Body” scan mode 2.1 Windows: Select “Body”...
Page 29: Scan
POP 3D Scanner User Manual 3. Scan 3.1 Scan the Face First It’s recommended to scan the face first because of the difficulty in keeping the exact same facial expression for any significant period of time. The purpose of this is to provide synchronization for aligning the scans later.
Page 30 POP 3D Scanner User Manual Move the POP to one side and scan upwards. Adjust the angle to get more of the arm. Move around to the back and scan downwards. Move around to the unscanned arm and scan upwards. Adjust the angle to get more of the arm. 3.3 Scan the Legs Continue around to the front of the body to scan the legs from top to bottom, then move to the side.
Page 31 POP 3D Scanner User Manual Scan upwards from the feet to the hip, then move to the back to scan downwards to the heels. Move to the unscanned side and scan upwards to capture the remaining area. 3.4 Scan Hair After scanning the legs and feet, we will continue by scanning the hair if it was too dark to capture.
Page 32 POP 3D Scanner User Manual Frequently Asked Questions (FAQ) If you need any help, please visit our official website or official Forum: www.revopoint3d.com/support/ https://forum.revopoint3d.com/ COPYRIGHT@2021 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 33: Warning
Warning The product cannot be returned if the "Warranty Void If Seal Is Broken" label is damaged or removed. Follow Revopoint 3D Technologies Facebook Instagram Twitter YouTube This content is subject to change. Download the latest version from www.revopoint3d.com/support If you have any questions about this document, please contact support@revopoint3d.com...
