Summary of Contents for Revopoint 3D Technologies Fingo S1

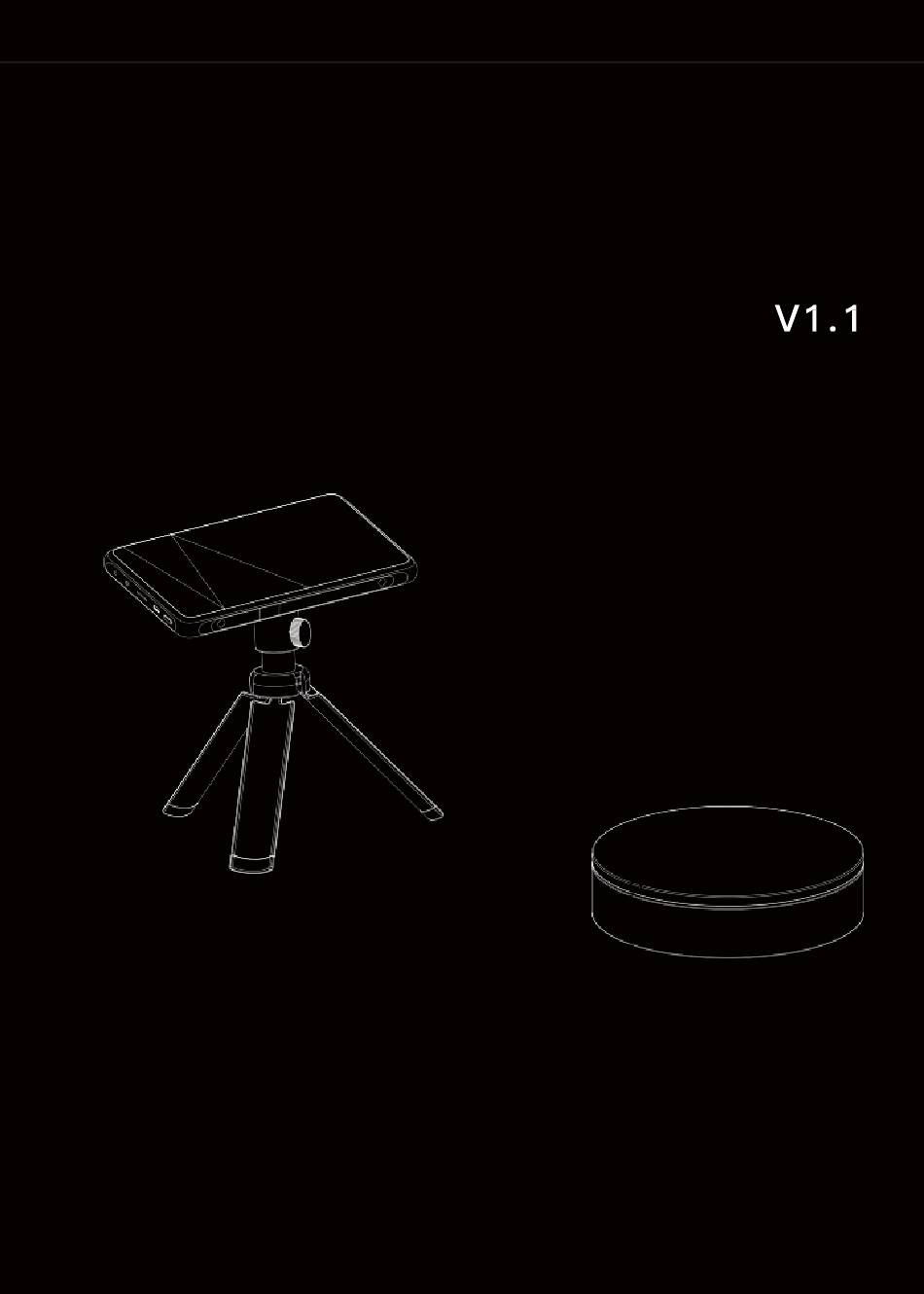

- Page 1 User Guide This guide provides information about the preparation and basic installation operations.
- Page 2 Reading Tips 1. Documentation: (1) Items Checklist (2) User Guide 2. For Software Installation Packages and Other Operating Instructions: Download at www.infly3d.com (1) Installation package of 3DModelProcess (the Model Processing Software) (2) PLAY APP Operating Instructions (3) Light Box manual (only for light box purchasers) (4) Tips for using the embedded APP 3.Tips for Usage (1) The system will update automatically.
-
Page 3: Table Of Contents
Table of Contents Product Details .................. 3 Technical Specifications ..............4 Accessories ..................5 External Interfaces and Functions ............. 7 Scanning Volume ................7 Hidden Shortcuts ................7 Alibaba Cloud Server ................ 8 Functional Interface Display ............. 9 Operating Instructions..............10 3D Scanning Instructions ............ -
Page 4: Product Details
Product Details A Compact, Portable globally original portable high-accuracy & Easy-to-Use Android 3D scanner is equipped with a 7.0-inch 3D Scanner high-definition display, embedded computing power and high-capacity lithium battery. It is a good helper for industrial VR/AR color reverse modeling, 3D portrait shooting and outdoor work. -
Page 5: Technical Specifications
Technical Specifications Product Model Fingo S1 RK3399 System Android 7.1 64G/32G Scanner Dimensions (L)192× (W)122× (H)15(mm) Net Weight 520g Weight φ200× 50(mm) Turntable Dimensions Scanning Volume 300mm× 200mm× 250mm Texture Resolution 2 to 13 Megapixels 0.1mm@450mm (scanning distance of 450mm) -
Page 6: Accessories
Accessories Item Picture Scanner Tripod Quick Charge TYPE-C Data Cable Turntable Turntable Adapter 13V Bracket, Calibration Board... - Page 7 Positioning Pad Blue Tack Object (Sample) Cleaning Cloth User Guide (including Warranty Card and Certificate) Light box...
-
Page 8: External Interfaces And Functions
External Interfaces and Functions Scanning Volume (Horizontal) Scanned object volume: (Vertical) Scanned object volume: (H)200*(L)300*(W)250(mm) (H)300*(L)200*(W)250(mm) Notice: When the scanner is placed vertically, the calibration board should also be placed vertically. Hidden Shortcuts Swipe up from the bottom edge of the screen to find the hidden shortcuts. ①... -
Page 9: Alibaba Cloud Server
Alibaba Cloud Server [Alibaba Cloud Server] ①The device utilizes Alibaba Cloud Server to process the data. ②Log in via a user name and a password, or via email and the verification code. Functional Interface Display ③Log in the model management page through www.infly3d.com. -
Page 10: Functional Interface Display
Functional Interface Display... -
Page 11: Operating Instructions
Operating Instructions 3D Scanning Instructions Step one: Tap SCANNER Step two: Login 1) Log in with user name or email address. - Page 12 Step three: Installation and layout 1) Place the scanner onto the tripod. 2) Place the scanner and the turntable on the positioning pad; put the calibration board / scanned object at the center of the turntable. 3) Connect the turntable to a power outlet and switch it on. Step four: Bind the turntable (After binding the scanner to the turntable, the system will automatically pair the scanner with the bound turntable.)
- Page 13 After selecting “Fixed scan”, the turntable needs to be matched. Check the MAC address at the bottom of the turntable for the “Turntable Physical Address”. Select the same MAC address displayed on the screen. Step five：Scanning Tap Fixed Scan; Tap SETTING to adjust the parameters. Adjust the scanner to ensure the calibration board is completely within the blue box.
- Page 14 3) Touch the object on the screen to get the best exposure of the object; 4) Tap Start Scan, the object would automatically rotate on the turntable, and a 3D model will display after the scan finishes; 5) Export the model in ply/stl format.
- Page 15 6) Tap Free Scan to freely scan the object; Complete the calibration pr ocess in Step 3 bef or e this step. Attach markers on the object before free scan; Free scanning only scans one side of the object at a time. If the whole object needs to be scanned, rotate the object 15-20 degrees in one direction after each scan, and tap Scan to continue scanning.
-
Page 16: Model Management Website
Model Management Website The model management website: www.infly3d.com It is recommended to use Google Chrome or Firefox web browser. Login: Log in with the registered user name and password or Email and the verification code to check all scanned models in Alibaba Cloud Server. 【Notice】... -
Page 17: Model Processing Software - 3Dmodelprocess
Model Processing Software - 3DModelProcess Download the software at www.infly3d.com 1.Click the drop-down button beside the Model button to select the channel to import model. Import models Ali cloud Models Local Models 2.Model processing mode: it supports single model and multi-model processing. Switch between the two processing modes by clicking Process or Fusion at the bottom of the menu bar: 3.Export formats: ply/obj/stl/zx3d... -
Page 18: Faq
Appendix Q: Tip: “Calibration failure，please try it again”. A:①Check whether the scanner and the turntable are placed correctly on the positioning pad; ②Ensure the calibration board is placed in the center of the turntable； ③ Confirm that the calibration board is completely displayed in the calibration box on the screen. - Page 19 Q: Fuzzy projection. A: Wipe the front lens with the cleaning cloth. Q: Noise can be seen in the scanned model. A: When scanning, make sure the object to be scanned, the scanner and the turntable are not moved. No other objects should be placed within 300 mm around the turntable, and there should be no movable light source or reflective objects behind the turntable.
-
Page 20: Precautions For Use
Precautions for Use 1. Please use the device indoor at the temperature of -10° ~35° . The scanning effect would be better under dark light. 2. Do not dismantle or modify the device. 3. Please do not use the device in where there is dust or cigarette smoke. 4. - Page 21 Non-tropical Safety Warning Label It means that the device with this label is designed and evaluated in non-tropical climate regions. Therefore, it can only be used in non-tropical climatic conditions. There may be potential safety hazards when used in tropical climatic conditions.
-
Page 22: Warranty Card
Warranty Card Warranty Instructions Please keep the warranty card for future maintenance request. The warranty period is twelve months from the date of purchase. During the warranty period, if there are any defects or failure under the circumstances of normal and proper use and maintenance, free maintenance and replacement parts will be available if validated.
