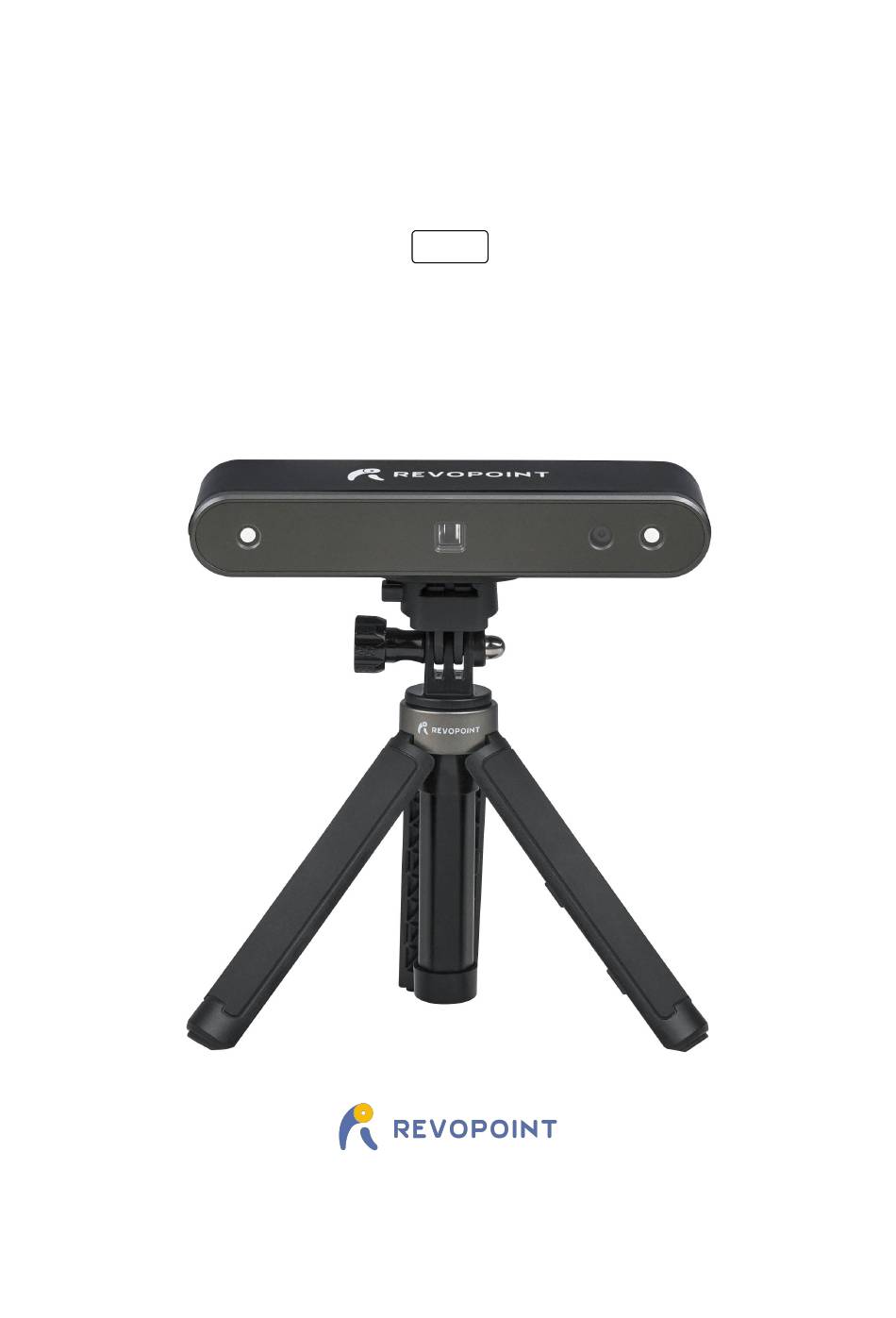

- Page 1 POP 2 3D SCANNER User Manual V 1.0 2021.11...
- Page 2 POP 2 3D Scanner Visit our official website www.revopoint3d.com for the latest software and documents. ⚠ The operating temperature range of this product is 0°C to 40°C (32°F to 104°F). It does not meet military, industrial or even the full commercial operating temperature range.
-
Page 3: Table Of Contents
POP 2 3D Scanner User Manual Content Product Profile....................................3 Introduction....................................3 Specifications..................................4 Packing List................................... 5 Hardware Connection................................... 5 Laptop Connection.................................5 Wireless Connection to a Smartphone...........................6 Indicator Legend..................................6 Software Installation..................................7 System Requirements................................7 Install Software..................................7 Scan Software: Handy Scan................................. 8 User Interface..................................8 Scan Accuracy/ Mode Introduction............................. -
Page 4: Product Profile
POP 2 3D Scanner User Manual Product Profile Introduction The newly developed POP 2 3D scanner has gathered functions of a handheld 3D scanner and a desktop 3D scanner, bringing together the company's latest scientific research results. It adopts self-developed 3D camera hardware technology and high-speed intelligent chip, which contributes to a higher performance and directly outputs accurate depth information of an object. -
Page 5: Specifications
POP 2 3D Scanner User Manual Specifications Product Name 3D Scanner Product Model POP 2 Technology Dual camera infrared structured light Dual core ARM Cortex-A7 Single capture accuracy Up to 0.1mm Single capture range 210mm x 130mm Working distance 150 ~ 400 mm Minimum scan volume 20×20×20 (mm) Scan speed... -
Page 6: Packing List
POP 2 3D Scanner User Manual Packing List Hardware Connection Laptop Connection Make sure the POP 2 scanner is connected to a USB 3.0+ port, because USB 2.0 will not supply sufficient operating current. An indicator of this is repeated power resets and lost connections. -
Page 7: Wireless Connection To A Smartphone
POP 2 3D Scanner User Manual Wireless Connection to a Smartphone A smartphone can provide a Hotspot for the POP 2 scanner. The POP 2 scanner should be powered via a battery/power supply rated for 1 amp, minimum (2 amps is better). Set personal hotspot on your smartphone: Device Name: POP 2... -
Page 8: Software Installation
POP 2 3D Scanner User Manual Software Installation System Requirements Mac: Mac OS 10.15 and above Windows： Win 8/Win 10 Memory：≥ 4G iPhone: iPhone 6s and all models after; Android： ≥Android 6.0 iPad Pro, iPad & iPad Air: 3rd generation and above Memory：≥4G System Version: ≥... -
Page 9: Scan Software: Handy Scan
POP 2 3D Scanner User Manual Scan Software: Handy Scan User Interface 1. Navigation Bar: Presents scanner status (Preview/Scan/Finish) and About (version information). The POP 2 must be connected for all of the information to be displayed. 2. Scanning Distance: Too near, Excellent, Good, Too Far. - Page 10 POP 2 3D Scanner User Manual Texture: Match pixels of the picture on the mesh model to improve the texture and color resolution. Export: Export the completed 3D model. 6. Clip Plane: Remove unwanted planes in the scene such as turntable, desktop, or floor. But if you want scanned objects containing planes, please untick this option.
-
Page 11: Scan Accuracy/ Mode Introduction
POP 2 3D Scanner User Manual Scan Accuracy/ Mode Introduction Scan Accuracy: Fast Scan and High Accuracy Scan Fast Scan: It can make users quickly scan an object, but the accuracy in this mode is relatively lower than high-accuracy scan. High-accuracy Scan: It’s added to meet users' needs to higher-precision data capturing. - Page 12 POP 2 3D Scanner User Manual underexposure. ·IR camera: (Lower left preview window) When available, switch to "Auto" to find the best overall exposure and then to "Manual" to prevent Handy Scan from continually adjusting the exposure during the scanning process and possibly locking the user interface.
-
Page 13: Operation Workflow
POP 2 3D Scanner User Manual Operation Workflow Place an object on a table → Connect POP 2 to your PC → Start Handy Scan → Click "New" start a new project → Select "Scan Mode" and "Texture" → Adjust the distance to "Excellent" → Adjust parameters (Auto first, then Manual) →... -
Page 14: Start/Pause Scan
POP 2 3D Scanner User Manual Color: The object to be scanned has both color and shape information in the scanned 3D model. No color: The scanned model has no color information; only the shape information is captured. “No color” is by default. If you want a color 3D model, please be sure to select "Color" in the Texture section. Start/Pause Scan Click to Start/Pause scan. -
Page 15: Stop Scan
POP 2 3D Scanner User Manual While scanning, the 3D Model preview window (center) will display the captured data (shown in blue) and the current data (shown in green). The currently-scanned area (lower left window) will not display the already-scanned portion of the model that is seen in the 3D Model preview window. -
Page 16: Meshing
POP 2 3D Scanner User Manual Meshing Click to start converting the scanned point cloud data into a mesh. This is an optional step; the Handy Studio app can also mesh the point cloud data, and will do so at a higher resolution, but it will take longer to process. Handy Scan was designed to process at a lower resolution on computers and smartphones to reduce processing time and to increase workflow. -
Page 17: Texture
POP 2 3D Scanner User Manual Texture The Texture function only applies to scans made with the "Color" option selected (see section “Start a New Project”). Click to apply texturing to the model. COPYRIGHT ©2021 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 18: Export
POP 2 3D Scanner User Manual Export Click to export the 3D model. Select a file format (obj., stl., & ply. are supported) and a file name. HINT: It would be convenient to select the file folder named “handylookdata” because that is the default directory for Handy Studio. File Naming Conventions If you save the scanned 3D model as a .PLY file If you save the 3D model as an .OBJ file:... -
Page 19: Operation Tips
POP 2 3D Scanner User Manual Operation Tips Miss Track When a "Miss Track" warning is displayed, please re-target the POP 2 camera back to a scanned area (blue) and keep still for several seconds to re- acquire tracking. Resume scanning when red changes to green. If the 3D Model Preview window displays a "Miss track"... -
Page 20: Detect Plane
POP 2 3D Scanner User Manual Detect Plane This prompt appears when a plane or object with too few features is scanned and the POP 2 cannot properly relate the frame’s point cloud to the other frames. If no usable data has been scanned, the best course of action is to Stop scanning, select Restart to clear out the useless data, then start a new project, this time selecting Marker mode after attaching markers to the scanning surface or the surrounding area to solve this problem. -
Page 21: Continue Scan
POP 2 3D Scanner User Manual Continue Scan Continue Scan After Mesh · It is possible to continue scanning an object after the point cloud data has been meshed. This can be necessary if the scanning controller (a computer or smartphone) runs out of RAM to capture more frames or if holes in the scan data are discovered. Don't forget to close the RGB mode before continuing. -
Page 22: Keyboard Shortcuts
POP 2 3D Scanner User Manual First, click to open this file in Handy Scan. Second, click to scan the object associated with the 3D model. *** This process can be repeated several times until the 3D model meets your requirements. Keyboard Shortcuts Press the "Space Bar"... -
Page 23: Handy Studio (Windows Only)
Handy Studio (Windows only) Handy Studio includes the ability to modify individual 3D models created by Handy Scan and to align two different 3D models so that they can be merged into a new 3D model. Double click to open the post-processing software: Handy Studio. Both single model and multi-model processing are supported in the Handy Studio;... -
Page 24: Merge (Multiple Models Processing)
POP 2 3D Scanner User Manual Merge (Multiple Models Processing) Align two models Merge the aligned models into one model Undo the previous operation and revert to the previous state Export models in PLY / OBJ / STL format Click "Model 1" and "Model 2" to import 3D models into Handy Studio. If there is sufficient overlap, the “Align”... - Page 25 POP 2 3D Scanner User Manual NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 26: Frequently Asked Questions (Faq)
POP 2 3D Scanner User Manual Frequently Asked Questions (FAQ) If you need any help, please visit our official website or official Forum: https://forum.revopoint3d.com/ www.revopoint3d.com/support/ COPYRIGHT ©2021 REVOPOINT 3D ALL RIGHTS RESERVED... - Page 27 Warning The product cannot be returned if the "Warranty Void If Seal Is Broken" label is damaged or removed. Follow Revopoint 3D Technologies Facebook Instagram Twitter YouTube This content is subject to change. Download the latest version from https://www.revopoint3d.com/download/3d-scanner-app/ If you have any questions about this document, please contact support@revopoint3d.com...
