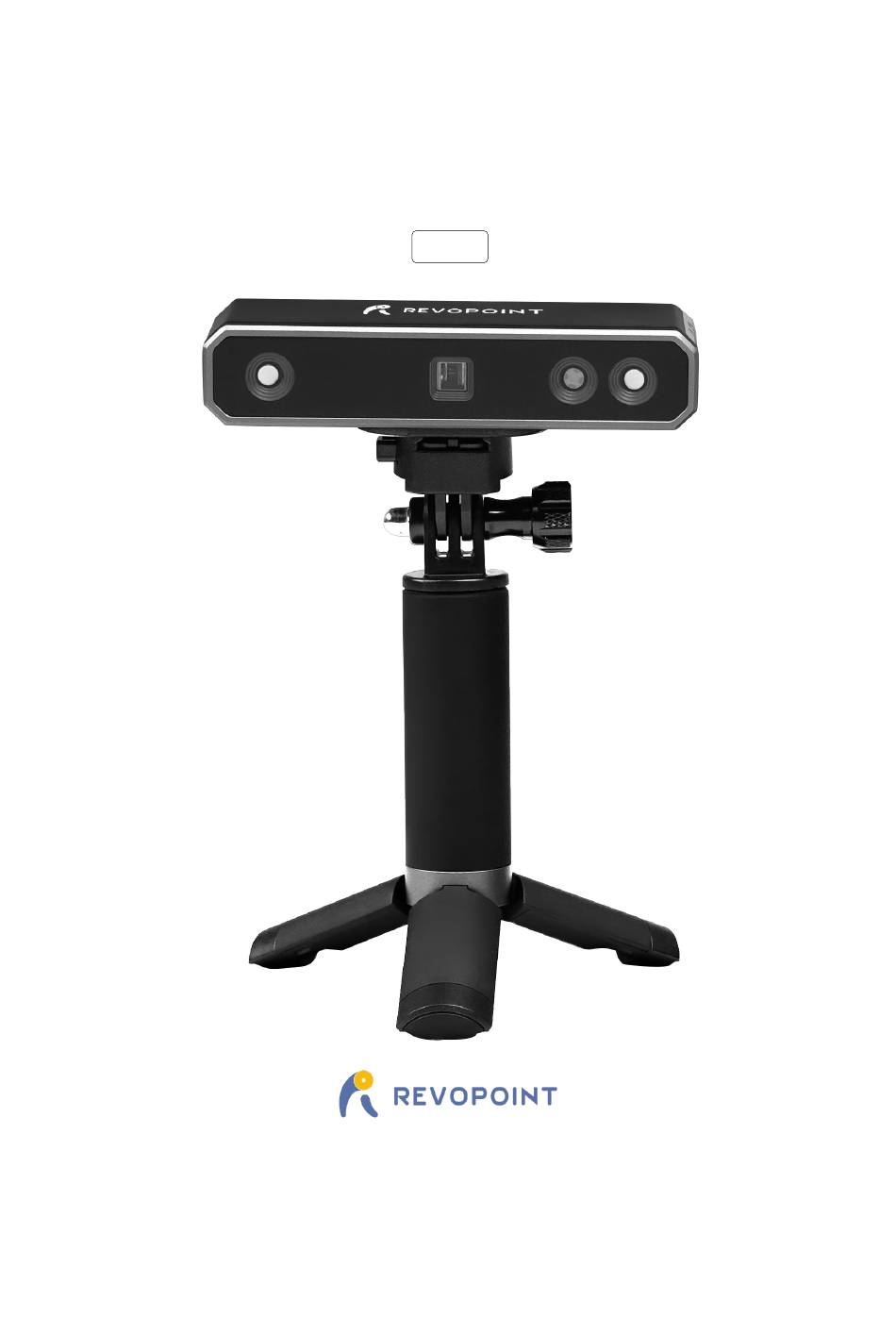

MINI 3D SCANNER
Quick Start Guide
V 1.0
2022.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI and is the answer not in the manual?

Questions and answers

Related Manuals for Revopoint 3D Technologies MINI

Summary of Contents for Revopoint 3D Technologies MINI

  • Page 1 MINI 3D SCANNER Quick Start Guide V 1.0 2022.6...
  • Page 2 MINI 3D Scanner Visit our official website www.revopoint3d.com for the latest software and documents. The operating temperature range of this product is 0°C to 40°C (32°F to 104°F). It does not meet military, industrial or � � � even the full commercial operating temperature range. Operate the product appropriately and only in situations limited to this temperature range.

  • Page 3: Table Of Contents

    Software Installation ................................4 Indicator Legend ................................4 PC: Connect to MINI 3D Scanner ............................. 4 Windows: Connect to the MINI 3D Scanner via USB Cable .................... 5 Hardware Connection ..............................5 Operation Workflow ..............................5 Confirm distance to be "Excellent" ........................... 7 Adjust the brightness in the RGB Camera and Depth Camera ..................

  • Page 4: Product Overview

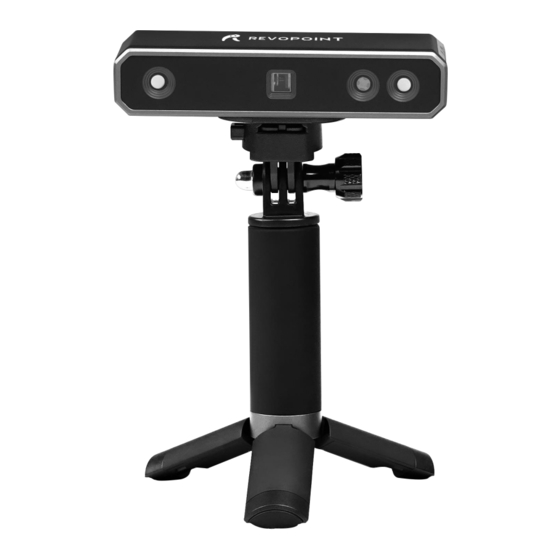

    0.05mm and a single-frame precision of up to 0.02mm. All of this is achieved with the industrial-level professional calibration tools. The MINI is a necessary modeling tool for professionals such as designers, engineers, makers, and medical and scientific research workers, and dramatically lowers the threshold for 3D creative production, allowing you to quickly build a 3D digital world while improving modeling efficiency by more than ten times.

  • Page 5: System Requirements

    PC: Connect to MINI 3D Scanner Both Mac and Windows PC can be connected to MINI 3D scanner via USB cable and Wi-Fi. In the following chapter, we are going to introduce the USB mode and Wi-Fi mode connections: for USB mode, we will take the Windows device connection as the example, and for the Wi-Fi mode, take the Mac device connection as the example.

  • Page 6: Windows: Connect To The Mini 3D Scanner Via Usb Cable

    MINI 3D Scanner Quick Start Guide Windows: Connect to the MINI 3D Scanner via USB Cable Hardware Connection Make sure the MINI scanner is connected to a USB 3.0+ port, because USB 2.0 will not supply sufficient operating current. An indicator of this is repeated power resets and lost connections.
  • Page 7 MINI 3D Scanner Quick Start Guide Confirm "Device is connected" After opening Revo Scan, confirm the device connection status: If the device is connected successfully, the left end of the status bar displays: Device is connected. Otherwise, please check the connection. This happens typically 5-6 seconds after the scanner’s status LED on the rear panel turns blue.

  • Page 8: Confirm Distance To Be "Excellent

    After specifying the Accuracy, Scan Mode and Texture options, press “OK” to enter the scanning page. The top area of the 3D Model Preview window shows the distance. Position the MINI scanner or the object to confirm an "Excellent" distance and keep it during scanning.

  • Page 9: Adjust The Brightness In The Rgb Camera And Depth Camera

    MINI 3D Scanner Quick Start Guide Adjust the brightness in the RGB Camera and Depth Camera Adjust the Sun Icon on both of the smaller displays (for Android and iPhone smartphones, click on the Gear icon in the upper right of each small window to make the controls visible). If available, try Auto first, but switch back to Manual before capturing data to prevent lockups.

  • Page 10: Start Or Pause Scanning

    MINI 3D Scanner Quick Start Guide Start or Pause Scanning Click to Start/Pause scan. The number above the Start button is the countdown before scanning starts. During scanning, please make sure the point cloud in the lower-left window is adequate and the distance remains "Excellent".

  • Page 11: Complete/Restart Scanning

    MINI 3D Scanner Quick Start Guide Complete/Restart Scanning Click and the "Complete" button in the popup to fuse the point cloud data, or press the “Restart” button to delete the data and return to the Preview section (p. 8). After clicking Stop, it is possible to resume scanning (say, after repositioning either the scanner or the object being scanned).
  • Page 12 MINI 3D Scanner Quick Start Guide Inactive button in the Stop’s popup (so that Fusing is a manual operation, allowing changes in the preset): After clicking “Complete”, the next step is to fuse the point cloud data, as shown below: Click the drop-down arrow to display the Fuse setting by Anto and Manual modes.

  • Page 13: Mesh

    MINI 3D Scanner Quick Start Guide Mesh Click to start converting the scanned point cloud data into a mesh. In the drop-down box, settings for Mesh Quality and Denoise are provided by Anto and Manual modes: With higher Mesh Quality settings, more details are captured in the resulting model, at the expense of longer processing times.

  • Page 14: Export

    MINI 3D Scanner Quick Start Guide Export Click to export the 3D model. Select a file name and. a file format (.PLY, .OBJ & .STL, are supported). COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 15 MINI 3D Scanner Quick Start Guide File Naming Conventions Save the 3D model as a .PLY file NAME.ply (Point Cloud) NAME_mesh.ply (Mesh no color) NAME_mesh_tex.ply (Mesh with color) NAME_mesh_tex.jpg (Texture color image) Save the 3D model (no Color/Texture) as an .STL file: NAME.ply (Point Cloud) *...

  • Page 16: Mac: Connect To The Mini 3D Scanner Via Wi-Fi

    2. Find the Wi-Fi provided by the MINI in your Mac’s Wi-Fi list. Usually, it is MINI-REVO-XXXXXXXX. And enter the password - Revopoint3d. For example: If the Serial Number of one MINI 3D scanner is: A22100122A6F00A64. The Default SSID and Password are: SSID: MINI-REVO-A2210012 Password: Revopoint3d 3.
  • Page 17 MINI 3D Scanner Quick Start Guide 4. Click “New Scan” to scan the object. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 18: Smartphone Connecting To Mini 3D Scanner

    1. Download the Software-Revo Scan at Revopoint official website: https://www.revopoint3d.com/download/MINI/ 2. Power the MINI scanner on with a power bank or other power supply； Note: Don’t take your PC as the power supply when scanning via Wi-Fi. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 19 3. Connect to the Wi-Fi Provided by the MINI; The default SSID is: MINI-REVO-XXXXXXXX The default Password is: Revopoint3d For example: If the Serial Number of a MINI 3D scanner is: A22100122A6F00A64. The Default SSID and Password are: SSID: MINI-REVO-A2210012 Password: Revopoint3d 4.
  • Page 20 MINI 3D Scanner Quick Start Guide 5. Back to Home and authorize the camera; 6. Adjust the brightness in RGB and depth camera; COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 21 MINI 3D Scanner Quick Start Guide Note: Underexposure ( in Blue) Perfect Overexposure ( in Red) 7. Click “Start” to scan; 7. After completing scanning, perform Point cloud fusing and Meshing; COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 22 MINI 3D Scanner Quick Start Guide 8. Check the 3D model scanned in the Project; COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 23 MINI 3D Scanner Quick Start Guide 9. Export the 3D model to another device: COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 24: Android Smartphone Connects Mini Via Usb Mode

    1）Screw the phone holder on the power bank; 2）Fix the MINI 3D Scanner on the phone holder; 3）Connect the 2-in-1mobile cable on the rear of the MINI 3D scanner, and tighten screws at both sides; COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 25: Scan With Android Device Via Usb Cable

    MINI 3D Scanner Quick Start Guide 4) Fix the Android smartphone in the phone holder; 5) Connect the 2-in-1 mobile cable to the power bank (Type A) and the smartphone (Type C) separately; Scan with Android Device via USB Cable 1.
  • Page 26 MINI 3D Scanner Quick Start Guide 2. Click “New Scan” and authorize the camera; 3. Adjust the brightness in RGB and depth camera; Note: Auto first, then Manual ( if it’s available); COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 27 MINI 3D Scanner Quick Start Guide Note: Underexposure ( in Blue) Perfect Overexposure ( in Red) 4. Click “Start” to scan; 5. After completing scanning, perform Point Cloud Fusing and Meshing; COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 28 MINI 3D Scanner Quick Start Guide 6. Check the 3D mode scanned in Project; 7. Export the 3D model to another device: COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 29: Iphone Connecting To Mini Via Wi-Fi

    MINI 3D Scanner Quick Start Guide iPhone Connecting to MINI via Wi-Fi Notice: Plug the MINI into a power bank or AC adapter. (Do not plug it into your phone) COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 30 2. Find the Wi-Fi provided by the MINI, which is MINI-REVO_XXXXXXXX. Note: The default SSID is: MINI-REVO-XXXXXXXX The default Password is: Revopoint3d For example: If the Serial Number of one MINI 3D scanner is: A22100122A6F00A64. The Default SSID and Password are: SSID: MINI-REVO-A2210012 Password: Revopoint3d 3.
  • Page 31 MINI 3D Scanner Quick Start Guide 5. Back to Home and authorize the camera; 6. Adjust the brightness in the RGB camera and depth camera. Note：Anto first, then Manual; If necessary, turn on the “Remove Plane” to eliminate the excessive pointclouds.
  • Page 32 MINI 3D Scanner Quick Start Guide Note: Underexposure ( in Blue) Perfect Overexposure ( in Red) 7. Start to scan. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 33: Warning

    Warning The product cannot be returned if the "Warranty Void If Seal Is Broken" label is damaged or removed. Follow Revopoint 3D Technologies This content is subject to change. Download the latest version from https://www.revopoint3d.com/download/MINI/ If you have any questions about this document, please contact support@revopoint3d.com...

  • Page 34: Support & Help

    MINI 3D Scanner Quick Start Guide Support & Help If you need any help, please visit our official website or official Forum: https://forum.revopoint3d.com/ www.revopoint3d.com/support/ Contact Us Tel (US): Toll-free +1 (888) 807-3339 Tel (China): +86 18124196779 Live Chat: https://www.revopoint3d.com Email: customer@revopoint3d.com...
