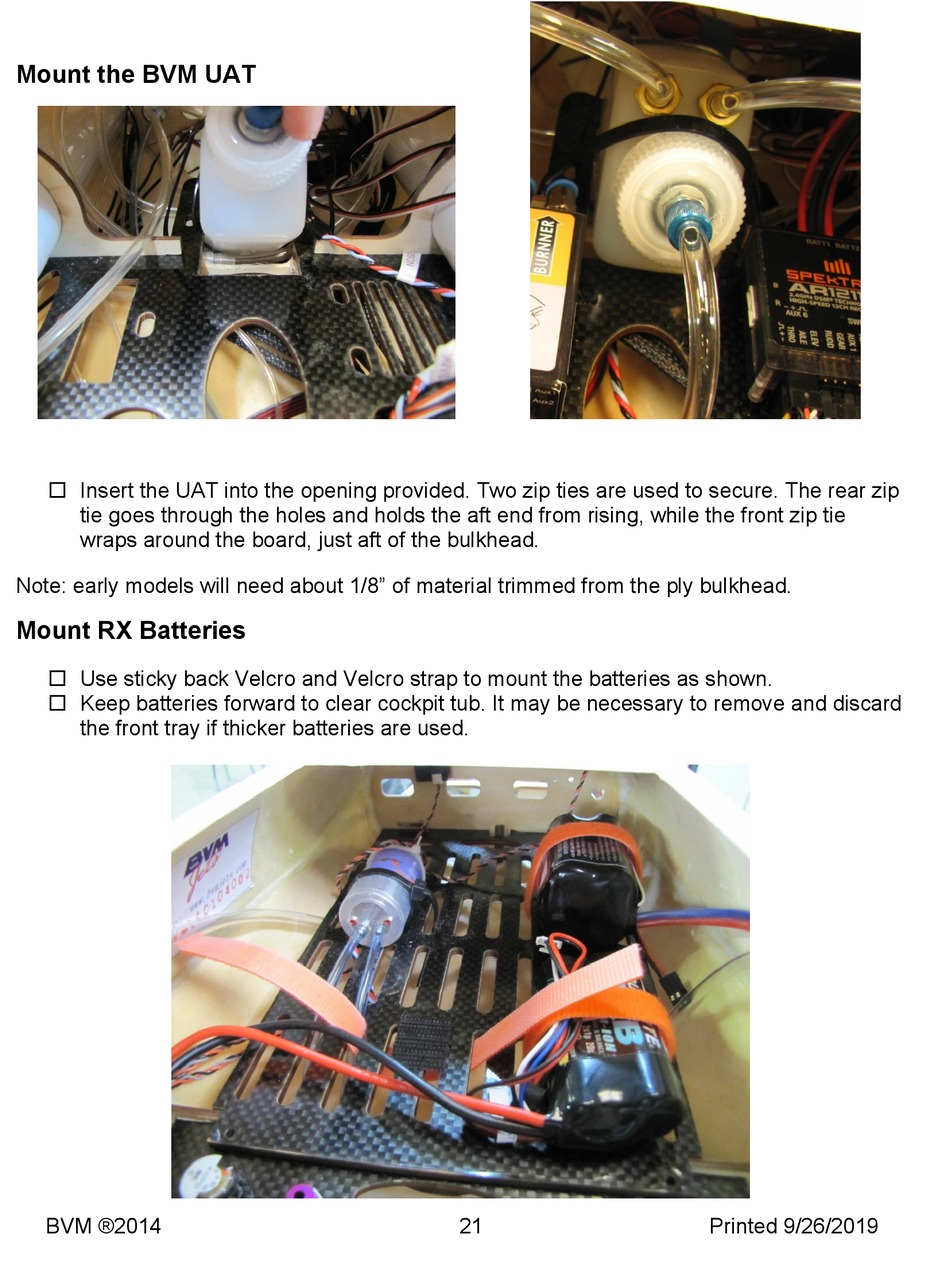

Mount the BVM UAT

 Insert the UAT into the opening provided. Two zip ties are used to secure. The rear zip
tie goes through the holes and holds the aft end from rising, while the front zip tie
wraps around the board, just aft of the bulkhead.
Note: early models will need about 1/8" of material trimmed from the ply bulkhead.

Mount RX Batteries

 Use sticky back Velcro and Velcro strap to mount the batteries as shown.
 Keep batteries forward to clear cockpit tub. It may be necessary to remove and discard
the front tray if thicker batteries are used.
