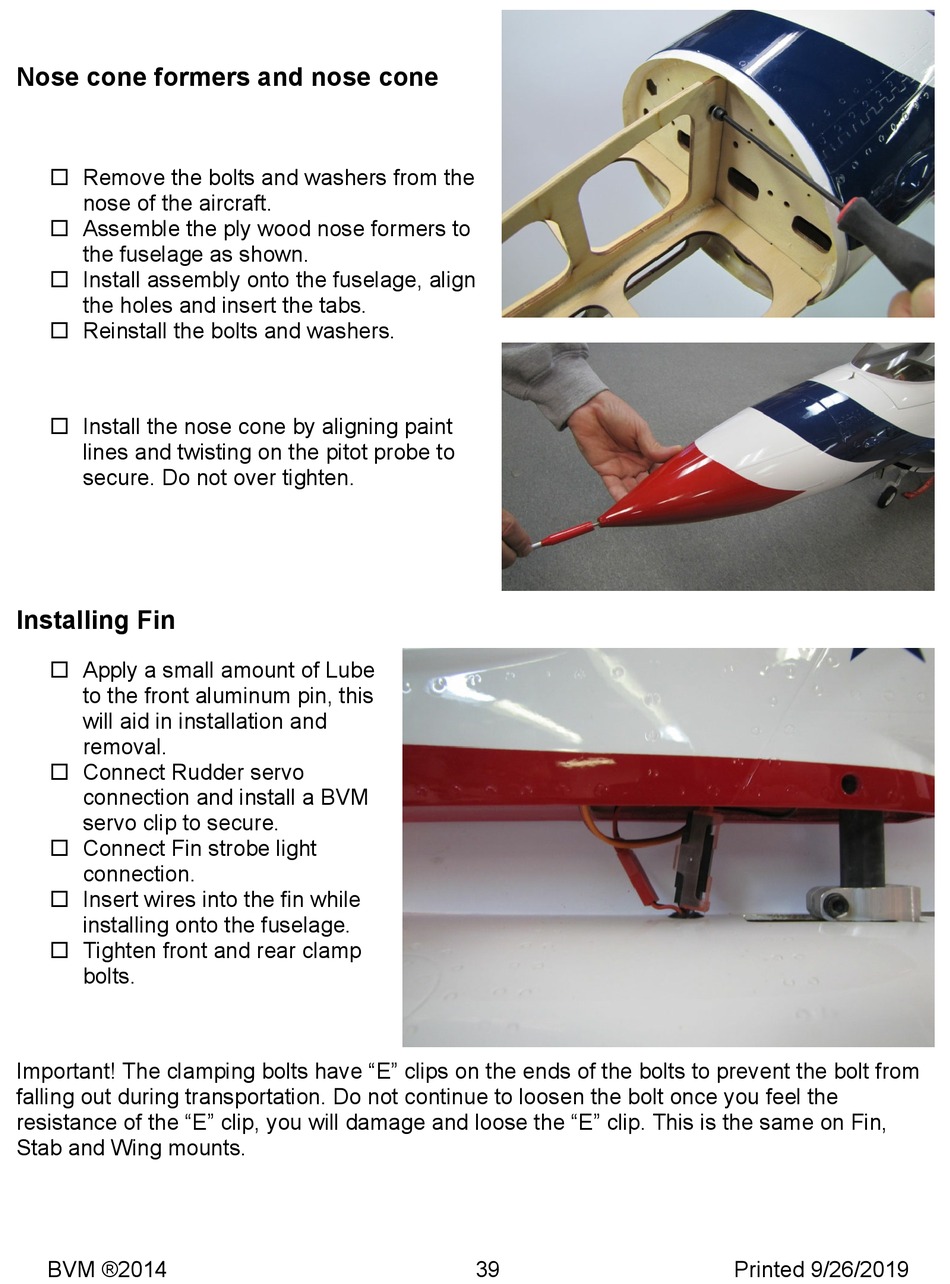

Nose cone formers and nose cone

 Remove the bolts and washers from the
nose of the aircraft.
 Assemble the ply wood nose formers to
the fuselage as shown.
 Install assembly onto the fuselage, align
the holes and insert the tabs.
 Reinstall the bolts and washers.
 Install the nose cone by aligning paint
lines and twisting on the pitot probe to
secure. Do not over tighten.

Installing Fin

 Apply a small amount of Lube
to the front aluminum pin, this
will aid in installation and
removal.
 Connect Rudder servo
connection and install a BVM
servo clip to secure.
 Connect Fin strobe light
connection.
 Insert wires into the fin while
installing onto the fuselage.
 Tighten front and rear clamp
bolts.
Important! The clamping bolts have "E" clips on the ends of the bolts to prevent the bolt from
falling out during transportation. Do not continue to loosen the bolt once you feel the
resistance of the "E" clip, you will damage and loose the "E" clip. This is the same on Fin,
Stab and Wing mounts.
