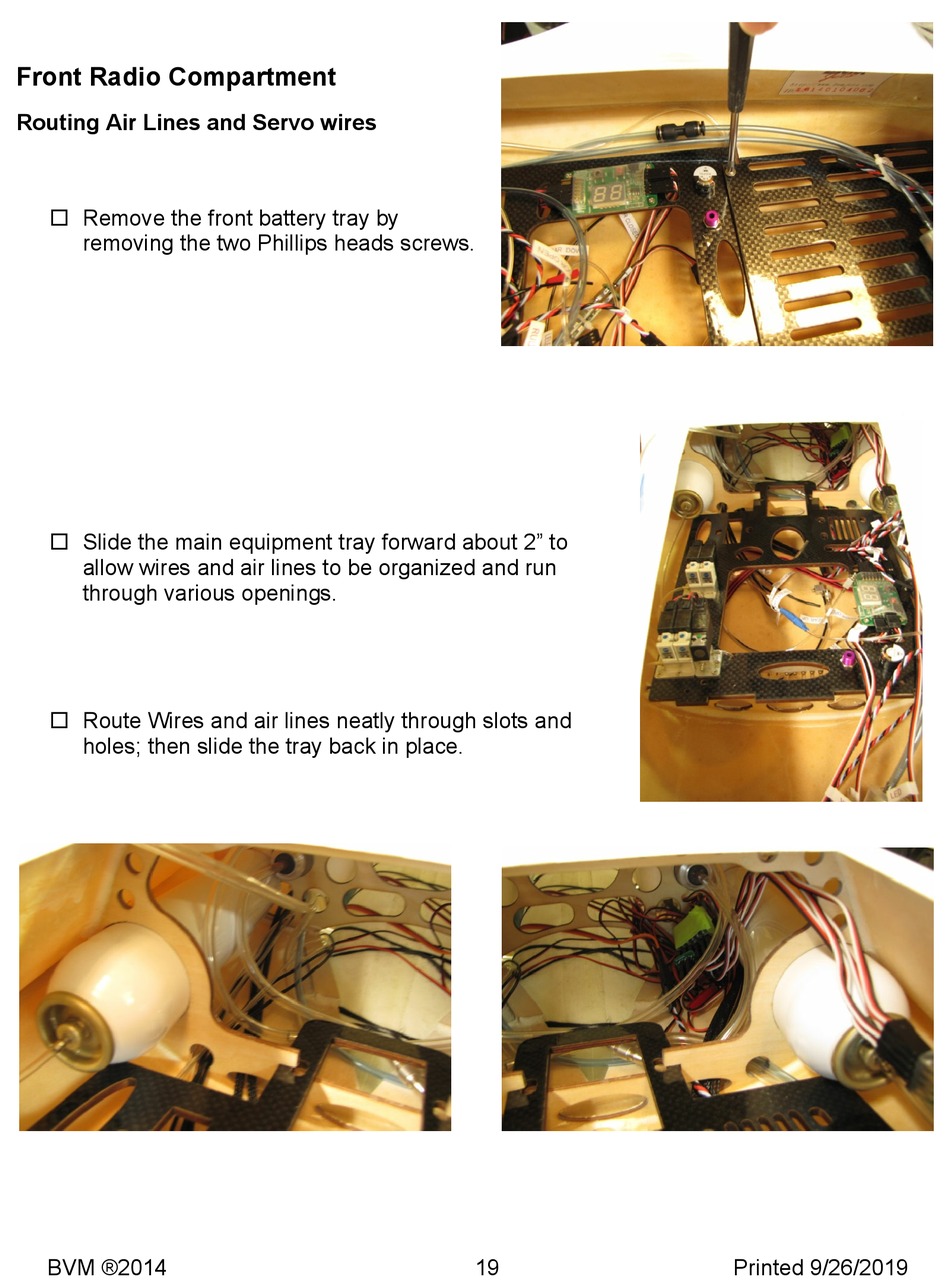

Front Radio Compartment

Routing Air Lines and Servo wires

 Remove the front battery tray by
removing the two Phillips heads screws.
 Slide the main equipment tray forward about 2" to
allow wires and air lines to be organized and run
through various openings.
 Route Wires and air lines neatly through slots and
holes; then slide the tray back in place.
