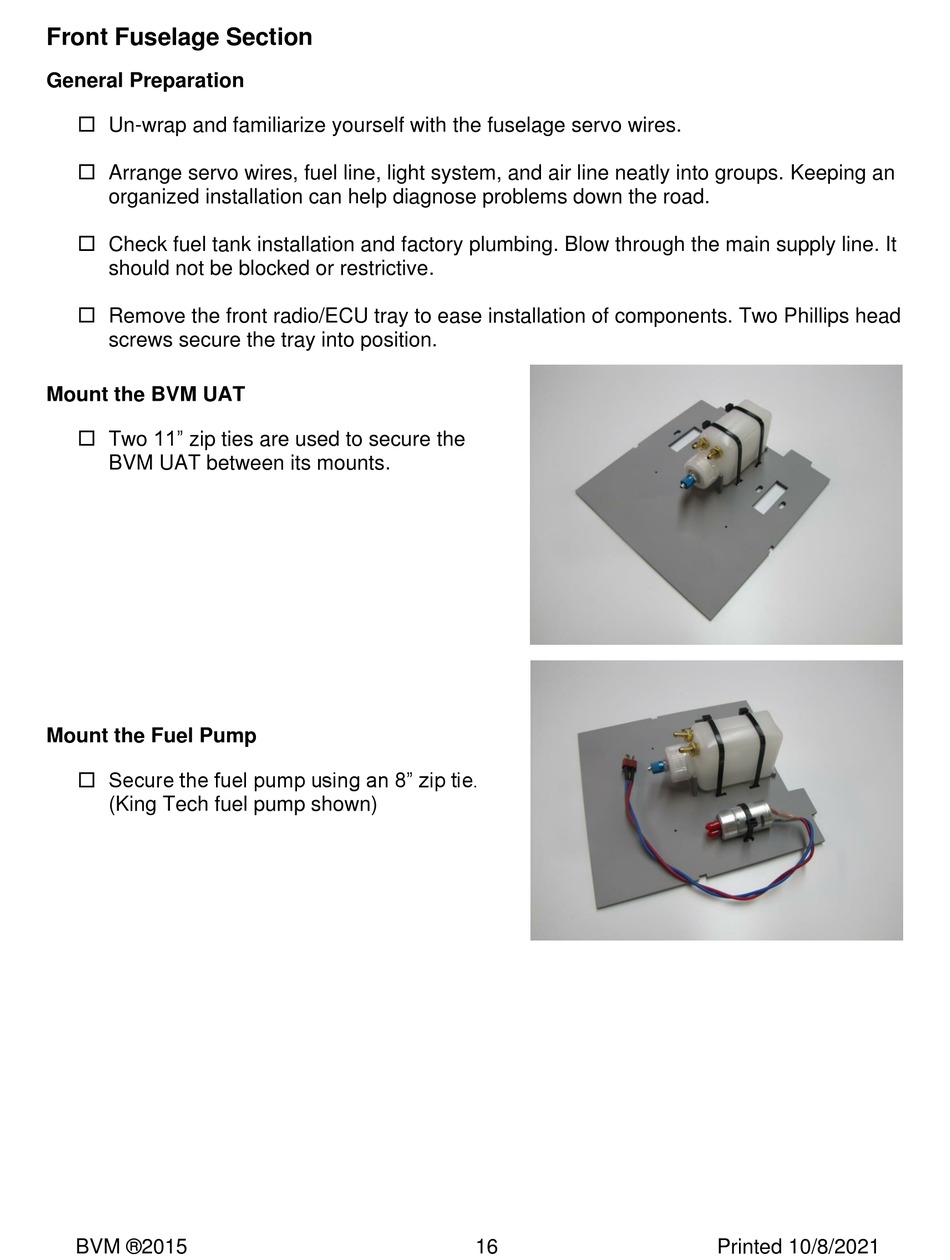

Front Fuselage Section

General Preparation

 Un-wrap and familiarize yourself with the fuselage servo wires.
 Arrange servo wires, fuel line, light system, and air line neatly into groups. Keeping an
organized installation can help diagnose problems down the road.
 Check fuel tank installation and factory plumbing. Blow through the main supply line. It
should not be blocked or restrictive.
 Remove the front radio/ECU tray to ease installation of components. Two Phillips head
screws secure the tray into position.

Mount the BVM UAT

 Two 11" zip ties are used to secure the
BVM UAT between its mounts.

Mount the Fuel Pump

 Secure the fuel pump using an 8" zip tie.
(King Tech fuel pump shown)
BVM ®2015 16 Printed 10/8/2021
