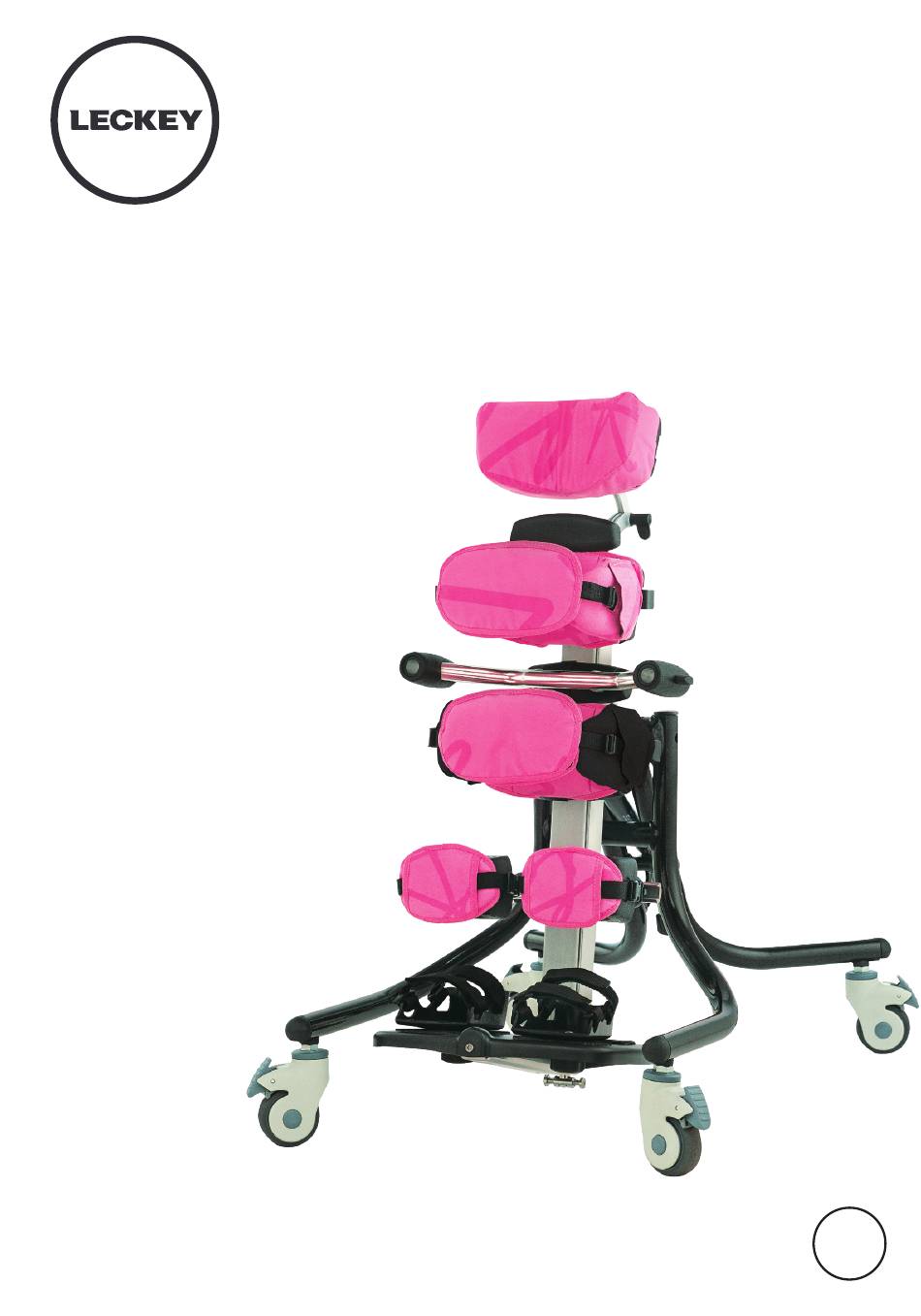

  • Page 1 Squiggles Stander User Manual Supporting English Children...

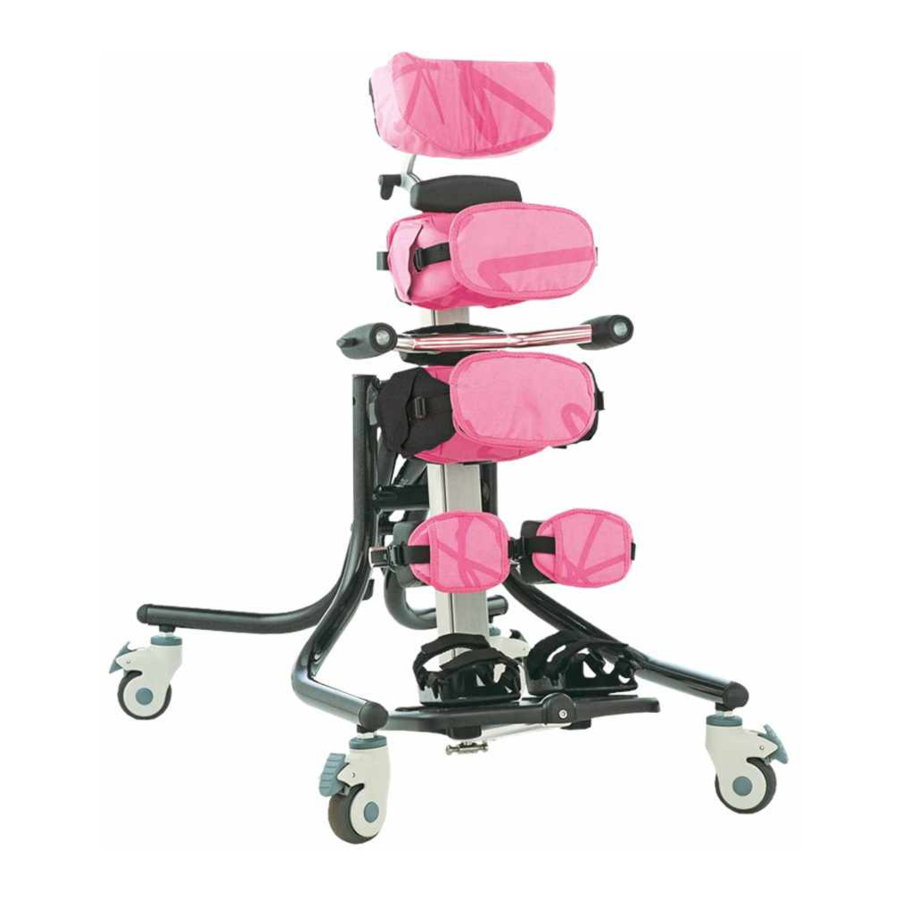

  • Page 2 Squiggles Stander User Manual p2 The Squiggles Stander has been designed to offer the support your child needs in an upright, forward leaning (prone) or rearward leaning (supine) standing posture. The stander is modular in design and interfaces with a choice of bases which have been developed for use in school or at home.
  • Page 3 Squiggles Stander User Manual p3 CONTENTS Intended use Declaration of conformity Terms of warranty Product history record Product training record Safety information How to unpack and assemble the standing system Fitting the cushions Clinical setup for postural management Frequent adjustments for daily use Cleaning &...

  • Page 4: Section 01: Intended Use

    SECTION 01: SECTION 4: PRODUCT HISTORY INTENDED USE RECORD The Squiggles Stander is a standing frame which has been designed for children with disabilities aged 1-5 for use Your Leckey product is classified as at home or in the classroom. The...

  • Page 5: Section 06: Safety Information

    3. Only use Leckey approved components with your product. Never modify the 9. When the Leckey Squiggles Stander product in any way. Failure to follow is used on the Pivot chassis we do instructions may put the user or...

  • Page 6: Section 07: How To Unpack And Assemble The Stander

    Squiggles Stander User Manual p6 SECTION 07: Multi-tool A number of adjustments will require HOW TO UNPACK AND the use of the multi-tool, which is ASSEMBLE THE STANDER supplied with each product. Safety First Check parts Keep polythene bags away Congratulations on purchasing your from children.
  • Page 7 7.2 ATTACHING THE STANDER TO ITS CHASSIS The Squiggles Stander can be used as a prone, supine or upright stander and has been designed to fit with three chassis options, the Mobile chassis, Pivot chassis...

  • Page 8: Attaching The Headrest

    Squiggles Stander User Manual p8 7.4 ATTACHING THE HEADREST To attach the Leckey headrest first open the locking lever by pressing the safety button and pulling the handle, then remove the plastic insert from the receiving collar. Then slide the stem...
  • Page 9 Squiggles Stander User Manual p9 7.6 ATTACHING THE SANDALS Place the sandal so that the attachement bolt goes through the slot in the footplate. To secure, on the underside of the footpate place the rubber washer , followed by the metal...
  • Page 10 Squiggles Stander User Manual p10 7.7 ASSEMBLE THE TRAY 7.8 ATTACHING THE TRAY COVER To attached the arms to the tray brackets, loosen the knob , place the The tray cover attaches to the tray by moulding to the inside of the tray plate placing it over the top it will then clip into so the plastic teeth mesh.

  • Page 11: Section 8: Fitting The Cushions

    Squiggles Stander User Manual p11 supine prone SECTION 8: FITTING THE CUSHIONS 8.1 CHEST AND HIP CUSHIONS Place the cushion centrally on the chest/ hip support plate. Feed the upper tab, 7.10 ATTACHING which has the snap fastener attached, over the top of the moulding and snap in THE GRAB RAIL place.
  • Page 12 Squiggles Stander User Manual p12 8.3 CHEST SUPPORT HARNESS The Chest support can be attached by clipping the male buckle into the female buckle at either side of the lateral supports. 8.2 LATERAL CUSHIONS To attach the lateral support padded...
  • Page 13 Squiggles Stander User Manual p13 8.4 PELVIC HARNESS 8.5 HIP SUPPORT HARNESS To attach the pelvic harness, simply slide the left and right sides of the harness The hip support should be attached over the lateral supports. Sleeve the around the pelvic harness as an...
  • Page 14 Squiggles Stander User Manual p14 8.7 PADDED SPINE CAP Place the padded spine cap over the 8.9 FLAT HEADREST spine of the standing support and place the plastic loops around the adjustment To attach the headrest cushion, place the knobs.

  • Page 15: Section 09: Clinical Setup For Postural Management

    Squiggles Stander User Manual p15 8.10 FLAT HEADREST 9.1 SETTING THE CHEST LATERALS SUPPORT HEIGHT To attach the headrest lateral covers, Set the chest support height first by simply slide the covers on with the placing the child in a lying position on padded side towards the inside of the a mat.

  • Page 16: Lateral Supports

    Squiggles Stander User Manual p16 9.3 ADJUSTING THE 9.4 LATERAL SUPPORTS CHEST AND HIP SUPPORTS Loosen the hand knob to adjust the width of the lateral supports and retighten To adjust the chest and hip support when you have achieved the desired...
  • Page 17 Squiggles Stander User Manual p17 9.6 CHEST AND HIP 9.7 ADJUSTING THE SUPPORT HARNESS STERNUM PAD To change the width of the chest The sternum pad can be raised to harness, lift the front cover, adjust the provide additional support to assist Velcro straps and set to the desired width thoracic extension.
  • Page 18 Squiggles Stander User Manual p18 9.10 CONTOURED AND FLAT HEADREST ADJUSTMENT The headrest should only be used when the child is in supine standing. To adjust the height, depth and angle of the contoured headrest, loosen the hand knobs and when set to the desired position retighten the knobs.
  • Page 19 Squiggles Stander User Manual p19 9.11 FLAT HEADREST LATERAL ADJUSTMENT To adjust the width of the laterals loosen plastic knob to desired position and tighten securely. 9.12 SANDALS POSITIONING To position the sandals simply loosen the knob under the footplate, select the position you require and re-fasten the knob.

  • Page 20: Footplate Angle Adjustment

    Squiggles Stander User Manual p20 9.13 FOOTPLATE ANGLE 9.15 PRODUCT ADJUSTMENT CONVERSION – PRONE TO SUPINE To set the angle to accommodate plan- tarflexion and dorsiflexion, simply To convert the Squiggles Prone Stander loosen or tighten the allen bol to set to accommodate supine standing, simply the desired angle.
  • Page 21 Squiggles Stander User Manual p21 9.16 ADJUSTING THE 9.17 ADJUSTING THE HEIGHT OF THE TRAY IN DEPTH AND ANGLE OF PRONE AND SUPINE THE TRAY The height adjustment knobs for the tray Loosen the adjustment knob on either are located on either side of the central side, slide the tubes along the receiving spine.

  • Page 22: Section 10: Frequent Adjustment For Daily Use

    Squiggles Stander User Manual p22 SECTION 10: Always secure the hip and FREQUENT ADJUSTMENT chest support harnesses first. FOR DAILY USE (THERAPISTS/CARERS/PARENTS) Parents and carers should be shown how to make frequent adjustments and made aware of the safety checks in section 6...
  • Page 23 Squiggles Stander User Manual p23 10.4 SANDALS To position the user’s feet in the sandals secure the Velcro straps provided so the foot is held in place. The straps should be placed over the bridge of the foot and over the toes. The front strap can be fed...
  • Page 24 Squiggles Stander User Manual p24 10.5 ADJUSTING THE 10.6 ADJUSTING THE HEIGHT OF THE TRAY IN DEPTH AND ANGLE OF PRONE AND SUPINE THE TRAY The height adjustment knobs for the tray Loosen the adjustment knob on either are located on either side of the central side, slide the tubes along the receiving spine.
  • Page 25 Squiggles Stander User Manual p25 10.7 GRAB RAIL ADJUSTMENT To set the depth of the grab rail to suit the childs reach loosening knob adjust to the required depth and then re-tighten. To set the height of the rail, loosen knob slide the rail to the required height and then re-tighten.

  • Page 26: Cleaning And Care

    Squiggles Stander User Manual p26 Ensure that the product and user are away from surrounding furnishings to prevent possible collision when adjusting the angle of the pivot chassis. 11 CLEANING & CARE INFORMATION How to Maintain 10.10 PIVOT CHASSIS When cleaning we recommend that you...

  • Page 27: Section 12: Daily Product Inspection

    Squiggles Stander User Manual p27 SECTION 12: A half cup of household bleach to 5 litres of water can also be used as a DAILY PRODUCT useful disinfectant. INSPECTION 5. Always ensure the product is dry before use. (THERAPISTS/PARENTS/CARERS) We recommend that daily visual checks...

  • Page 28: Section 13: Annual Product Inspection

    Squiggles Stander User Manual p28 SECTION 13: 3. Lift the base to check each castor individually. Make sure they are mov- ANNUAL PRODUCT ing freely and remove any dirt from INSPECTION the rubber wheels. Check that the brakes lock the wheels securely.

  • Page 29: Re-Issuing Leckey Products

    Squiggles Stander User Manual p29 14 RE-ISSUING LECKEY 15 PRODUCT SERVICING PRODUCTS Servicing of all Leckey products should Most Leckey products are assessed and only be carried out by technically ordered to meet the needs of an competent persons who have been individual user.

  • Page 30: Section 16: Technical Information

    Squiggles Stander User Manual p30 SECTION 16: TECHNICAL INFORMATION Product Accessory codes 118-600 Stander support 118-760 Stander covers - green 118-761 Stander covers - orange 118-762 Stander covers - blue 118-763 Stander covers - pink Chassis 118-764 Pivot chassis Accessories Codes containing an asterix are available in four colour options.
  • Page 31 Squiggles Stander User Manual p31 Squiggles Stander dimensions Ages (approx) 1 - 5 Max User Weight 22kg / 48.4lbs User Height Max 1100mm / 43.3 inches Min 730mm / 28.5 inches Chest Support Height (Distance from footplate to armpit) Max 820mm / 32 inches Min 160mm / 6.25 inches...
  • Page 32 Leckey, 19c Ballinderry Road Lisburn, BT28 2SA (+44) 28 9260 0750 Northern Ireland hello@leckey.com leckey.com LS168-10...
