  • Page 1 Squiggles TT User Manual Supporting Children...

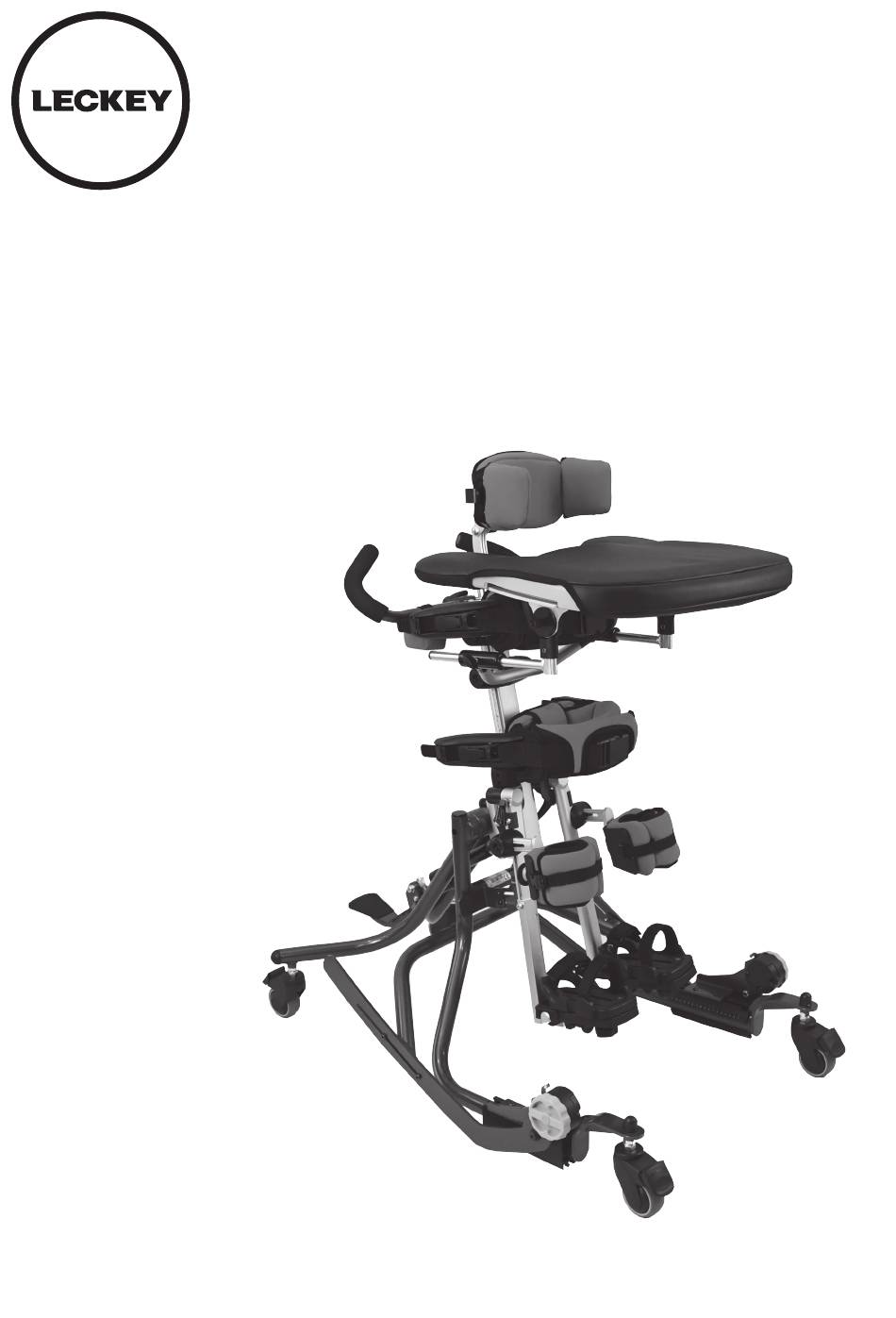

  • Page 2 Squiggles TT User Manual The Squiggles TT has been designed to offer the support your child needs in an upright, standing posture. The stander is modular in design and has been developed for use in school or at home. This manual shows how to quickly, safely and easily use your Squiggles TT functions.

  • Page 3: Intended Use

    Squiggles TT User Manual Contents Intended Use p.03 p.29 p.30 p.31 p.32 p.33 p.34 1.0 Intended Use Intended use • Indications for use •...

  • Page 4: Warnings And Cautions

    Squiggles TT User Manual relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established. NOTE: General user advice. Not following these instructions may result...
  • Page 5 Squiggles TT User Manual CAUTION CLEANING POWER WASHER/ • HOSES: • • CAUTION SERVICING/REPAIR OF • ELECTRONIC COMPONENTS: • CAUTION DAILY CHECKS: • CAUTION DISPOSAL: • • CAUTION TRIP HAZARD WITH POWERED CHASSIS: CAUTION BRINGING INTO USE: • • CAUTION CLEANING:...

  • Page 6: Terms Of Warranty

    Squiggles TT User Manual 4.0 Terms of Warranty 5.0 Product History Record 6.0 Product Training Records (Parents, Teachers & Carers) 7.0 Safety Information 11.0 Clinical Setup 12.0 Adjustments for Daily use 13.0 Cleaning and Care 14.0 Daily Product Inspection...

  • Page 7: Safety Information

    Squiggles TT User Manual 7.0 Safety Information 7.13 7.14 7.15 7.10 7.16 7.11 7.17 7.12...

  • Page 8: Precautions And Contraindications

    Squiggles TT User Manual 8.0 Precautions and Contraindications Precautions Contraindications • • • • • • • • • • • • • •...
  • Page 9 Squiggles TT User Manual 9.0 How to unpack & assemble the standing frame 9.1 Folding and unfolding the pivot chassis Always remove the standing support frame before trying to fold the chassis. Always use caution to ensure trapped when folding and...
  • Page 10 Squiggles TT User Manual The Squiggles TT has been a pivot chassis. 9.2 Attaching stander to pivot chassis set. Always make sure the locking pin is fully engaged before you place the child in the stander. 9.3 Attaching the horizontal...
  • Page 11 Squiggles TT User Manual p.11 9.4 Attaching the headrest The product contains components which could present a choking hazard to small children. Always check that locking knobs and bolts within the child’s reach are tightened and secure at all times.
  • Page 12 Squiggles TT User Manual 9.5 Inserting sandal attachment bolt...
  • Page 13 Squiggles TT User Manual p.13 9.6 Attaching the sandals 9.7 Assemble the tray Please be aware of a gap on the underside of the tray where a child between the metal bracket and the base of the plastic tray.
  • Page 14 Squiggles TT User Manual 9.8 Attaching the tray in supine Always use caution to ensure the child’s hands or arms do not become trapped when inserting the tray.

  • Page 15: Fitting The Cushions

    Squiggles TT User Manual p.15 10.0 Fitting the Cushions 10.1 Knee support pads needed 10.2 Padded Spine Cap 10.3 Headrest cushion...
  • Page 16 Squiggles TT User Manual 10.4 Attaching the lateral covers 10.5 Horizontal support cushion...
  • Page 17 Squiggles TT User Manual p.17 10.6 Pelvic and Trunk wrap...
  • Page 18 Squiggles TT User Manual 11.0 Clinical setup 11.1 Before you start ASIS 11.2 Adjusting the overall height...
  • Page 19 Squiggles TT User Manual p.19 11.3 Adjusting the push handle push handle with one hand whilst making the adjustment with your other hand. 11.4 Adjusting the trunk and pelvic supports Always use caution to ensure trapped when adjusting the trunk and pelvic supports.
  • Page 20 Squiggles TT User Manual 11.5 Lateral supports Always use caution to become trapped when adjusting the lateral supports. 11.6 Adjusting the height, depth and angle of the knee cups...
  • Page 21 Squiggles TT User Manual p.21 11.7 Headrest adjustment Always use caution to become trapped when height adjusting the headrest. 11.8 Flat headrest lateral adjustment...
  • Page 22 Squiggles TT User Manual 11.9 Sandals positioning If the child is wearing sandals or light footwear check the straps to make sure the webbing does not irritate the skin. 11.10 Footplate angle adjustment...
  • Page 23 Squiggles TT User Manual p.23 11.11 Adjusting for abduction 11.12 Adjusting the height of the tray 11.13 Adjusting the depth and angle of the tray...
  • Page 24 7 by a technically and clinically competent person who has been trained in the use of the product. Leckey recommend that a written record is maintained of all parent and carers who have been trained in the use of this product.
  • Page 25 Squiggles TT User Manual p.25 12.2 Pelvic support 12.3 Knee support pads and sandals 12.4 Trunk support...
  • Page 26 Squiggles TT User Manual 12.5 Head support and horizontal support 12.6 Bringing the child upright...
  • Page 27 Squiggles TT User Manual p.27 12.7 Dynamic base 12.7 Dynamic base: To engage To engage the dynamic base: the dynamic base: Turn the dials on the Left and Right Hand Side of the rocker base so that the ‘rocker’ symbol...

  • Page 28: Cleaning & Care Information

    Squiggles TT User Manual 13.0 Cleaning & Care Information 12.7 Dynamic base: To disengage the dynamic base: Turn the dials on the How to Maintain Left and Right Hand Side of the rocker base so that the ‘wheels on the ground’...
  • Page 29 Squiggles TT User Manual p.29 p.28 Squiggles TT User Manual 13.0 Cleaning & Care Information How to Maintain Upholstery and fabrics Metal and plastic components...

  • Page 30: Daily Product Inspection

    Squiggles TT User Manual Squiggles TT User Manual p.29 14.0 Daily Product Inspection Therapists, parents & carers...

  • Page 31: Annual Product Inspection

    Squiggles TT User Manual p.31 p.30 Squiggles TT User Manual 15.0 Annual Product Inspection (Therapist, Technician, Product Specialist, Dealer)

  • Page 32: Re-Issuing Leckey Products

    Squiggles TT User Manual Squiggles TT User Manual p.31 16.0 Re-issuing Leckey Products accumulated soiling prior to disinfecting/sanitising.

  • Page 33: Product Servicing

    Squiggles TT User Manual p.33 p.32 Squiggles TT User Manual 17.0 Product Servicing...

  • Page 34: Technical Information

    Squiggles TT User Manual Squiggles TT User Manual p.33 18.0 Technical Information...
  • Page 35 Squiggles TT User Manual p.35 p.34 Squiggles TT User Manual Table of Symbols Symbol Meaning...
  • Page 36 Squiggles TT User Manual Squiggles TT User Manual p.35 Symbol Meaning...
  • Page 38 Sunrise Medical F: +1.800.561.5834 237 Romina Drive, Unit 3, E: mkt.canada@sunmed.com Concord, ON, L4K 4V3 sunrisemedical.ca Please visit leckey.com for a full list of Leckey distributors. James Leckey Design Limited (+44) 28 9260 0750 19 Ballinderry Road hello@leckey.com Lisburn, BT28 2SA Northern Ireland leckey.com...
