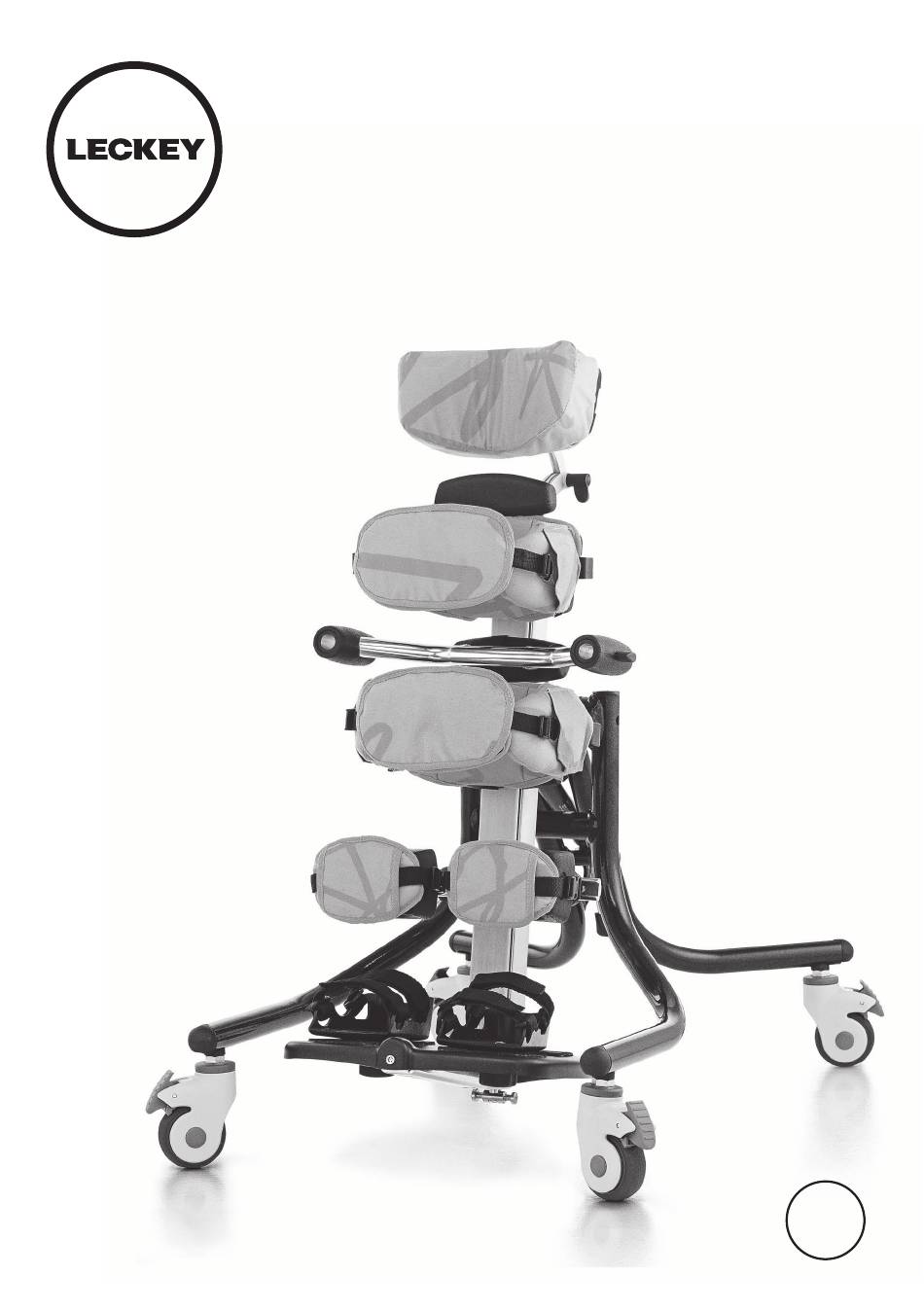

  • Page 1 Squiggles Stander User Manual Supporting English Children...
  • Page 2 Squiggles Stander - User Manual The Squiggles Stander has been designed to offer the support your child needs in an upright, forward leaning (prone) or rearward leaning (supine) standing posture. The stander is modular in design and interfaces with a choice of bases which have been developed for use in school or at home.

  • Page 3: Table Of Contents

    Squiggles Stander - User Manual CONTENTS 01 Intended use 02 Certification 03 Warnings and Cautions 04 Terms of warranty 05 Product history record 06 Product training record 07 Safety information 08 Precautions and Contraindications 09 How to unpack and assemble the Stander...

  • Page 4: Intended Use

    SECTION 02: INTENDED USE CERTIFICATION Intended use The Squiggles Stander is classified as a The devices are intended to assist Class I Medical Device under EU and UK children that cannot stand or maintain a regulations. As the manufacturer, James...

  • Page 5: Warnings And Cautions

    Squiggles Stander - User Manual SECTION 03: WARNINGS AND CAUTIONS 1) WARNING TOPPLING HAZARD adjustments to a minimum. • Never use the product on a sloping • Take care when assembling or surface greater than 5 degrees. adjusting the position of the stander •...

  • Page 6: Terms Of Warranty

    Servicing and repairs are only to be competent person who has been carried out by Leckey-authorised trained in the use of this product. Leckey personnel. recommend that a written record is maintained to provide details of all...

  • Page 7: Product Training Record

    INFORMATION (PARENTS, TEACHERS & CARERS) Always read instructions fully before use. Your Leckey product is a prescribed Class 1 Medical Device and as such Leckey Users should not be left recommend that parents, teachers and unattended at any time whilst carers using the equipment should be using Leckey equipment.
  • Page 8 Squiggles Stander - User Manual This is especially important when The product contains components the support frame is in a reclined which could present a choking position. hazard to small children. Always check that locking knobs and bolts When the product is in use please within the child’s reach are tightened...

  • Page 9: Precautions And Contraindications

    Squiggles Stander - User Manual SECTION 08: PRECAUTIONS AND CONTRAINDICATIONS Precautions Contraindications • Fixed spinal deformities such as • Children experiencing pain or scoliosis or kyphosis discomfort that cannot be resolved by adjustment of support/positioning • Severe muscle contractures • Children with hip/ knee flexion •...

  • Page 10: How To Unpack And Assemble The Stander

    Squiggles Stander - User Manual SECTION 09: HOW TO UNPACK AND ASSEMBLE THE STANDER Check parts Congratulations on purchasing your Safety First Squiggles Stander. When opening the Keep polythene bags box, cut the straps, taking care not to cut away from children.
  • Page 11 UNFOLDING THE PIVOT STANDER TO ITS CHASSIS CHASSIS The Pivot Chassis can be easily folded The Squiggles Stander can be used as a for storage or transportation. To unfold, prone, supine or upright stander and has release the levers shown by pressing...
  • Page 12 Squiggles Stander - User Manual Always make sure the locking pedal is fully engaged before you place the child in the stander. 9.5 ATTACHING STANDER TO MOBILE CHASSIS 9.4 ATTACHING First insert the support frame into the receiver at the base. To do this release...
  • Page 13 Squiggles Stander - User Manual Repeat the process on the opposite side for the other wheel. Always make sure the locking pin is fully engaged before you place the child in the stander. 9.6 ATTACHING THE SUSPENSION SYSTEM To attach the suspension system first attach the base which has the suspension spring attached.
  • Page 14 9.8 ATTACHING THE HEADREST To attach the Leckey head headrest first open the locking lever by pressing the safety button and pulling the handle, then remove the plastic insert from the receiving collar. Then slide the stem...
  • Page 15 Squiggles Stander - User Manual 9.9 INSERTING ATTACHMENT BOLT INTO THE SANDALS Insert the required attachment bolt along with the retention plate . Place a rubber lid on, both, the top and bottom of the sandal. Fasten using the four screws provided.
  • Page 16 Squiggles Stander - User Manual 9.11 ASSEMBLE THE TRAY To attached the arms to the tray brackets, loosen the knob , place the moulding to the inside of the tray plate 9.12 ATTACHING THE so the plastic teeth mesh. Replace the TRAY COVER knob on the outside and secure.
  • Page 17 Squiggles Stander - User Manual 9.13 ATTACHING THE Always use caution to ensure TRAY IN PRONE AND the childs hands or arms do not become trapped when SUPINE inserting the tray. The tray is attached to the stander by inserting the tubes into the receiving brackets.

  • Page 18: Fitting The Cushions

    Squiggles Stander - User Manual SECTION 10: FITTING THE CUSHIONS 10.1 CHEST AND HIP 10.2 LATERAL CUSHIONS CUSHIONS To attach the lateral support padded Place the cushion centrally on the chest/ cushions, simply slide the cushions on hip support plate. Feed the upper tab,...
  • Page 19 Squiggles Stander - User Manual For positional and safety reasons the pelvic harness must be used at all times with the mobile stander. 10.4 PELVIC HARNESS To attach the pelvic harness, simply slide the left and right sides of the harness 10.5 HIP SUPPORT...
  • Page 20 Squiggles Stander - User Manual 10.7 PADDED SPINE CAP To adjust the tension lift the front panel, adjust the straps to the required length and then replace the panel. Place the padded spine cap over the spine of the standing support and place the plastic loops around the adjustment knobs.
  • Page 21 Squiggles Stander - User Manual 10.9 FLAT HEADREST 10.10 FLAT HEADREST LATERALS To attach the headrest cushion, place the cushion onto the head support plate, To attach the headrest lateral covers, then snap the central fastener and two simply slide the covers on with the upper fasteners in place.

  • Page 22: Clinical Setup For Postural Management

    Squiggles Stander - User Manual SECTION 11: CLINICAL SETUP FOR POSTURAL MANAGEMENT The clinical setup of the product should be completed by a technically and clinically competent person who has been trained in the use of the product. Leckey recommend a written record is maintained of all clinical setups for this product.
  • Page 23 Squiggles Stander - User Manual 11.3 ADJUSTING Always use caution to ensure THE CHEST AND HIP fingers do not become trapped when adjusting the SUPPORTS lateral supports. To adjust the chest and hip support rotate knob in a clockwise direction...
  • Page 24 Squiggles Stander - User Manual 11.6 CHEST AND HIP 11.7 ADJUSTING THE SUPPORT HARNESS STERNUM PAD To change the width of the chest The sternum pad can be raised to provide harness, lift the front cover, adjust the additional support to assist thoracic Velcro straps and set to the desired extension.
  • Page 25 Squiggles Stander - User Manual 11.8 ADJUSTING THE HEIGHT, DEPTH AND ANGLE OF THE KNEE CUPS Each knee cup can be positioned independently. To adjust the height, depth and angle of the knee cups, loosen knob , select the height, angle and depth required and retighten the knob securely.
  • Page 26 Squiggles Stander - User Manual 11.11 FLAT HEADREST LATERAL ADJUSTMENT To adjust the width of the laterals loosen plastic knob to desired position and tighten securely. 11.12 SANDALS POSITIONING To position the sandals, simply loosen the knob under the footplate, select the position you require and re-fasten the knob.
  • Page 27 Squiggles Stander - User Manual 11.13 FOOTPLATE ANGLE prone ADJUSTMENT To set the angle to accommodate plantarflexion and dorsiflexion, simply loosen or tighten the allen bolt to set the desired angle. 11.15 PRODUCT CONVERSION – PRONE TO SUPINE To convert the Squiggles Prone Stander...
  • Page 28 Squiggles Stander - User Manual 11.16 ADJUSTING THE 11.17 ADJUSTING THE HEIGHT OF THE TRAY IN DEPTH AND ANGLE OF PRONE AND SUPINE THE TRAY Loosen the adjustment knob on either The height adjustment knobs for the tray side, slide the tubes along the receiving...

  • Page 29: Frequent Adjustments For Daily Use

    7 by a technically and clinically competent person who has been trained in the use of the product. Leckey recommend that a written record is maintained of all parent and carers who have been trained in the use of this product.
  • Page 30 Squiggles Stander - User Manual Always secure the chest and hip support harnesses first before making other adjustments. Always make sure the plastic buckles are fully engaged. 12.4 SANDALS To position the user’s feet in the sandals, secure the Velcro straps provided so the foot is held in place.
  • Page 31 Squiggles Stander - User Manual If the child is wearing sandals or light footwear check the straps to make sure the webbing does not irritate the skin. 12.6 ADJUSTING THE 12.5 ADJUSTING THE DEPTH AND ANGLE OF HEIGHT OF THE TRAY...
  • Page 32 Squiggles Stander - User Manual 12.8 MOBILE CHASSIS Never use the tray to steer or ANGLE ADJUSTMENT push the chair. Do not place hot objects on To adjust the angle of the Mobile chassis the tray, greater than 40 loosen the two plastic knobs. Press the degrees Celsius.
  • Page 33 Squiggles Stander - User Manual 12.9 ADJUSTING THE HEIGHT OF THE SUSPENSION SYSTEM If you purchase a larger set of wheels for your mobile stander you will need to adjust the height of the suspension system. To adjust the height loosen and...
  • Page 34 Squiggles Stander - User Manual 12.13 FOLDING EASEL 12.12 EASEL CHASSIS CHASSIS FOR STORAGE ANGLE ADJUSTMENT The easel chassis can fold flat for storage. Remove the main support frame To adjust the angle of the Easel Chassis from the chassis. Adjust the outer frame loosen the two plastic knobs .

  • Page 35: Cleaning & Care Information

    Squiggles Stander - User Manual SECTION 13: CLEANING & CARE INFORMATION How to Maintain Metal and plastic components When cleaning we recommend that you 1. Soap and water or antibacterial spray use only warm water and a non-abrasive can be used for daily cleaning.

  • Page 36: Daily Product Inspection

    Squiggles Stander - User Manual SECTION 15: SECTION 14: ANNUAL PRODUCT DAILY PRODUCT INSPECTION INSPECTION (Therapists, parents & carers) (Therapist, Technician, LECKEY Product Specialist, Dealer) We recommend that daily visual checks of the equipment are carried Leckey recommend that each product...

  • Page 37: Reissuing Leckey Products

    Squiggles Stander - User Manual SECTION 16: RE-ISSUING LECKEY PRODUCTS Most Leckey products are assessed 5. Visually check the structure of the and ordered to meet the needs of product paying attention to weld an individual user. Before reissuing points on the frame ensuring there...

  • Page 38: Product Servicing

    Squiggles Stander - User Manual SECTION 17: Before re-issuing a product, we recommend it is disinfected using the PRODUCT SERVICING following procedure: Note: Always clean the product first to Servicing of all Leckey products should remove accumulated soiling prior to...

  • Page 39: Technical Information

    Squiggles Stander - User Manual SECTION 18: TECHNICAL INFORMATION Product and Accessory Codes 118-600 Stander support 118-760 Stander covers - green 118-761 Stander covers - orange 118-762 Stander covers - blue 118-763 Stander covers – pink Chassis 118-764 Pivot chassis...
  • Page 40 Squiggles Stander - User Manual SQUIGGLES STANDER DIMENSIONS Dimensions Ages (approx) 1 - 5 Max User Weight 22.5kg 50lbs User Height Min 730mm / 28.5 inches Max 1100mm / 43.3 inches Chest Support Height Min 160mm / 6.25 inches (Distance from footplate to armpit)
  • Page 41 Squiggles Stander - User Manual Dimensions continued Pivot chassis angle range 90 - 160º 90 - 70º Tray height - prone Min 555mm / 21.9 inches Max 825mm / 32.5 inches Tray height - supine Min 480mm / 18.5 inches Max 825mm / 32.5 inches...
  • Page 42 Squiggles Stander - User Manual TABLE OF SYMBOLS Symbol Meaning Medical Device Read the Instructions for Use CE mark Warning Manufacturer Serial number Product code Max occupancy weight Date of Manufacture For indoor use only Latex free...
  • Page 43 Squiggles Stander - User Manual TABLE OF SYMBOLS Symbol Meaning Unique Device Identification Machine wash- water temperature 40°C Tumble dry- low heat Do not iron Do not bleach Handwash Do not dry clean...
  • Page 44 LS168-11...
