Summary of Contents for Leckey Pronestander

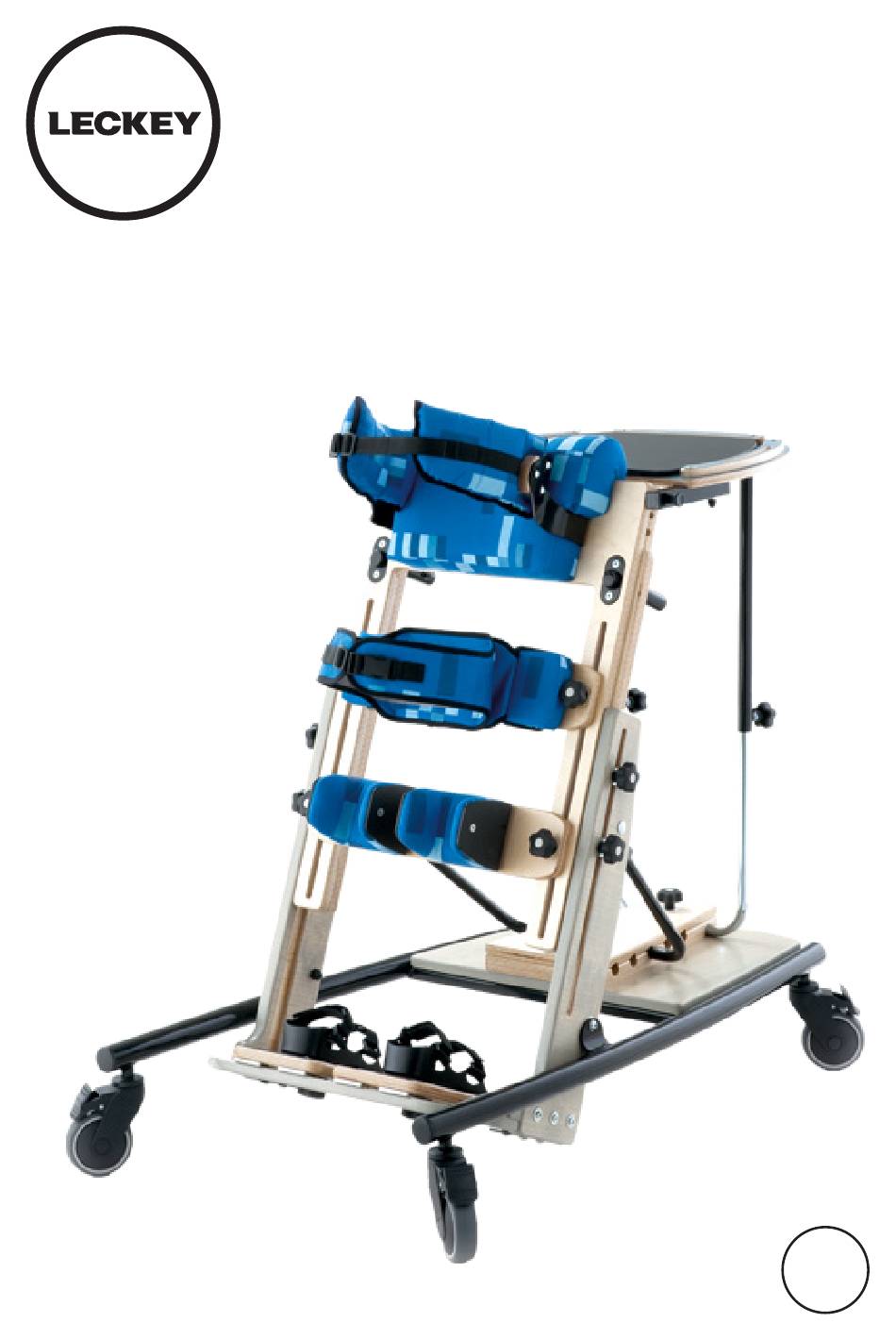

- Page 1 Pronestander User Manual Supporting English Children...
- Page 2 Pronestander User Manual The Leckey Pronestander has been designed to promote weight bearing and mid line symmetry. This manual shows you how you can quickly and easily make use of all the functions. The instructions on the safety and maintenance of the product will ensure that you will enjoy the use of this product for a long time.
- Page 3 Pronestander User Manual p3 CONTENTS Intended use Certification Warnings and Cautions Terms of warranty Product history record Product training record Safety Information Precautions and Contraindication How to unpack and assemble Clinical setup for postural management Frequent adjustments for daily use Cleaning & care information Daily product inspection Annual product inspection Reissuing Leckey products Product servicing Technical information...
-
Page 4: Section 01: Intended Use
Pronestander User Manual SECTION 02: SECTION 01: CERTIFICATION INTENDED USE The Pronestander is classified as Intended use a Class I Medical Device under The devices are intended to EU and UK regulations. As the assist children that cannot stand manufacturer, James Leckey Design or maintain a standing position Limited, declares that this product independently as part of a supported conforms to the Medical Device weight bearing program. Regulation (2017/745), UK Medical Device Regulations 2002, Medial Indications for use Device Directive (93/42 EEC) and EN 12182:2012 Assistive products Pronestander has been designed for for persons with disability, general use at home or school. The range requirements and test methods. of prone angles available allow the gradual increases of weight bearing Notice to the user and/or patient: as tolerance increases. Pronestander... -
Page 5: Section 03: Warnings And Cautions
Pronestander User Manual p5 SECTION 03: WARNINGS AND CAUTIONS 1) WARNING TOPPLING HAZARD carer should strive to keep product • N ever use the product on a sloping adjustments to a minimum. surface greater than 5 degrees. • T ake care when assembling or • A lways check operation of linear drives, adjusting the position of the stander gas struts, and motor drives before use. components that your fingers do • W hen adjusting the stander angle not get pinched when positioning ensure there is adequate access space stander components and tightening on all sides of the product. mountings. • A lways lock casters facing outwards • D uring product assembly and before placing the user in the product. -
Page 6: Section 04: Terms Of Warranty
Pronestander User Manual SECTION 04: wear the fabric components and encourage corrosion on the TERMS OF stander. Only use non-abrasive WARRANTY household cleaners and moist cloths, do not use running water on the upholstery whilst it is still The warranty applies only when attached to the seat. See section the product is used according to Cleaning & care information. the specified conditions and for the intended purposes, following all 8) CAUTION CLEANING POWER manufacturers’ recommendations WASHERS/HOSES (also see general terms of sales, • H oses and power washers are delivery and payment). A three not to be used to clean the year warranty is provided on all product. Standers with the Leckey manufactured products and electric lift system are not sealed components. against running water and may be damaged by water ingress. -
Page 7: Section 06: Product Training Record
Pronestander User Manual p7 SECTION 06: SECTION 07: PRODUCT TRAINING SAFETY RECORD INFORMATION (PARENTS, TEACHERS & CARERS) 1. Always read instructions fully before use. Your Leckey product is a prescribed 2. To improve we recommend Class 1 Medical Device and as such that users should not be left Leckey recommend that parents, unattended at any time whilst teachers and carers using the using Lecky equipment. equipment should be made aware of the following sections of this user 3. Only use Leckey approved manual by a technically competent components with your product. person: Never modify the product in any way. Failure to follow instructions Section 07... - Page 8 Pronestander User Manual put the user into this product. 13. Do not place hot items on the tray greater than 40 degrees 7. When placing the user into a standing frame, for saftey 14. Clean the product regularly. reasons, always secure the pelvic Do not use abrasive cleaners. band first. The chest and knee Carry out maintenance checks straps should then be fastened. on a regular basis to ensure your product is in good working 8. When the product is stationary condition. ensure all castors are locked and facing away from the base as this 15. The product is designed for will improve product stability. indoor use and when not in use should be stored in a dry place 9. Never adjust either the angle of that is not subjected to extremes the Prostander or overall height of temperature. of the chestplate while the frame is in use. Other finer positional 16. The safe operating temperature adjustments may be carried out...
-
Page 9: Section 08: Precautions And Contraindications
Pronestander User Manual p9 SECTION 08: PRECAUTIONS AND CONTRAINDICATIONS Precautions Contraindications • Fixed spinal deformities such as • Children experiencing pain or scoliosis or kyphosis discomfort that cannot be resolved by adjustment of support/positioning • Severe muscle contractures • Children with hip/ knee flexion • Severe muscular or skeletal contracture beyond the limits of the asymmetry including hip dislocation stander • Progressive and muscle wasting All precautions and contraindications conditions are taken at the discretion of the prescribing clinician or parent. • High risk or recent history of bone Leckey recommends a trained and fractures experienced clinician to be present • High risk of pressure related injury or... -
Page 10: Section 09: How To Unpack And Assemble
Pronestander User Manual SECTION 09: 9.1 SETTING THE HOW TO UNPACK ANGLE AND ASSEMBLE In order to fix the Pronestander at the desired angle, you should firstly hold the chest plate and gently Check Parts swing the main frame of the stander Congratulations on purchasing your upright. Then loosen the three bolts Leckey Pronestander. When you as shown and the angle adjuster receive your Pronestander it will bar can then be positioned to be boxed and packed flat. The tray the desired angle. The plate should will be in a separate parcel. The then be placed back into position and Pronestander will come as standard the three bolts re-attached and with chest plate including flexible tightened securely. laterals, knee plate, pelvic plate including belt, hinged foot plate, Never attempt to adjust the... - Page 11 Pronestander User Manual p11 9.2 ATTACHING 9.3 ATTACHING THE THE TRAY SANDALS Insert the required attachment bolt The Pronestander tray is attached by sliding the outer poles already along with the retention plate attached to the tray over the inner Place a rubber lid on, both, the top poles already attached to the frame and bottom of the sandal. Fasten using the four screws provided. To and then tightening the bolts . The tray is then secured with a tray pin remove or replace the attachment bolt, reverse this process. into one of the slots on the side of the frame.
-
Page 12: Section 10: Clinical Setup For Postural Management
Pronestander User Manual Insert the required attachment bolt SECTION 10: along with the retention plate CLINICAL SETUP . Place a rubber lid on, both, the FOR POSTURAL top and bottom of the sandal. Fasten using the four screws provided. To MANAGEMENT remove or replace the attachment bolt, reverse this process. The clinical setup of the product Place the sandal so that the should be completed by a technically attachment bolt goes through the and clinically competent person slot in the footplate. To secure, on who has been trained in the use of the underside of the footplate place the product. Leckey recommend a the rubber washer , followed by written record is maintained of all the metal washer and then the clinical setups for this product. knob onto the attachment bolt. To position the sandals simply loosen the knob under the footplate, select the position you require and re-fasten the knob. -
Page 13: Setting The Angle
Pronestander User Manual p13 10.2 ADJUSTING 10.1 SETTING THE HEIGHT OF THE THE ANGLE CHEST PLATE There is a choice of five different angle positions on the Pronestander. You should firstly measure the Depending on the user’s tolerance to distance from the user’s feet to just standing, you can choose to position under their arms. This is best done them anywhere from a very prone where practical in a lying down angle to almost upright. position on a mat. The height between Once you have selected the desired the top of the chest plate and sandals angle, you can set up the rest of the should be set to the equivalent of Pronestander to suit the user. this distance. The height of the chest plate can then be altered by loosening the knobs on the side of the frame. Ensure angle adjuster bar is Once loosened, this will allow the secure before placing user whole inner section (including chest in the Pronestander. - Page 14 Pronestander User Manual 10.4 ADJUSTING THE KNEE PLATE The height of the knee plate is adjusted by loosening the bolts on each side of the knee plate, sliding the knee plate into the required position and then re-tightening the bolts securely. 10.3 ADJUSTING THE Minor adjustments to the knee and pelvic plate may PELVIC PLATE be made during use. Always use caution to ensure The height of the pelvic plate is set fingers do not become trapped to the equivalent distance between when adjusting the knee plate. the top of the user’s pelvis and their feet. The pelvic plate is adjusted by loosening the bolt, on each side of the plate and sliding the padded plate into the required position. Once the required position is obtained, the bolts, should be re-tightened securely. 10.5 ADJUSTING THE...
- Page 15 Pronestander User Manual p15 required, then re-tighten the bolt Always secure the pelvic securely. band and safety strap first then the chest strap Always use caution to and the users feet ensure fingers do not become trapped when adjusting the knee cups. 10.6 ATTACHING THE PELVIC BAND The pelvic band should be attached to the user first, again if practical on a mat. The pelvic straps are attached around the user’s pelvis and the longer straps are slipped through the D-Rings on the pelvic plate and secured firmly behind the user with Velcro on the belt. To ensure that you can easily identify the strap that goes around the user and the one that attaches to the frame, a Leckey label is sewn on to the one that goes around the frame.
-
Page 16: Section 11 Frequent Adjustments For Daily Use
Pronestander User Manual SECTION 11 11.1 TRANSFERRING FREQUENT THE USER INTO AND ADJUSTMENTS OUT OF THE STANDER FOR DAILY USE Before transferring the child into the stander carry out the daily product Parents and carers should be shown inspection as outlined in section 13 of how to make frequent adjustments this user manual. Before transferring and made aware of the safety checks the child into the product lock all in section 7 by a technically and the castors, ensuring that they are clinically competent person who facing outwards to maximise product has been trained in the use of the stability. Make sure the straps on the product. Leckey recommend that a chest, hip support harnesses and written record is maintained of all sandals are released and out of the parent and carers who have been way to facilitate transfer. - Page 17 Pronestander User Manual p17 11.3 FLEXIBLE secure the Velcro straps provided so the foot is held in place. The straps LATERAL SUPPORT should be placed over the bridge of ADJUSTMENT the foot and over the toes. The front strap can be fed through one of two The Pronestander flexible lateral slots on either side of the sandals, supports can be adjusted in and out depending on the size of the user’s by loosening the bolt on the back of feet (photo 2). the chest plate. Once this bolt has been loosened, the flexible lateral If the child is wearing supports can be adjusted to the sandals or light footwear required position and once in position check the straps to make the bolts should be re-tightened sure the webbing does securely. The flexible laterals also not irritate the skin. have a small amount of height adjustment.To alter the height loosen the allen bolts , position the laterals as required and then re-tighten the allen bolts securely. The flexible lateral supports are secured around the user by tightening the safety strap into position. Fasten the safety strap...
- Page 18 Pronestander User Manual 11.5 ATTACHING THE PELVIC BAND The pelvic band should be attached to the user first, again if practical on a mat. The pelvic straps are attached around the user’s pelvis. The longer straps are slipped through the D-Rings on the pelvic plate and secured firmly behind the user with 11.4 ADJUSTING Velcro on the belt. To ensure that THE TRAY you can easily identify the strap that goes around the user and the one that attaches to the frame, a Leckey The tray can be height and angle label is sewn on to the one that goes adjusted by loosening the bolts around the frame. on the tray poles, adjusting to the required position and then re- tightening the bolts securely. The Always secure the pelvic position of the tray can also be altered band and safety strap first in relation to the chest plate. One of then the chest strap and three positions can be selected to help the users feet. facilitate good hand function.
-
Page 19: Section 12: Cleaning & Care Information
Pronestander User Manual p19 SECTION 12: CLEANING & CARE INFORMATION How to Maintain Metal, plastic and wooden components When cleaning the product we recommend that you use only warm 1. Soap and water or antibacterial water and a non-abrasive detergent. spray can be used for daily Never use organic solvents or dry cleaning. cleaning fluids. 2. For deep cleaning a low pressure Upholstery and fabrics steam cleaner can be used. 1. The upholstery and fabrics can be 3. Do not use solvents to clean cleaned by hand whilst in place. plastic wooden or metal When cleaning we recommend components. -
Page 20: Section 13: Daily Product Inspection
Pronestander User Manual SECTION 13: SECTION 14: DAILY PRODUCT ANNUAL PRODUCT INSPECTION INSPECTION (Therapists, parents & carers) (Therapist, Technician, Leckey We recommend that daily visual Product Specialist, Dealer) checks of the equipment are carried Leckey recommend that each product out by therapists, carers or parents should be subject to a detailed to ensure the product is safe for use. inspection at least once a year and The recommended daily checks are every time the product is reissued detailed below. for use. This inspection should be 1. Ensure all adjustment knobs are carried out by a technically competent in place and secure. person who has been trained in the use of the product and should include 2. Check all upholstery and velcro... -
Page 21: Section 15: Re-Issuing Leckey Products
Pronestander User Manual p21 SECTION 15: RE-ISSUING LECKEY PRODUCTS 3. Visually check the structure of Most Leckey products are assessed the product paying attention to and ordered to meet the needs of weld points on the frame ensuring an individual user. Before reissuing there are no signs of fatigue or a product we recommend that the cracking around the welds. therapist prescribing the product has carried out an equipment 4. Leckey recommend that a written compatibility check for the new record is maintained of all annual user and has ensured that the product inspections. product being re-issued contains no modifications or special attachments. A detailed technical inspection should be carried on the product prior If in any doubt to the to re-issuing. This should be carried continued safe use of your out by a technically competent Leckey product or if any person who has been trained in the parts should fail, please use and inspection of the product. cease using the product... -
Page 22: Section 16: Product Servicing
Pronestander User Manual SECTION 16: PRODUCT SERVICING Servicing of all Leckey products 1. Where possible, we recommend should only be carried out by the use of an automated “fogger” technically competent persons who disinfection system that is used have been trained in the use of the to completely cover the product product. surfaces with a disinfectant agent. The manufacturer’s All international service enquiries instructions for the chosen should be directed to the appropriate system should be referred to prior Leckey distributor who will be to use and followed exactly. delighted to assist you. For further information on Leckey distributors 2. Where an automated disinfection please visit our website system is not available, all www.leckey.com. product surfaces should be wiped over with disinfectant surface wipes or liquid disinfectant on a soft cloth. Suitable products are 70% IPA, 70% Alcohol or diluted bleach. The manufacturer’s If in any doubt to the continued... -
Page 23: Section 17: Technical Information
Pronestander User Manual p23 SECTION 17: TECHNICAL INFORMATION # Please select a size The Pronestander comes in 2 fabrics. Size 1 comes as standard in Meadow fabric and size 2 and 3 in Mondeo blue fabric. Head Support Options are available with this product please contact customer care team or local dealer for further information. PRODUCT CODES LPS/#/ Pronestander ACCESSORY CODES LPS/#/G Grab/suspension Rail LPS/1/B-XX Size 1 Pelvic Band-XX LPS/1/B2-XX LPS Pelvic Band extended by 8” - size 1-XX LPS/1/B1-XX LPS Pelvic Band extended by 4” - size 1-XX LPS/2/B-XX Size 2 Pelvic Band-XX LPS/2/B2-XX LPS Pelvic Band extended by 8” - size 2-XX LPS/2/B1-XX LPS Pelvic Band extended by 4” - size 2-XX... -
Page 24: Section 18: Technical Data
Pronestander User Manual SECTION 18: TECHNICAL DATA Product Sizing Size 1 – 5 4 – 9 1/2 9 – 17 Codes LPS/1 LPS/2 LPS/3 inches inches inches Chest Plate Height 18.5 1350 Base length 1070 1270 width Activity Tray... - Page 25 Pronestander User Manual p25 TABLE OF SYMBOLS Symbol Meaning Medical Device Read the Instructions for Use CE mark Warning Manufacturer Serial number Product code Max occupancy weight Date of Manufacture For indoor use only Latex free...
- Page 26 Pronestander User Manual Symbol Meaning Unique Device Identification Machine wash- water temperature 50°C Tumble dry- low heat Cool iron Do not dry-clean...
- Page 27 Pronestander User Manual p27 NOTES...
- Page 28 LS164-08...
