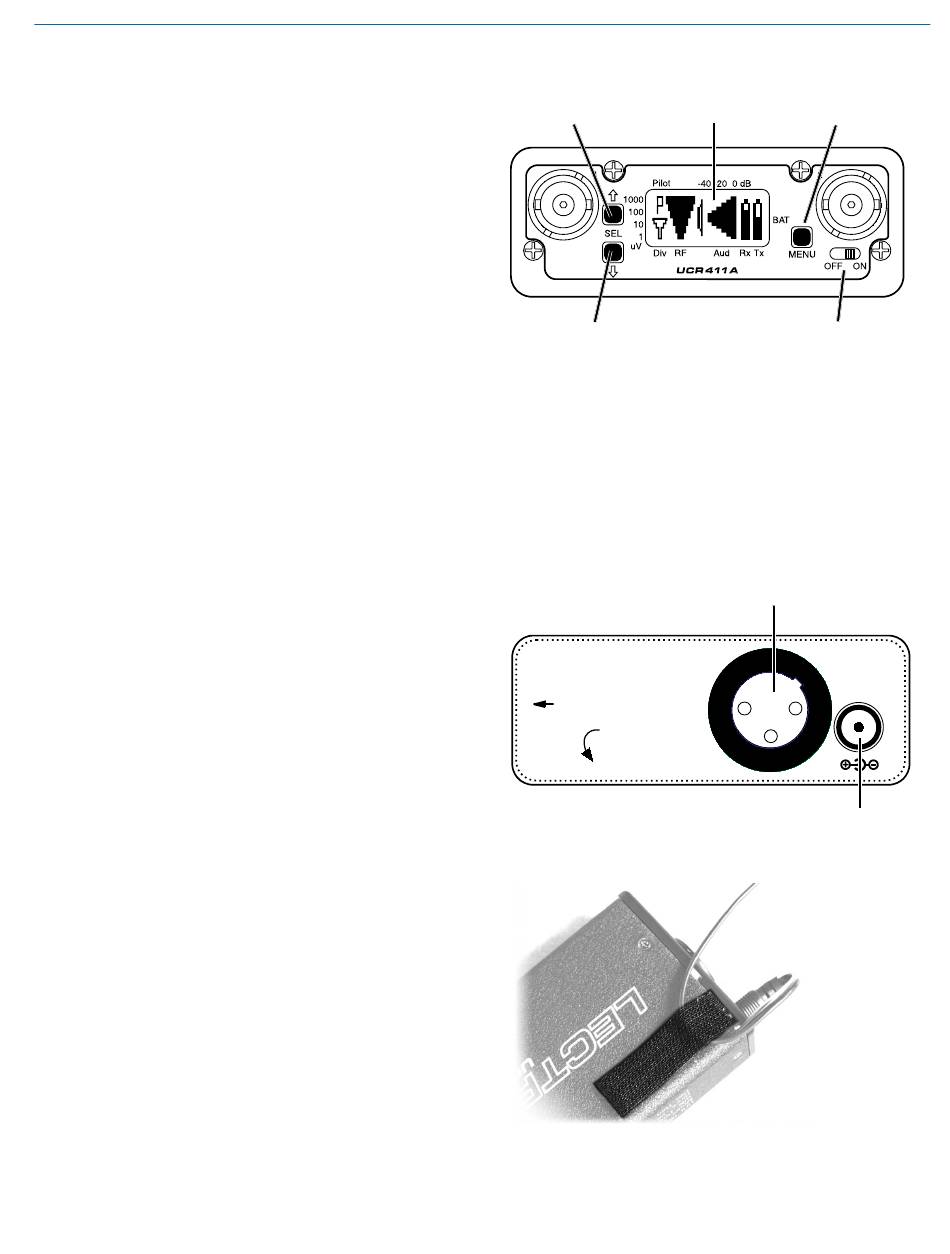

Front Panel Controls and Functions

LCD Screen

The LCD Screen is a graphics-type Liquid Crystal
Display that is used to monitor system operation and
configure the UCR411A.

MENU Button

The MENU button steps through the four primary win-
dows and setup screens.

SELECT Up/Down Buttons

The SELECT Up/Down buttons are used to select vari-
ous options within each display selection and to set the
operating frequency of the receiver.

Power ON/OFF Switch

The Power ON/OFF switch is used to apply battery or
external power to the unit.

Rear Panel Features

XLR Audio Output Jack

This is a standard XLR configuration with pin 2 "posi-
tive" with reference to hand-held and plug-on transmit-
ters. With lavaliere microphones and belt-pack trans-
mitters, however, phase will vary with different types of
microphones (2-wire vs. 3-wire for example). The audio
output is balanced but not floating, so an unbalanced
signal is available using pin 1 as ground and pin 2 as
signal, leaving pin 3 open.

Power Input Jack

The power input jack can accept 10-18 VDC - the
center pin is positive and sleeve is ground. The input
is diode protected to prevent damage if the power is
applied with reversed polarity, but the unit will not work
until the reversed polarity condition is fixed. The small
Velcro strip can be used as a strain relief and retainer
on the power cable to avoid accidental disconnection.
Attach the adhesive strip side to the side of the receiver
or mount with the opening end of the strip up - place the
cable in the strip and secure.
Rio Rancho, NM
UHF Digital Hybrid Wireless™ Receiver
SELECT Up Button LCD Screen
SELECT Down Button
BATTERY DOOR AUDIO
OUT
To open lift
this edge and
turn door
MENU Button
Power ON/OFF Switch
Audio Output Jack
10-18
VDC
1 2
3
Power Input Jack
