Chapter 4 _______________________________________________________________ Installation
VAISALA ______________________________________________________________________ 117

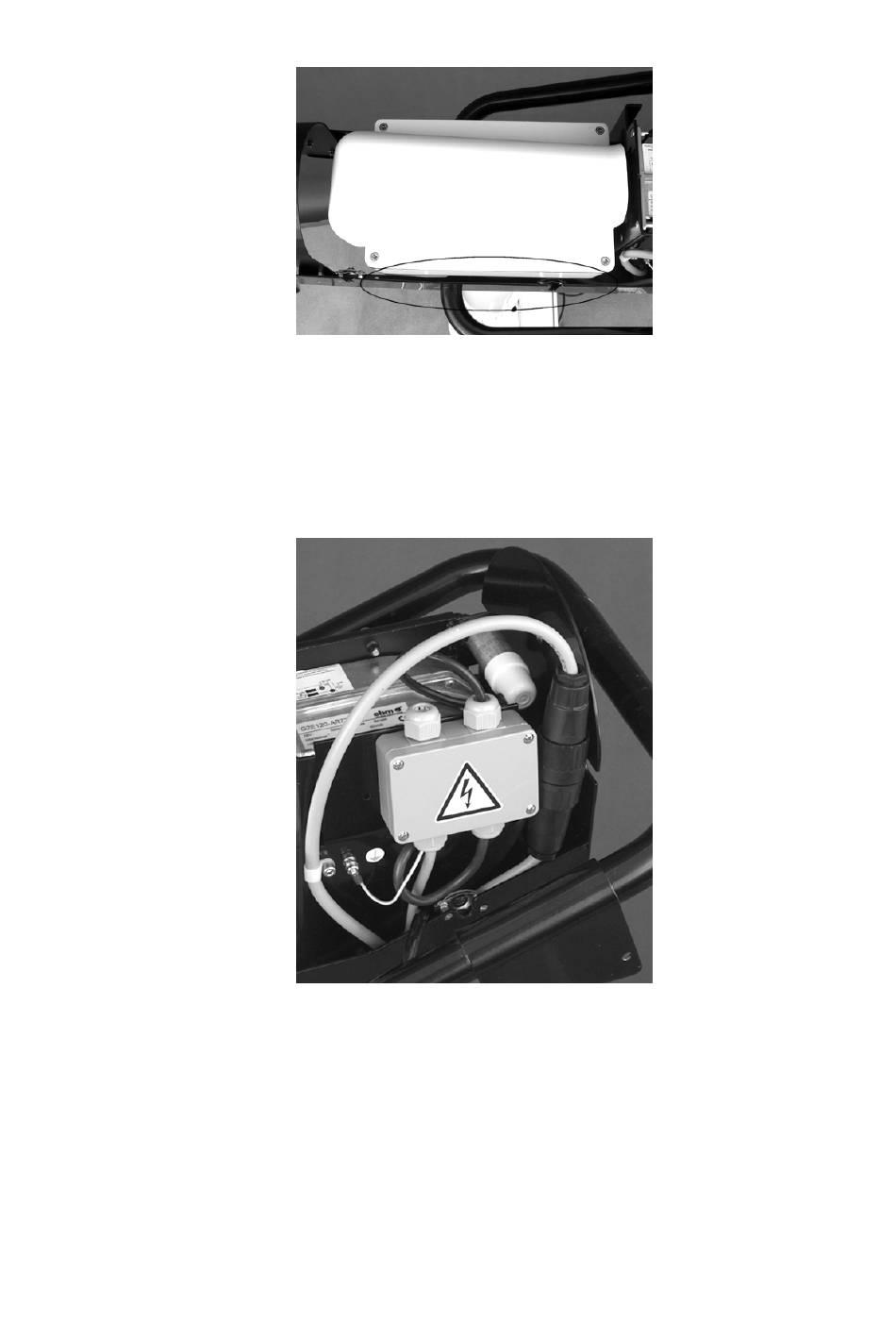

Figure 76
10. Connect the measurement unit cable plug with the cable socket
from the support unit.
11. Place the connectors at the rear of the support unit right side from
the small junction box. For an illustration, see Figure 77 below.
Figure 77
12. Place the ladder behind the transmitter and check the parallel
position again.
13. Then tighten the fastening screws (hex-socket, size 4) on the right
side of the measurement unit which are now accessible through the
mast adapter of the support unit. See Figure 78 on page 118.
Parallel Position of Measurement Unit
Final Connector Position for Measurement Unit
0401-096
0401-097
