3. Remove the
microSD
4. Remove the
base
cover.
5. Remove the
display
assembly.
6. Remove the
display
bezel.
7. Remove the
display
panel.
About this task

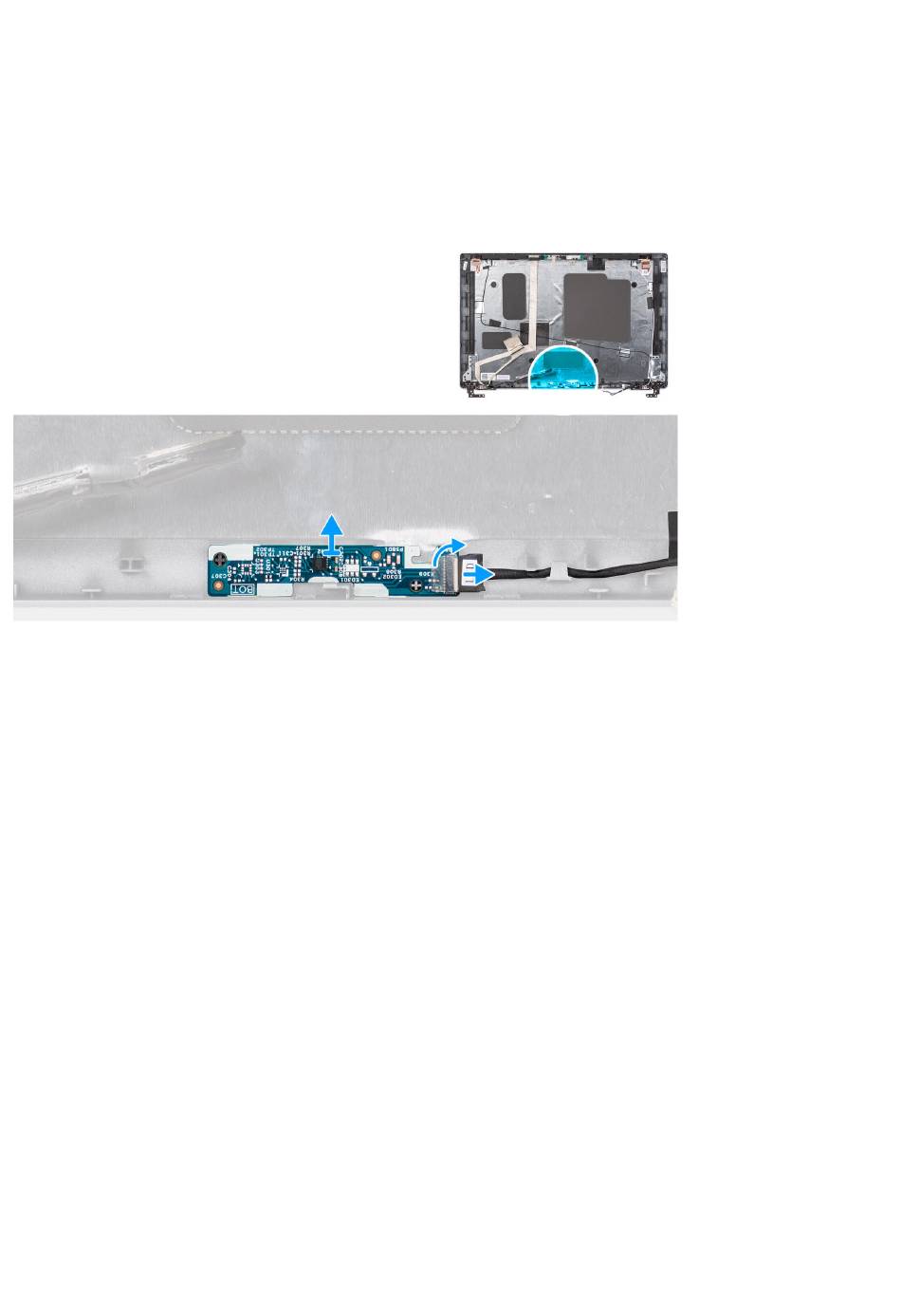

The following images indicate the location of the sensor board and provide a visual representation of the removal procedure.
Steps
1. Open the latch and disconnect the display cable from connector on the sensor board.
2. Gently lift the sensor board away from the display back cover.
Installing the sensor board
About this task
The following images indicate the location of the sensor board and provide a visual representation of the removal procedure.
card.
Removing and installing components
81
