Keyboard bracket

Removing the keyboard bracket

Prerequisites
1. Follow the procedure in
2. Remove the SIM card.
3. Remove the microSD
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the battery.
8. Remove the system fan.
9. Remove the assembly inner
10. Remove the system board.
11. Remove the keyboard
About this task

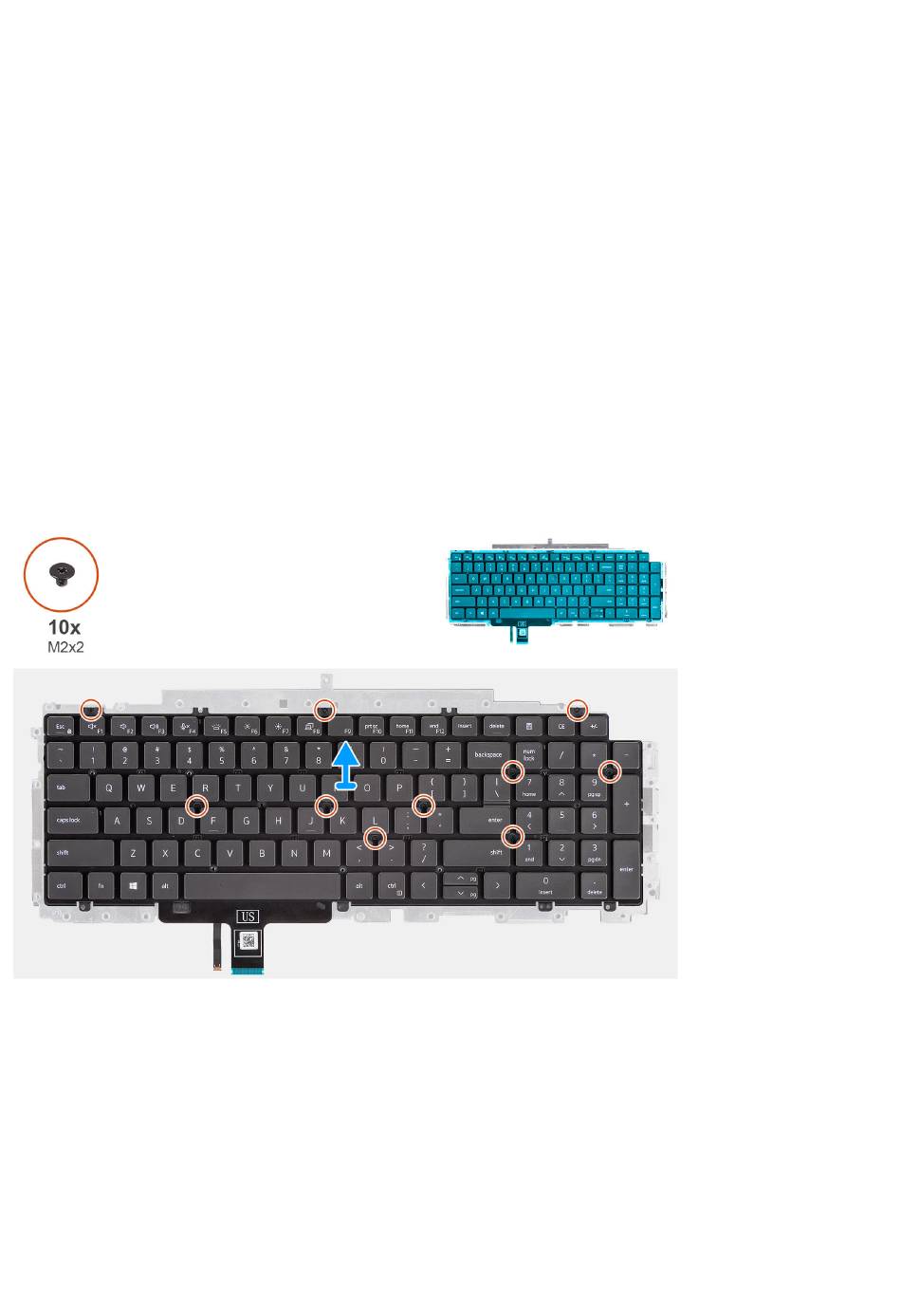

The following images indicate the location of the keyboard bracket and provide a visual representation of the removal procedure.
Steps
1. Remove the ten screws (M2x2) that secure the keyboard to the keyboard bracket.
2. Remove the keyboard from the keyboard bracket.

Installing the keyboard bracket

Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
64 Removing and installing components
Before working inside your
card.
frame.
assembly.
computer.
