Steps

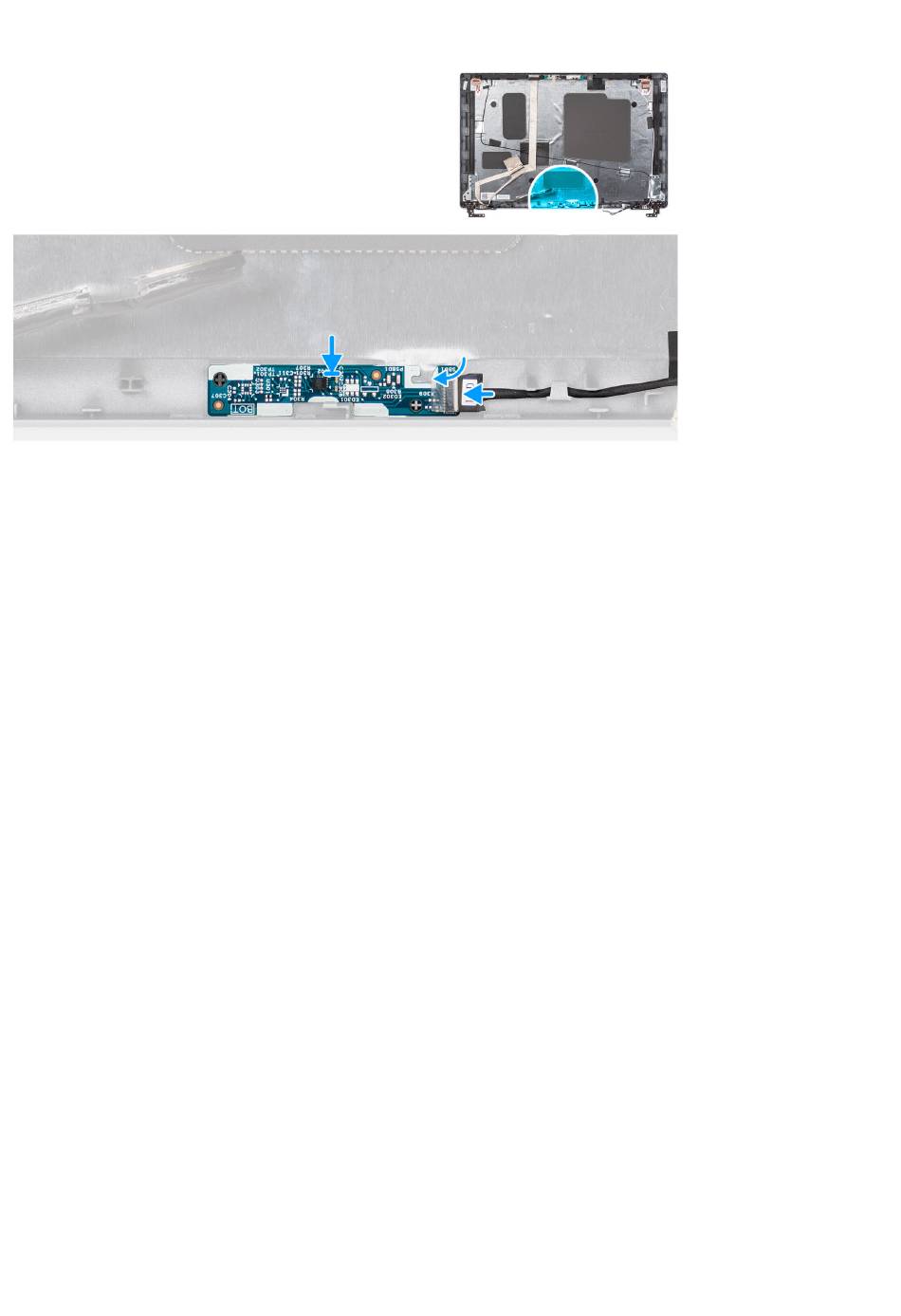

1. Align and place the sensor board on the display back cover.
2. Connect the display cable to the connector on the sensor board and close the latch.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the base cover.
5. Install the microSD card.
6. Install the SIM card.
7. Follow the procedure in

Display hinges

Removing the display hinges

Prerequisites
1. Follow the procedure in
2. Remove the SIM card.
3. Remove the microSD
4. Remove the base cover.
5. Remove the display assembly.
6. Remove the display bezel.
7. Remove the display panel.
About this task
The following images indicate the location of the display hinges and provide a visual representation of the removal procedure.
82 Removing and installing components
After working inside your
Before working inside your
card.
computer.
computer.
