Battery Cable; Removing The Battery Cable - Dell Precision 3560 Service Manual

Steps

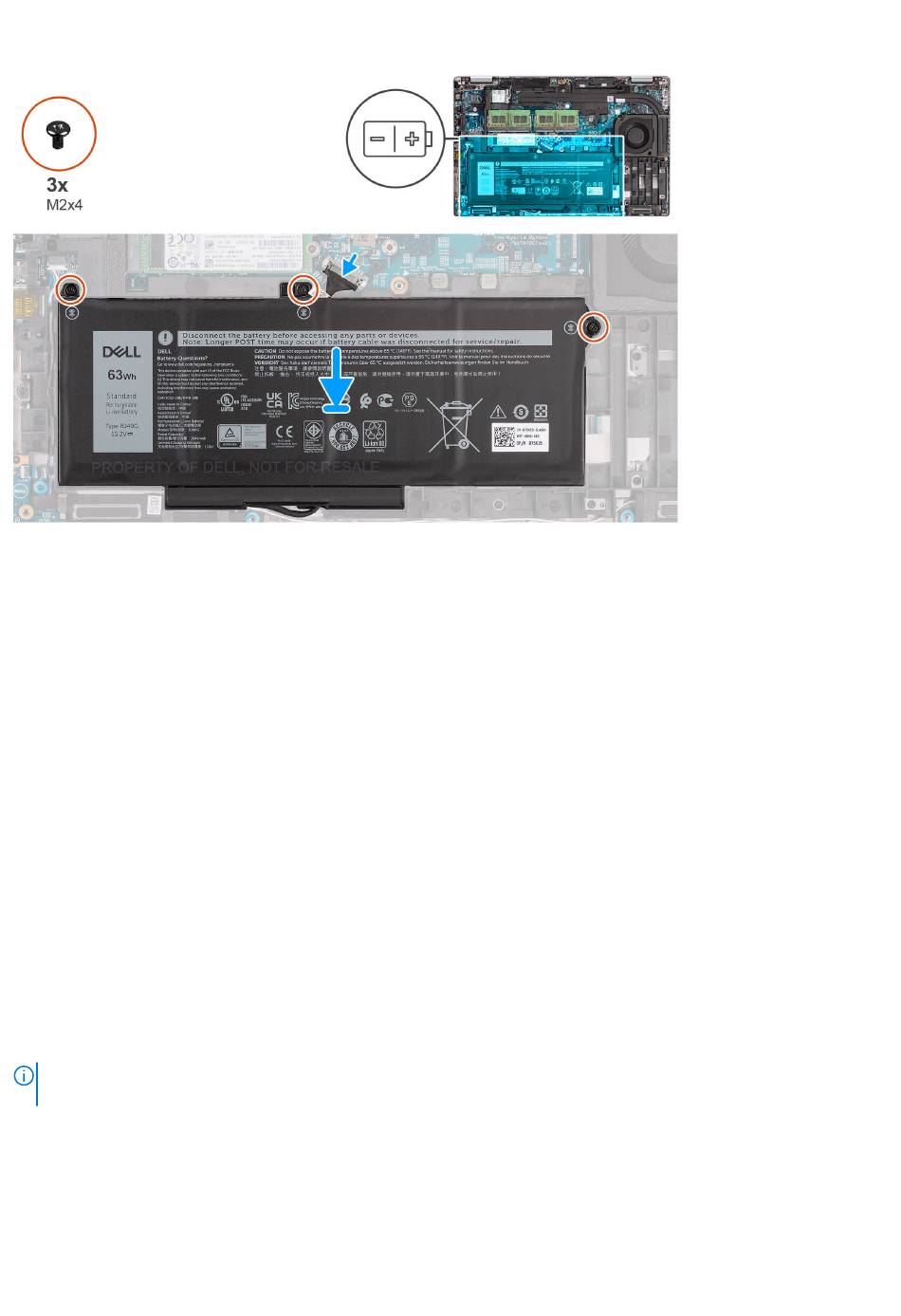

1. Align and place the battery from the left side on the computer.
2. Replace the three screws (M2x4) that secure the battery to the palm-rest assembly and keyboard assembly.
3. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Install the SIM card.
4. Follow the procedure in

Battery cable

Removing the battery cable

Prerequisites
1. Follow the procedure in
2. Remove the SIM card
3. Remove the microSD
4. Remove the base cover.
5. Remove the battery.
NOTE: If battery is disconnected from system board for service, then there is a delay during system boot-up as the system
undergoes RTC battery reset.
About this task
The following images indicate the location of the battery cable and provide a visual representation of the removal procedure.
36 Removing and installing components
