Installing The 3-Cell Battery - Dell Precision 3560 Service Manual

Steps
1. Disconnect the battery cable from the system board, if it was not disconnected earlier.
2. Remove the two screws (M2x4) that secure the battery to the palm-rest assembly and keyboard assembly.
3. Lift the battery off the palm-rest assembly and keyboard assembly.

Installing the 3-cell battery

Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

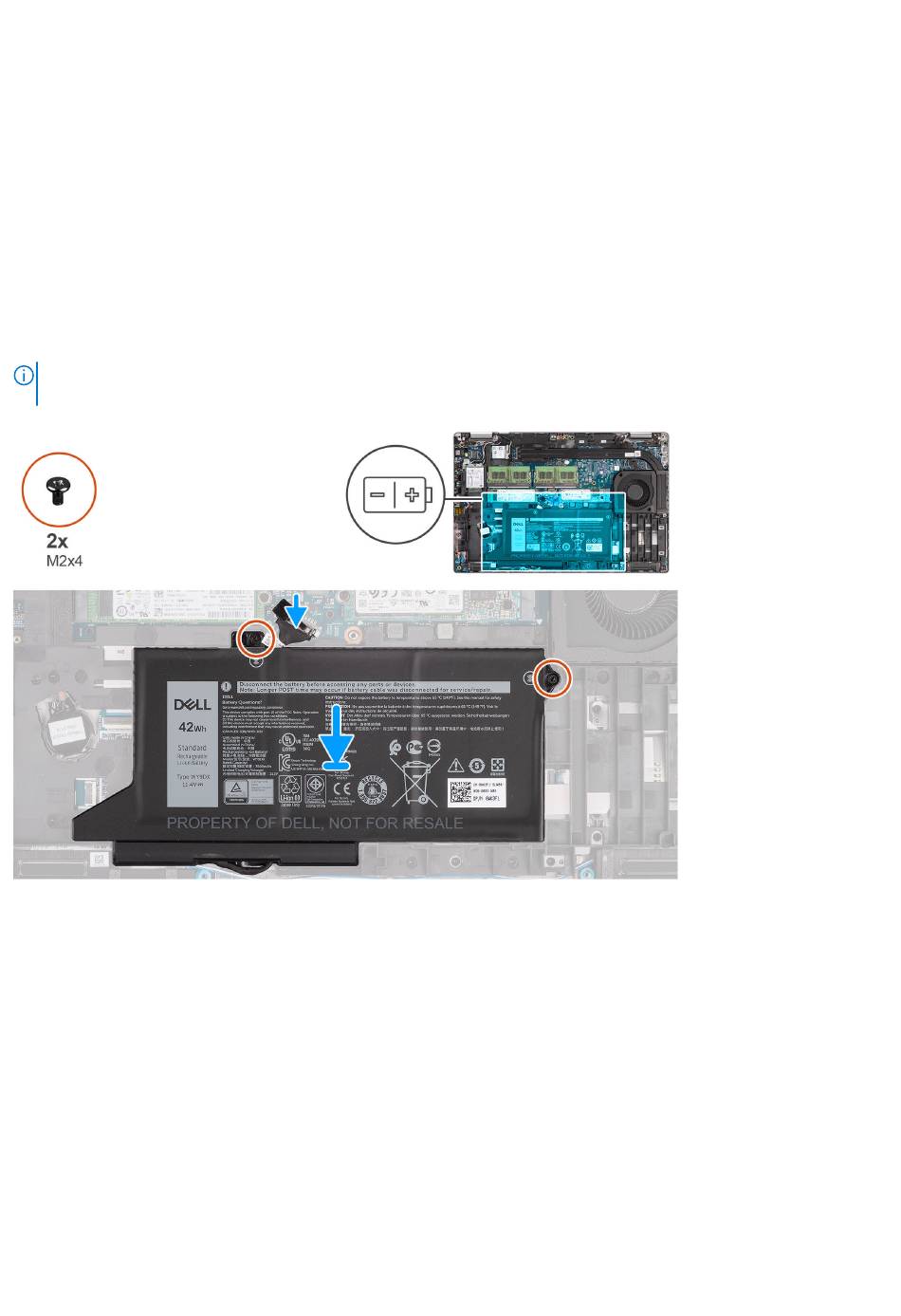

The following image indicates the location of the 3-cell battery and provides a visual representation of the installation procedure.
NOTE: If battery is disconnected from system board for service, then there is a delay during system boot-up as the system
undergoes RTC battery reset.
Steps
1. Align and place the battery from the left side on the computer.
2. Replace the two screws (M2x4) that secure the battery to the palm-rest assembly and keyboard assembly.
3. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Install the SIM card.
4. Follow the procedure in
34 Removing and installing components
After working inside your computer.
