Steps

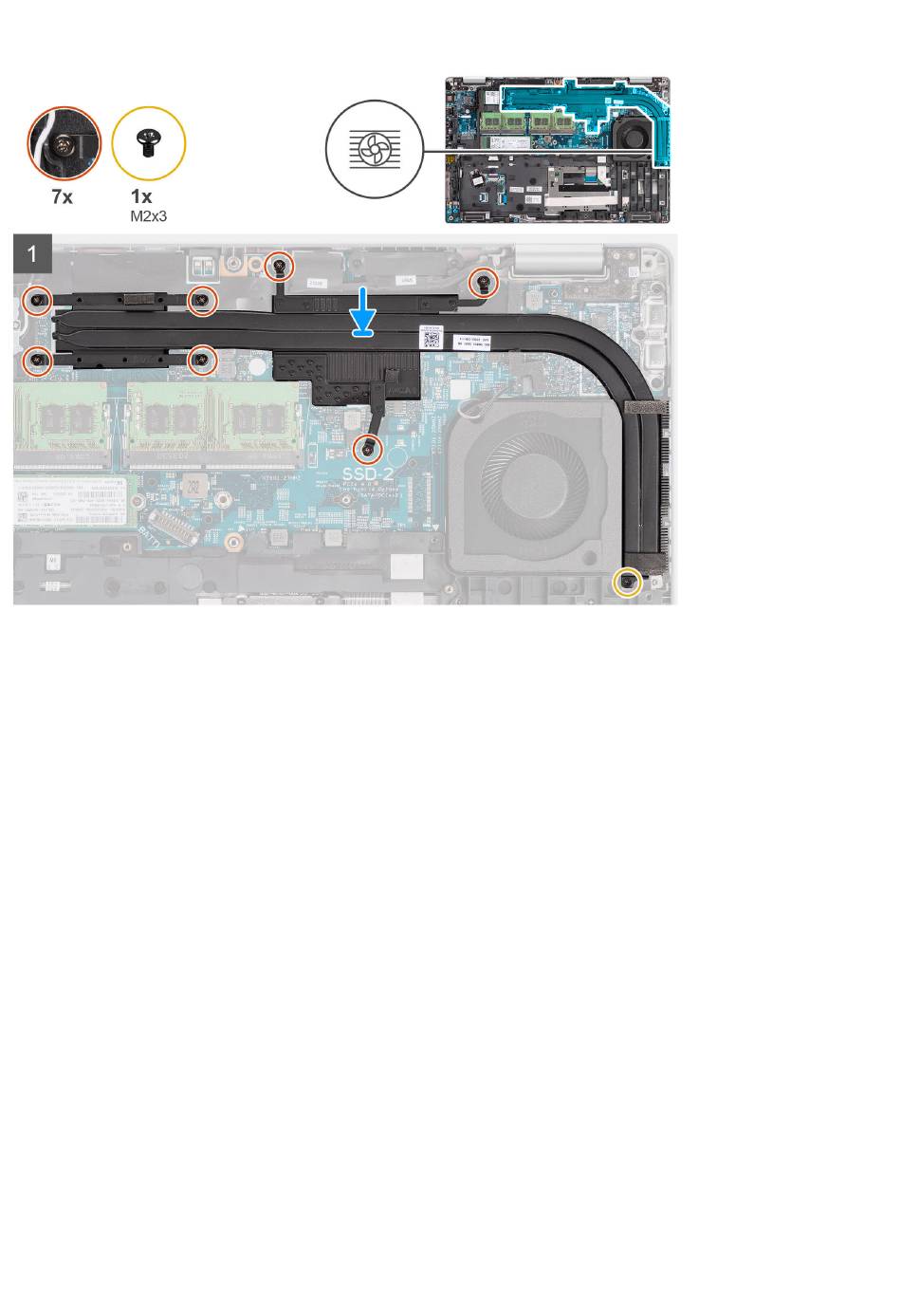

1. Align the screw holes on the heat sink with the screw holes on the system board.
2. Tighten the seven captive screws that secure the heat sink to the system board.
3. Replace the screw (M2x3) that secures the heat sink to the palm-rest assembly.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the microSD card.
4. Install the SIM card.
5. Follow the procedure in

Speakers

Removing the speaker

Prerequisites
1. Follow the procedure in
2. Remove the SIM card.
3. Remove the microSD
4. Remove the base cover.
5. Remove the battery.
6. Remove the assembly inner
50 Removing and installing components
After working inside your
Before working inside your
card.
frame.
computer.
computer.
