About this task

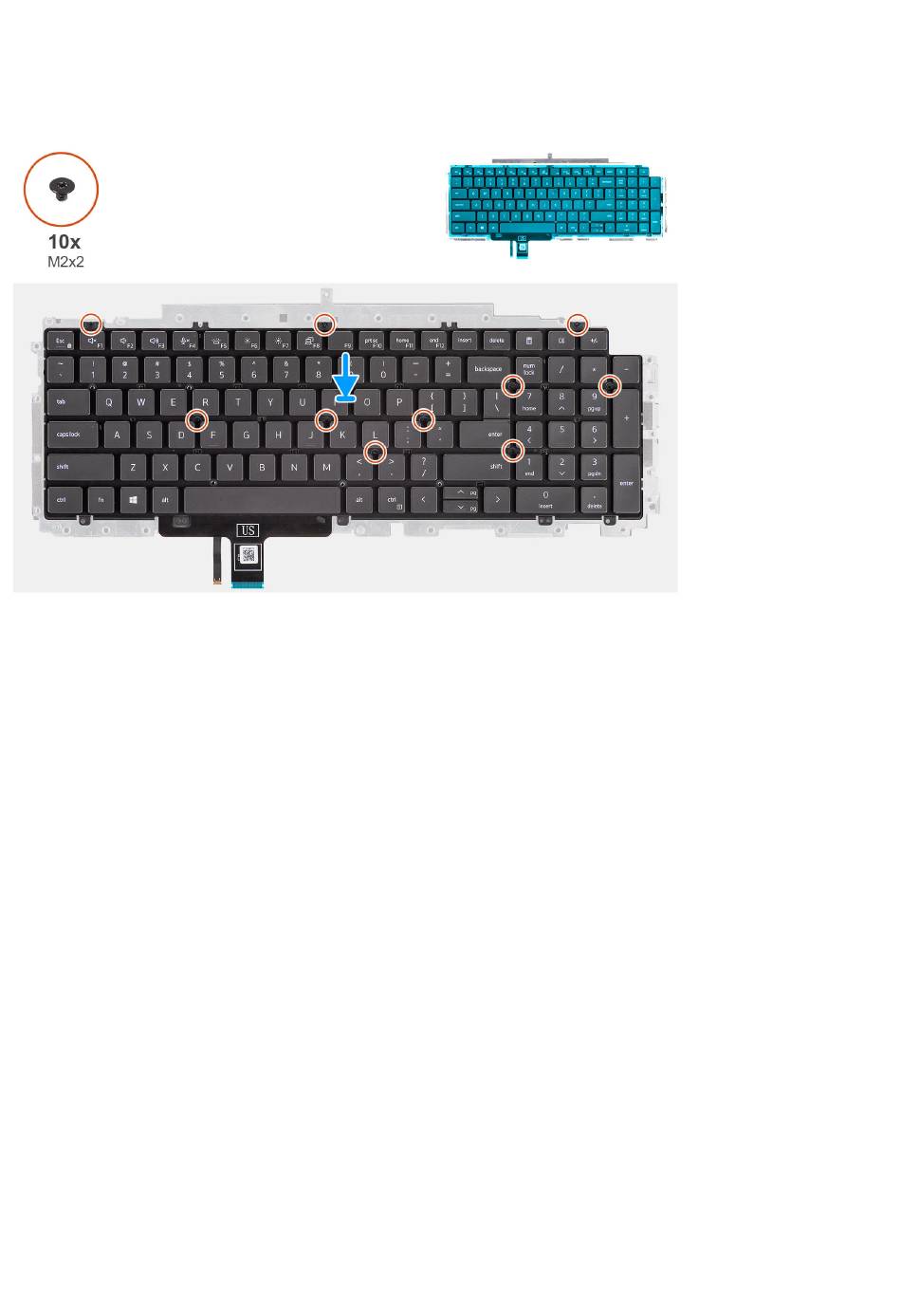

The following image indicates the location of the keyboard bracket and provides a visual representation of the installation
procedure.
Steps
1. Align and place the keyboard on the keyboard bracket.
2. Replace the ten screws (M2x2) to secure the keyboard to the keyboard bracket.
Next steps
1. Install the keyboard assembly.
2. Install the system board.
3. Install the assembly inner
4. Install the system fan.
5. Install the battery.
6. Install the WWAN card.
7. Install the WLAN card.
8. Install the base cover.
9. Install the microSD card.
10. Install the SIM card.
11. Follow the procedure in

Display assembly

Removing the display assembly

Prerequisites
1. Follow the procedure in
2. Remove the SIM card.
3. Remove the microSD
4. Remove the base cover.
frame.
After working inside your
Before working inside your
card.
computer.
computer.
