Adjustments

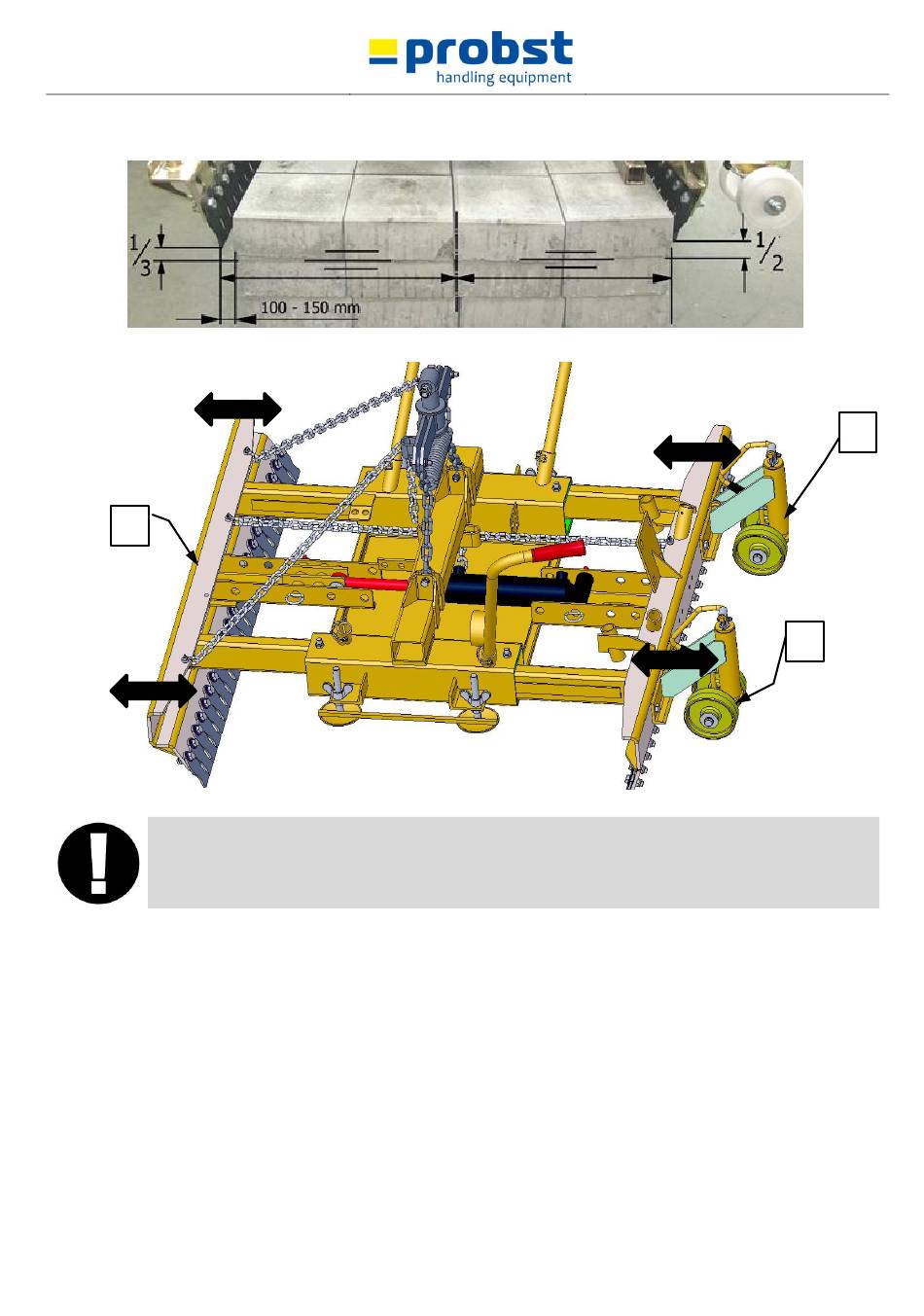

Pull at the main gripping (2) and the rollers (4) in the required position (depending on the stone layer lenght) to adjust the
main clamping (see Fig. 12 and Fig. 13).
2
After adjusting to the stone layer length, the gripping jaw has to be secured again. Plug in the plug bolts and
place the linch pins on the machine side and the laying side!
5140.0035
Fig. 12
Fig. 13
V2
21 / 34
4
4
GB
