Installation

4 Installation
4.1

Mechanical connection

Use only original accessories, in case of doubt consult the manufacturer.
Take care that the carrying capacity / working load limit (WLL) of the lifting device/carrier is not exceeded,
through the load of the device, the attaching devices (turning device, fork sleeves etc.) and the additional
load of the gripping goods!

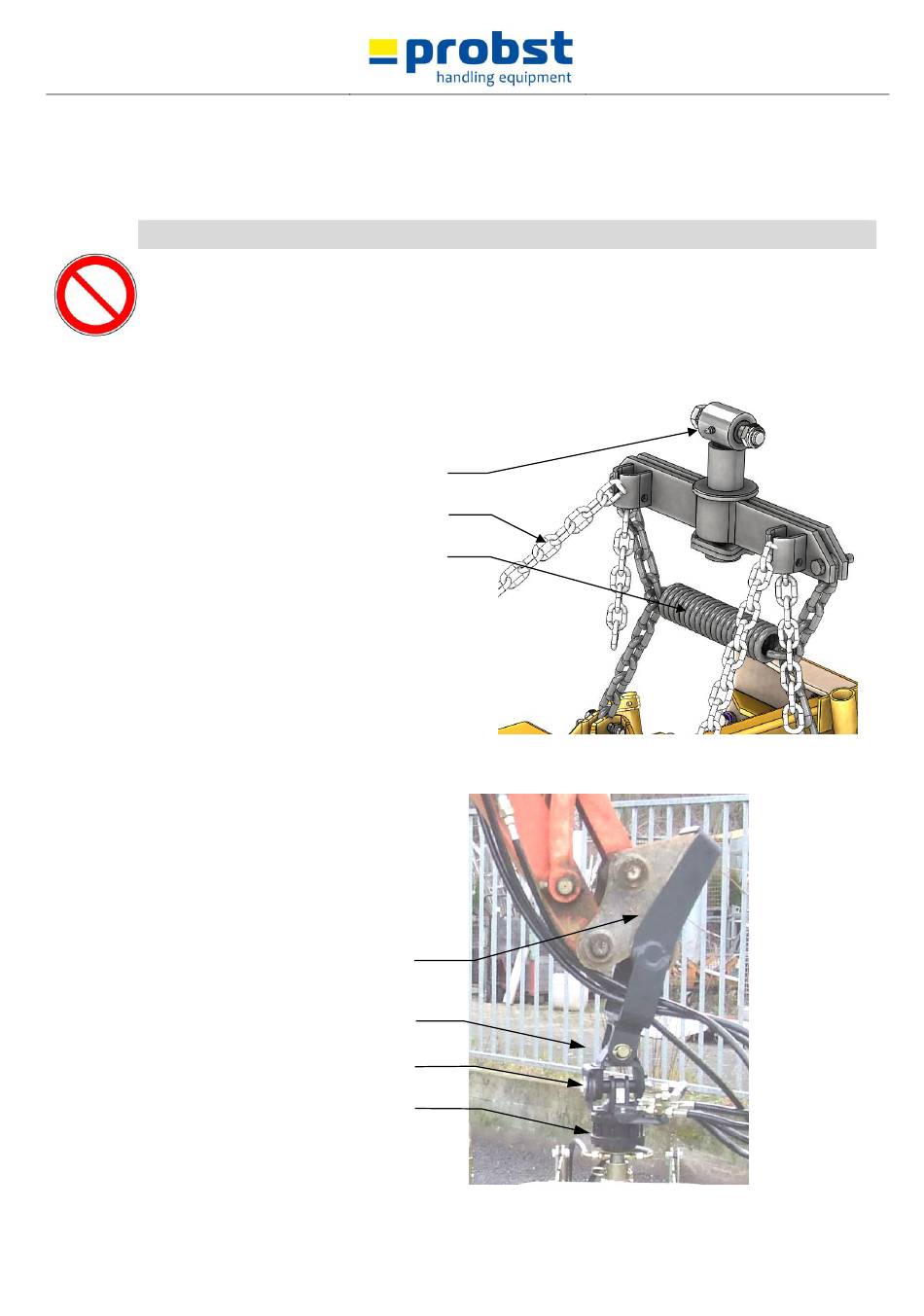

The mechanical connection of the HVZ-LIGHT to the carrier device takes place with a suspension.
The 2-point-suspension is equipped with a spring for vibration
dampening.
The mechanical connection of the HVZ to the carrier device takes place with the universal-excavator-suspension (UBA or
Lehnhoff-adapter).
Excavator-suspension Lehnhoff-adapter
Make a secure connection (bolt with locking ring) between
the rotating head and the excavator-suspension.
5140.0035
Suspension for carrier device
Angled chain
Spring
Excavator suspension
(Lehnhoff-adapter)
Safety bolt with locking
Grab swing brake
Rotating head
