GE1 or GE2 Cable Connection

Before You Begin
Connect the GE1 or GE2 cable before you
About This Task
The GE1 or GE2 cable is connected through the service panel base front or rear hole. The following
hardware is required to connect the GE1 or GE2 cable through the service panel base rear hole:
•
GE1 or GE2 cable
•
One blank conduit cover to cover the front hole on the side of the service panel base
•
One 1 in. or ¾ in. conduit cover, depending on the circumference of the GE1 or GE2 cable
•
Service panel base
•
Service panel top

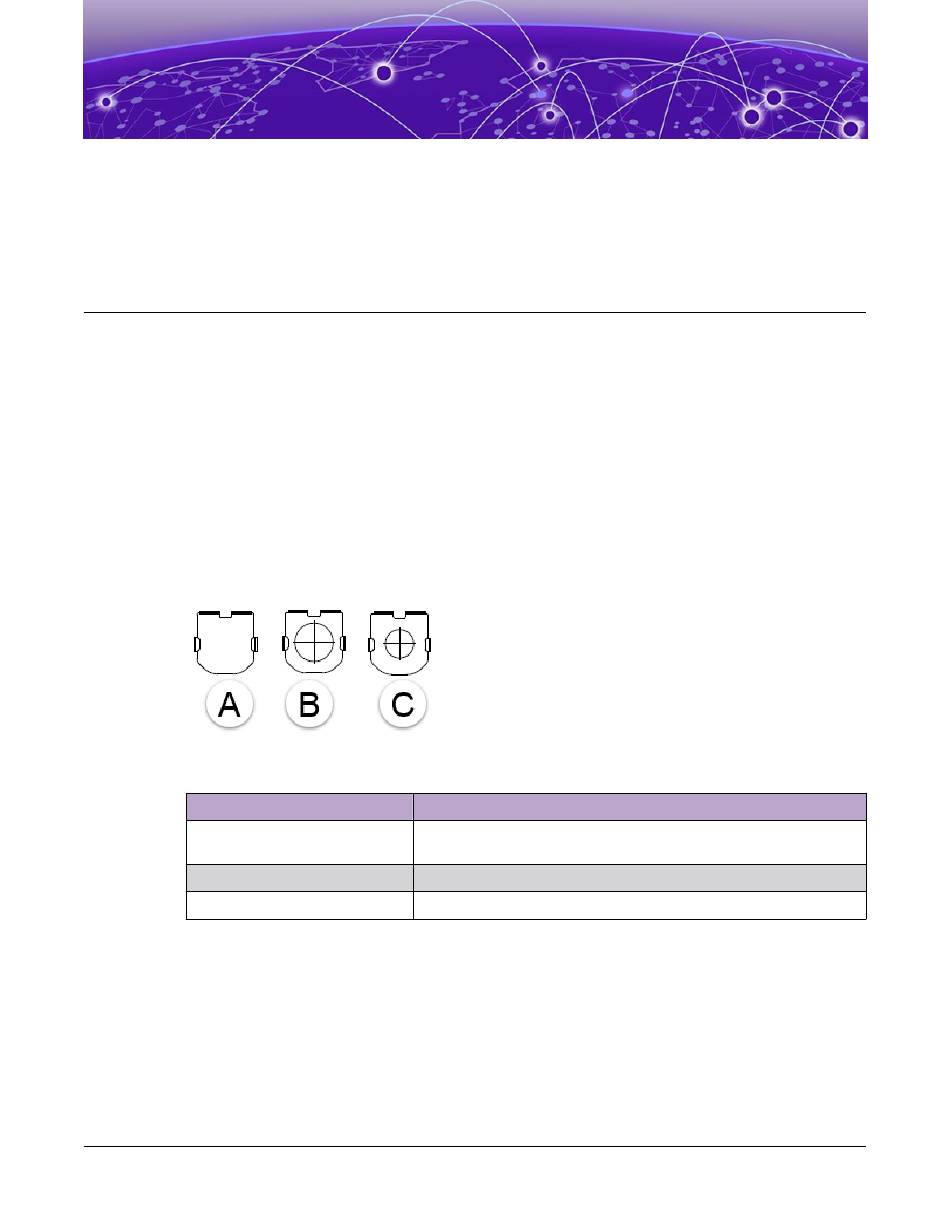

Figure 11: Conduit metal plates
Callout
A
B
C
Procedure
1. Using the blank conduit cover, cover the service panel base front hole.
2. Attach either the 1 in. conduit cover or the ¾ in. conduit cover to the service panel base rear hole.
3. Bring in the GE1 or GE2 cable, and the ground wire through the service panel base rear hole.
4. Loosely align the service panel base next to the metal sloping bracket, and leave space to attach the
GE1 or GE2 cable to the access point.
5. Attach the ground wire to the access point.
30 ExtremeWireless™ AP560h Access Point
install the plastic service
Description
Blank conduit cover to cover the front hole on the side of the
service panel base
1 in. conduit cover
¾ in. conduit cover
panels.
