6 FLIGht PLAN
> 'MENU' 1 sec + "FLIGHT PLAN" + 'ENTER'
The Flight Plan mode allows you to create a Flight Plan with User Points, Temporary Waypoints or
Jeppesen object as Waypoints. Flight Plans can be entered on the Moving Map (see Par. 3.5) or in
the Flight Plan Menu if all Waypoints are known objects. The EKP-IV can store up to 10 Flight Plans
with up to 100 individual legs each. Additional Flight Plans can be stored in the Compact Flash
entering File Manager (Database).
The Flight Plan Menu page provides the BRG, DST, ETA and Fuel data for the active/viewed Flight
Plan. By using the left/right cursor key it is possible to change the table columns displayed, choosing
between BRG, DST, ETA and DST, ETA, Fuel.
The Flight Plan Menu is where you can edit, view and activate Flight Plans. To open the Flight Plan
Menu press 'MENU' from the Flight Plan page.

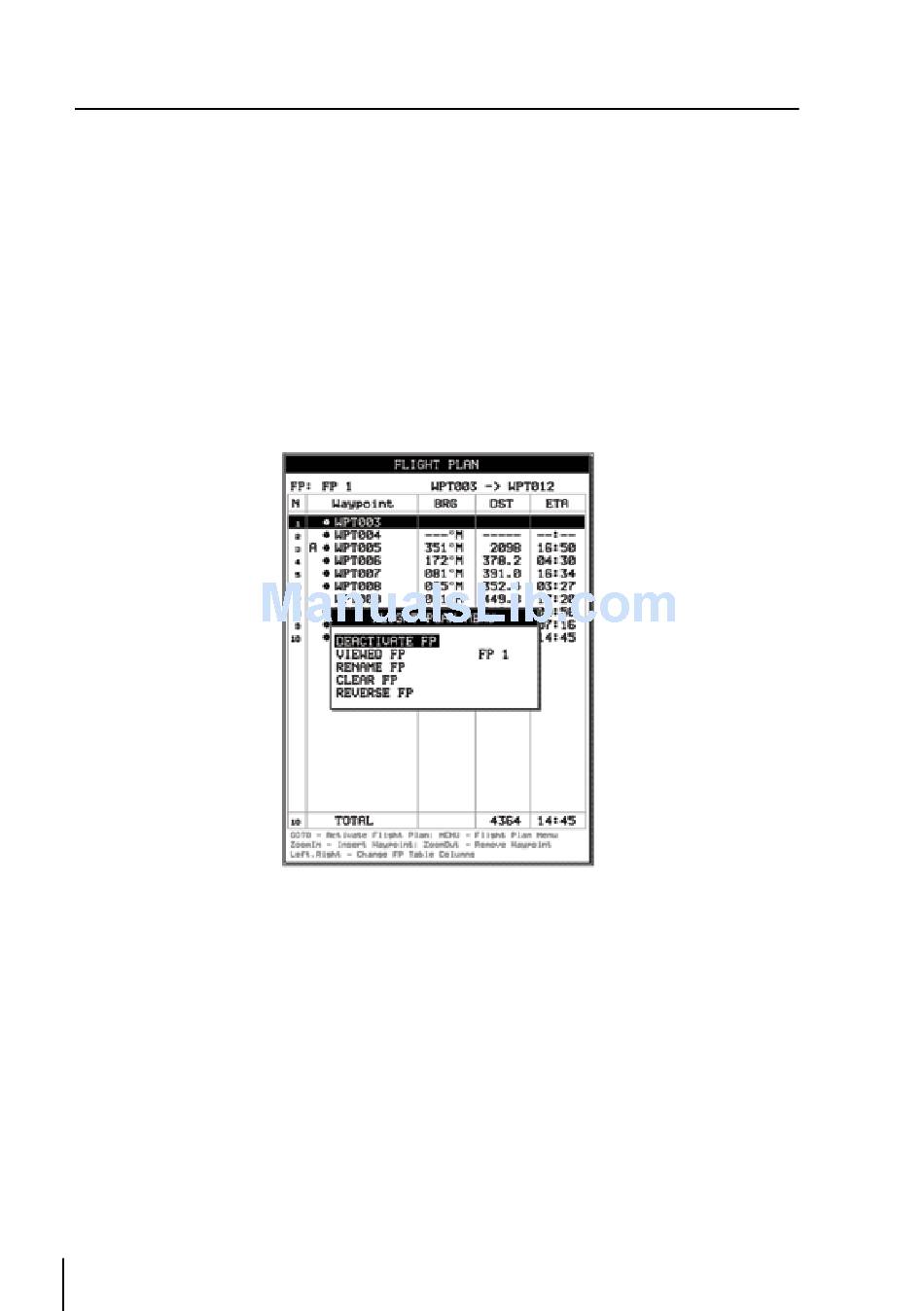

Fig. 6 - Flight Plan page with Flight Plan menu box open
See section 3.4.6 regarding Flight Plan creation from the moving map page.

6.1 VIEWED FLIGht PLAN

When you enter the Flight Plan Page, the information appearing on the screen is for the current
"Viewed" Flight Plan. The Flight Plan name will appear at the top of the page. All actions within the
Flight Plan menu are related to the currently "Viewed" Flight Plan.
To select the Flight Plan to view:
> 'MENU' 1 sec. + "FLIGHT PLAN" + 'ENTER' + 'MENU' + "VIEWED FP" + 'ENTER'
Using the cursor key, select the Flight Plan desired for viewing/activating/editing.
The "Viewed" Flight Plan will display on the Moving Map. Select an Empty Flight Plan if you do not
