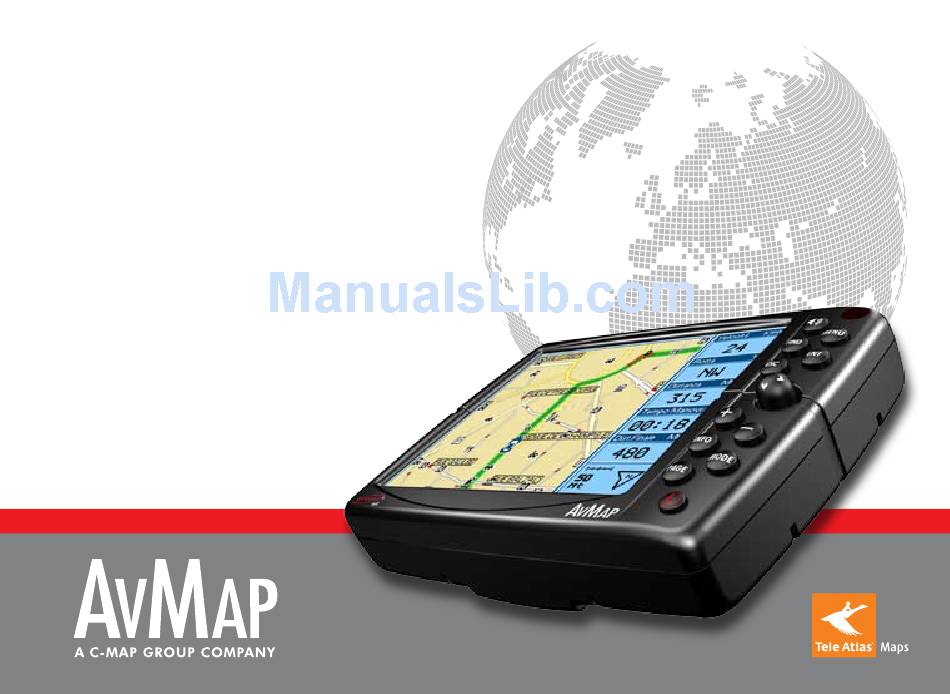

Page 1: User Manual
USER MANUAL AvMap GEOSAT 4 ALL AvMap GEOSAT 4 CAMP AvMap GEOSAT 4 TRUCK Ver. 0.2... - Page 3 Dear Customer, Congratulations on choosing AvMap Geosat 4 ALL / AvMap Geosat 4 CAMP / AvMap Geosat 4 TRUCK navigator! With Geosat on board you will be able to - receive your GPS position and view it on detailed Tele...
-
Page 4: Table Of Contents
Index Warning Maintenance Battery disposal 1. Introduction 1.1 Box contents 1.2 Available accessories 1.3 Hardware features 1.4 Keyboard 1.5 Remote Control 2. Installation 2.1 Fixing the bracket 2.2 Fitting the optional external GPS antenna 2.3 Power connection 3. Setting the destination 3.1 Starting 3.2 Setting the first destination 3.3 Show on map 3.4 Drive me Home 4. Planning a route 4.1 Planning a route from A to B 4.2 Deleting a route 4.3 Reversing a route 4.4 Simulation 5. Advanced planning... - Page 5 9. Trip Information 9.1 Trip computer 9.2 Data boxes 9.3 GPS information 10. Special functions 10.1 Video 10.2 Traffic Information (TMC) 10.3 Safety camera database 10.4 APRS 10.5 Connection to GSM localization devices 11. Setting preferences 11.1 System setup 11.2 General 11.3 Map 11.4 POI 11.5 Routing 11.6 Track 11.7 Alarms 11.8 Date & Time 11.9 Units 11.10 Text and Voice language 11.11 Simulator 11.12 Interface 11.13 TMC 11.14 Brightness 11.15 Volume 12. Updating Software and map 12.1 Updating the Software...
-
Page 6: Warning
Warning The manufacturer and the distribution chain disclaim any liability deriving from an improper use of the device in a way that may cause accidents or damages to things or persons. Using this navigator implies that the user accepts and follows all these warnings and all the instructions contained on this manual. The driver is held responsible for using Geosat in the correct way (passenger or non passenger mode). -
Page 7: Maintenance
Maintenance • Do not leave the navigator in direct sunlight for extended periods. This could compromise the correct running of your Geosat. If you suspect that the navigator has been over heated because of sunlight exposure, let the temperature of the car cool down, and wait for the device temperature to go down to normal values before switching it on. • Avoid knocking against the display. • Do not use oil based products to clean the LCD surface. • Keep away from water. Battery disposal This product is equipped with a built-in Li-Ion battery. Do not use the product in damp or corrosive environments. In order to lengthen the life of the battery, do not recharge it at temperatures higher than 60°C. -
Page 8: Available Accessories
1. Introduction 1.1 Box contents Before using the product make sure the box contains the following items: 1. Navigator (5,6” LCD TFT display) 2. Holder with suction cup 3. Car charger 4. USB cable 5. Audio video cable 6. Remote control 7. TMC receiver 8. This manual 1.2 Available accessories 1. Fixed holder 2. Carrying case 3. External GPS antenna 4. Maps updates on DVD 5. AC-DC Adaptor 6. TV Tuner 1.3 Hardware features Looking at the navigator you can see the following components: 1. Keyboard 2. 5,6” LCD TFT display 3. Infrared sensor 4. Audio output N.B.: images are for illustrative purpose only... -
Page 9: Keyboard
front view side view 5. Brightness sensor 6. Power supply plug 7. Audio video input 8. Serial port for external GPS receiver 9. Serial port for TMC receiver 10. Speaker 11. USB port 1.4 Keyboard • SPEAK: repeats the last vocal instruction and opens the volume control window • MENU: opens the main menus available • FIND: opens find window to search for addresses, marks, POI • ESC: exits from the current menu and switches into cursor mode or GPS mode • JOYSTICK: Upper arrow: moves the cursor up... -
Page 10: Remote Control
1.5 Remote control 1. Pull out the tab from the bottom end of the remote control. The remote control is ready to be used. 2. Point the remote control in direction of the Geosat infrared sensor. • MENU: opens the main available menus • ENT: enter function to confirm a selection, corresponds to the central part of the joystick or to the + button in the navigator keyboard • ESC: exits from the current menu and switches into cursor mode or GPS mode • PAGE: selects the different pages available: map, instructions and trip computer • Upper arrow: moves the cursor up • Lower arrow: moves the cursor down... -
Page 11: Fixing The Bracket
in the second case the Auto night vision option is also activated. Volume adjustment with the remote control To adjust volume with the remote control: 1. Press the FIND button for 3 seconds. 2. Adjust the volume with the right arrow and left arrow of the JOYSTICK. Press the FIND button to quickly change the brightness level. 2. Installation Geosat is ready to be used. All you need to do is install the unit into the vehicle. Carry out these operations in order: 1. Fix the bracket on the windscreen. 2. Fix Geosat on the bracket. 3. Plug the optional external antenna. 4. Plug in the car charger. 2.1 Fixing the bracket Do not place the navigator on the passenger seat, as this position could cause a dangerous distraction for the driver. The navigator should be fixed with the brack- et provided. The bracket with suction cup is included in the box. There is also an optional fixed holder, available upon request. In either case, please follow the following instructions:... -
Page 12: Fitting The Optional External Gps Antenna
2.2 Fitting the optional external GPS antenna The Geosat is equipped with a built-in GPS antenna and with a port for an optional external antenna. The external antenna can be useful in case of shielded windscreens. The external antenna does not need power. The magnetic base of the external GPS antenna can be placed on any flat metallic surface, with the antenna facing up. The higher the GPS antenna is placed, the better... -
Page 13: Starting
flashes until the Geosat is fully charged. ATTENTION when the device encounters internal temperatures of higher than 60°, the battery will not recharge and an alarm message will be displayed. This can happen if the navigator is exposed for a long time to direct sunlight in hot weather. In such cases, it is suggested that you switch off the navigator to recharge the battery. Battery Functioning Geosat battery allows the navigator to operate even without feeding it with the... -
Page 14: Setting The First Destination
Driving mode The driver should NOT consult the navigator while driving. For this reason, when Driver mode is chosen, the map view is automatically deactivated. The only accessible pages are the trip computer and the list of driving instructions. For further details, read par. 5.2. Passenger mode This mode allows access to all the navigation functions. Powering down To power down the Geosat press and hold the POWER button for 4 seconds. When the power supply cable is removed, the message “powering off in 30 seconds” appears. To avoid powering down, press ENT. Press any other button to power down immediately. -
Page 15: Drive Me Home
country is saved for subsequent searches. 6. Using the JOYSTICK, select the fields City, Street and House Number (or Postcode and House Number) and repeat the procedure described for the Country field. 7. Once all the fields are filled, select Go and press the ENT button. The Geosat will calculate the route from the current GPS position to the selected destination. 3.3 Show on map The Show on Map button is useful for viewing the inserted address on the map. 1. Select Show on Map and press the ENT button. -
Page 16: Planning A Route From A To B
After having set a Mark as Home (read par. 7.5) it is possible to set one’s own Home as destination with a quick command: 1. Press the MENU button. The Navigation menu will now open. 2. From Navigation from My Position select Drive me Home and press the ENT button to confirm. 4. Planning a route 4.1 Planning a route from A to B You can plan a route setting both the depar- ture and the destination. This function can be useful if you are in position X and you want to plan a route from A to B, or if want to plan a route before leaving, without receiving the GPS signal. -
Page 17: Reversing A Route
instructions: 1. Press the MENU button. The Navigation menu will now open. 2. Select Delete route. 3. Press the ENT button to confirm. 4.3 Reversing a route To reverse the last route planned, follow these instructions: 1. Press the MENU button. The Navigation menu will now open. 2. Select Reverse route. 3. Press the ENT button to confirm. 4.4 Simulation After having planned a route as described in par. 3.4 it is possible to simulate the naviga- tion. 1. Press the MENU button three times. 2. The System Setup menu will now open. Move the JOYSTICK to the right to select the Simulation folder and press the ENT button to confirm. - Page 18 the MENU button. From Route planning, select Advanced and press the ENT button. 4. The Advanced route-planning menu will now open. From Via point select Set as via point. 5. Press the ENT button to confirm. The Geosat will calculate the new route. You can set the Via point(s) first and then the departure and destination points, or set the departure point and then the Via point(s) fol- lowed by the destination. Via points must be entered in the correct sequence. How to remove a Via point: 1. Place the cursor on the first Via point you want to remove then press the MENU button. The Navigation menu will now open. From Route planning, select...
-
Page 19: Blocking Roads
5.2 Blocking roads When calculating a route, the Geosat allows you to avoid some roads or parts of roads. A road can be blocked even if there is no route set. How to block a road: 1. Place the cursor on the road to be blocked. 2. Press the MENU button. The Navigation menu will now open. 3. Select Advanced options and press the ENT button to confirm. 4. The Advanced route-planning menu will now open. From Blocked roads select Set blocked road on cursor and press the ENT button to confirm. The Geosat will calculate the route. The blocked road will... -
Page 20: Navigating Off Road
It is also possible to activate/deactivate the walkways following the procedure described in par. 10.5. 5.4 Navigating Off road With Geosat it is possible to plan a route off road. 1. Press the MENU button three times. 2. The System Set up menu will now open. Move the JOYSTICK to the right and select the Routing folder and press the ENT button to confirm. 3. Select Off Road from Route preferences. 4. It is now possible to select the departure point off-road. A-B Function The A-B function is particularly useful during off road navigation. This function allows you to calculate the distance “as the crow flies”... -
Page 21: Using The Map 6.1 Exploring The Map
view the list of all the streets along the route and it is possible to detour the trip to avoid an undesired street. 1. Press the MENU button to open the Navigation menu. 2. Select Detour route to open the list of the streets along the route and confirm by pressing ENT 3. Select the list pressing ENT. 4. Select with the cursor the street to avoid and press ENT to confirm. 5. Press ESC to exit from the list. Select Detour and press ENT to confirm. The route will be recalculated excluding the streets to be avoided. - Page 22 time to the next maneuver. • Full display map • Back to Map with info box on the right Pressing the PAGE button you can pass the maneuver pages, then pressing the MODE button you can obtain the following configurations: • Full display instruction • List of instructions Pressing the PAGE button you can pass the trip computer pages, then pressing the MODE button you can obtain the following configurations:...
-
Page 23: Map Views
• Trip Computer • Graphic of speed Pressing again the PAGE button, the unit will display pictures or films coming from the Video PAL, NTSC input (only when an external device is connected to the audio video input). 6.3 Driver mode When the Driver mode is chosen, these pages are available: • Trip computer • List of instructions... -
Page 24: Points Of Interest (Poi)
in the same menu or from the system setup. For further details read par. 11.14. 6.6 Points of Interest (POI) The database of the points of interests is very useful when you are in an unfamiliar place. This information is preloaded in the Geosat, together with the cartographic data. The POIs include hotels, restaurants, hospitals, police stations, cinemas etc and are grouped in these categories: • Car services • Transports • Emergency • Attractions • Entertainment • Food and drink • Government • Lodging... -
Page 25: Mark Folders
the desired address. 3. Press the centre of the JOYSTICK. The Function menu will now open. Select Add Mark on cursor and press the ENT button to confirm. 7.2 Mark folders To browse the Marks folders press the MENU button twice, select Marks list and press the ENT button to confirm. The Mark folder list shows the Business, Personal, Incoming and Trip 1 folders. When a new Mark is created on the map, it is automatically saved in the Personal folder. It can subsequently be moved to other folders. -
Page 26: Editing A Mark
Press the ENT button to open the Marks options menu. From this menu, it is possible to Edit a Mark, Remove a Mark, Remove all marks or Search a Mark by name in the list of created points. The Marks options menu includes also a Communication submenu: • Send Marks • Receive Marks 7.4 Editing a Mark Once a Mark has been created you can modify the icon, the name and the description. 1. Point the cursor on the Mark and press the centre of the JOYSTICK. The Function menu will now open. -
Page 27: Setting A Mark As Home
field. 5. To choose an icon select the field Icon with the JOYSTICK and press the ENT button to confirm. Select the desired icon and press the ENT button again. 6. To save everything select OK and press the ENT button to confirm. How to show a Mark: It is possible to cusromize the information associated to a Mark. 1. Press three times the MENU button to open the System Setup menu. 2. Move the cursor rightwards to select the Map folder. Select the User Marks submenu and press the ENT button to confirm. 3. Choose among three options: OFF (no mark is displayed), Icon (the marks are displayed with an icon), Icon/label (the marks are displayed with an icon and... -
Page 28: Mark Alarm
par. 7.4. 2. Select Set as HOME and press the ENT button to confirm. The Mark icon will be changed into the HOME icon. You can then set home as your destination with this quick command: 1. Press the MENU button. The Navigation menu will open. 2. From Navigation from my GPS position select Drive me HOME and press the ENT button to confirm. - Page 29 prepared for saving the data. The space already used on the Hard Disc is shown in the lower part of the display. 2. Press the MENU button. The File menu will open. 3. Select Save and press the ENT button to confirm. 4. The Save to disc window will open. The Name field is outlined with a dotted line, Press the ENT button to open the virtual keyboard.
-
Page 30: Advanced Search Options 8.1 Duplicate Place/Road Names
8. Advanced search options 8.1 Duplicate place/road names When inserting an address you will inevitably find roads or towns with the same name. The Geosat will display a list of all roads or towns with the same name. Select the required road/town and confirm by pressing the ENT button. 8.2 Searching by postcodes The postcodes field allows you to search for an address by postcode. The postcode field is not mandatory, but can be used instead of the city field. Move the JOYSTICK to select Postcode and press the ENT button to open the virtual keyboard. Select the letters with the JOYSTICK. -
Page 31: Searching Nearest Poi
• The current GPS position • The position of the cursor on the map If you can see both the GPS position and the cursor on the map, the search will be performed near the cursor. To search near the current GPS position, you must exit from the cursor mode by pressing the ESC button. The cursor will be removed from the display. The Find menu will show the search criteria in use. 8.5 Searching for the nearest cities 1. Press the FIND button. The Find menu will open. 2. From Nearest to cursor select City and press the ENT to confirm. A list of the cities near to the cursor or to the current GPS position will open. Choose the desired... -
Page 32: Searching Poi By Name
5. Select the desired subcategory and press the ENT button to confirm. 6. The Search window of the chosen category will open. This window displays a list of the points of interest near to the cursor or to the current GPS position. Select the required POI. To set the chosen POI as destination: 1. Press the MENU button. The Find menu will open. 2. From Navigation from my GPS position select Set as destination and calculate and press the ENT button to confirm. -
Page 33: Searching Nearest Marks
6. The Find menu for the chosen subcategory will open. Open the virtual keyboard by pressing the ENT button and insert the name of the town/city in which the POI falls. 7. Select Name with the cursor. When you have entered the name, select ENT on the virtual keyboard and confirm by pressing the ENT button. The Geosat will search for the POI in the named town/city. Once the Point of interest has been chosen, it can be set as destination as described in par. 8.6. -
Page 34: Recently Found
8.10 Recently found In Recently found, you can find the list of the last found addresses, Marks and POI. 1. Press the FIND button. The Find menu will open. 2. Select Recently found and press the ENT button to confirm. 3. To quickly set a route to a recent destination, select it with the cursor and press the MENU button. The Find menu will open. 4. From Navigation from my GPS position select Set as destination and calculate and press the ENT button to confirm. -
Page 35: Trip Information
9. Trip information 9.1 Trip computer To view the trip computer page, press the PAGE button. The trip computer includes the following information (calculated by the Geosat): • Speed • Trip Distance • Total Distance • Average speed • Overall Average speed • Maximum speed • Driving time • Trip time • Stopped Time Press the MENU button on this page to open the Trip menu to reset the trip data saved up to that moment (excludes the total distance). The Total distance can only be reset with a ram clear (memory reset). For further details read par. 6.8. -
Page 36: Gps Information
Time: Count down timer Time: Elapsed timer Navig: Current speed Navig: GPS status Navig: Altitude Navig: Fix Lat/Lon Coordinates of current position Navig: Cursor Lat/Lon Coordinates of the cursor Navig: Course The direction of the route Navig: Distance to turn Distance to the next turn Navig: Bearing to turn The direction of the turn vs. the geographic North Navig: Estimated time to turn The time at which the next turn is estimated to take place Navig: Time to go Navig: Final distance... -
Page 37: Special Functions
10. Special functions 10.1 Video function The audio/video input (PAL NTSC) allows you to connect DVD players, laptops, cameras etc., to the Geosat display. 1. Turn on the device and connect the audio video cable to the plug on the back of the navigator. 2. Connect the RCA video cable to the yellow pin, and one of the two audio cables to the white pin (mono). 3. Press the PAGE button until the video mode is displayed. 10.2 TMC Geosat software is ready to process traffic information in real-time. Geosat is equipped with a plug for a TMC (Traffic Message Channel) external receiver which can be purchased as an accessory. The TMC receiver allows to receive traffic information through... -
Page 38: Safety Camera Database
(Amateur radio equipment and GPS) with software to provide real – time disseminating of data concerning real-time events and to graphically represent that data on their computer, or GPS display. AvMap Geosat 4 navigators are APRS compatible and are capable to communicate with radio VHF devices such as Kenwood D700A e TH-D7AG. The radio equipment has to be connected to the TMC serial port. -
Page 39: Connection To Gsm Localization Devices
are displayed on the map and it is possible to view the full list of received marks: 1. Press twice the MENU button to open the Main Menu. 2. Select with the cursor Mark List and confirm by pressing ENT to access to the list of Mark folders. 3. Select the Incoming folder and confirm by pressing ENT o view the list of the Marks received via radio. Set an APRS Mark as destination It is possible to set as destination, both still marks and Mark in motion thanks to the special function ‘intercept to target’: 1. Select the desired Mark in the Mark List. 2. Press MENU to access to the Mark List Menu. 3. Select Set as destination and confirm by pressing ENT. -
Page 40: General
• USA To use a Geosat that was purchased in Europe in the USA, you need to add a licence to allow the device to read US maps. For further information on how to obtain both the licence and the US maps, email info@ avmap.it. Beeper It activates/deactivates the button sounds. Power save It sets the level of power save after that the power supply cable has been removed. -
Page 41: Poi
• Full Auto position It is possible to choose whether the zoom level has to vary automatically during navigation, according to speed and distance to the next turn or whether to keep your own GPS position centred on the map: • Manual: once the zoom level has been set manually, this remains constant for all the navigation. • Auto zoom: the zoom level is varied automatically according to speed and distance to next turn. • Auto centre: the zoom level is varied according speed. -
Page 42: Routing
when safety cameras POIs are uploaded on the navigator (read par 10.3). Only for Geosat 4 CAMP version are available for France, Italy, Germany and UK about 20,000 Points of Interest dedicated to Recreational Vehicles (Campers and Caravans): RV campgrounds, RV parking, camping and RV services. 11.5 Routing Route preference It specifies the criteria used to calculate the route:... -
Page 43: Alarms
track. Track display Check this box to view the track of the route that has been followed. Track recording Check this box to record the track of the route that has been followed. Track recording step This sets the time interval or distance between successive points stored in the track. For more detailed, shorter tracks, select a lower value of time or distance or for longer, less detailed tracks select a higher value • Auto • 1 sec • 5 sec • 30 sec • 20 m • 100 m... -
Page 44: Date & Time
The Alarm radius determines the distance at which the alarm is activated. To modify the radius, select the field to be modified and move the JOYSTICK either up or down, then confirm by pressing the ENT button. 11.8 Date & Time Time format: 24h or 12h. Date format: Month/Day/Year or Day/Month/ Year. UTC offset: sets the difference between the local time and Greenwich Mean Time. Countdown timer: set the duration of the countdown (h/min/sec) and press start. -
Page 45: Simulator
To have all the available languages it is suggested that you update the software periodically. You can always obtain the latest software version, free of charge by visiting www.avmap.it. 11.11 Simulator You can plan a route and view a simulation of the navigation without connecting the GPS antenna. In the simulation window check the simulation option, and Geosat will display the vehicle icon moving on the route as if you were navigating for real. -
Page 46: Tmc
different communication protocols: • TMC: the serial port is set to communicate with an external TMC receiver (traffic data in real time) • NMEA: the serial port is set to communicate through standard protocol NMEA 0183 • Radio Link: the serial port is set to communicate with radio devices • Geolink: the serial port is set to communicate with external localization devices. • Proprietary: C-Map protocol. Baud Rate It sets the communication functionalities of the serial port (marked TMC): NMEA 4800: the external serial port is programmed to communicate with a baud... -
Page 47: Volume
To check whether your Geosat needs to be updated, you need to establish which software version is pre-loaded on your device and then visit the www.avmap.it website to check if it is the latest available version. Press the MENU button twice to open the Main Menu, select About and press the ENT button to confirm. The info window details the software and cartography information. -
Page 48: Updating The Map
Once the drivers have been saved, launch the set up (USB_Geosat_2_4_Drivers-Setup) and follow the instructions without connecting your AvMap Geosat to the PC. Once the set up is finished, restart your PC. If the drivers have been correctly installed, they will be displayed in the Control Panel under Add/Remove Programs as ‘Chart Plotter USB drivers’. This driver will let your PC... -
Page 49: Troubleshooting
1. Connect the power supply of your AvMap Geosat. The unit has to be turned off at that time. 2. Power on the navigator with the PAGE button pressing at the same time the FIND button. Hold both keys until the ‘System... -
Page 50: Reset
Product: The Geosat in-car navigator, contained in the packaging. Conformity: Conformity to the technical, aesthetic and functional features described for the product. Purchaser: Private person purchasing the product from the vendor. Producer: AvMap S.r.l. 14.1 Warranty conditions This warranty is valid throughout the European Community. The conditions of guarantee secure the Purchaser in conformity with the 1st Article 1 Dlgs. 2 February, n. 24 without prejudice of the rights deriving to the Purchaser in pursuance of the national laws. -
Page 51: Repair And Replacement Under Warranty
When a Conformity Defect has been confirmed, the Purchaser must contact the authorised Support Centre for national territory by one of the following methods: Web procedure: The Purchaser should visit the www.avmap. it website and click on “Technical Support.” The Purchaser will be required to complete an on-line assistance request form. Once the form has been processed, the Support Centre will send the Purchaser an authorisation number by email. -
Page 52: Tele Atlas User License
• Creation of a derivative product that competes with the Licensed Products ADDITIONAL PROVISIONS TO BE INCLUDED BY LICENSEE: 1. TA is a third party beneficiary of AvMap rights under the EULA, but is not a party thereto and shall have no obligations thereunder. 2. Disclaim, to the extent permitted by applicable law, TA’s liability for any... - Page 53 applicable export laws and regulations of the United States / the European Community. 6a. (Applicable for US data Only) Include the following: U.S. GOVERNMENT RIGHTS. If End User is an agency, department, or other entity of the United States Government, or funded in whole or in part by the United States government, then use, duplication, reproduction, release, modification, disclosure or transfer of this commercial product and accompanying...
- Page 54 national products of the Norwegian Mapping Authority). 9. (Applicable for POI’s of the USA only). If Licensee licenses POI’s of the USA to an End User, it is required that Licensee includes the following warranty disclaimer: “THE PREMIUM POI’S ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND. IN NO EVENT WILL TELE ATLAS’S THIRD PARTY SUPPLIER(S) OF THE PREMIUM POI’S BE LIABLE IN ANY WAY WITH REGARD TO THE PREMIUM POI’S.”...
- Page 55 LIST OF COPYRIGHTS Europe: “Data Source © <2006> Tele Atlas N.V.” Austria: “© BEV, GZ 1368/2003.” Denmark: “© DAV” France: Michelin data © Michelin 2006 Great Britain: This product includes data by Ordnance Survey with authorization of Her Majesty’s Stationery Office controller. © Crown copyright and database right 2006. All rights reserved. License number 100026920 TMC codes UK: The RDS-TMC info version (6G) 3.4, 4.5 e 4.6 are provided by TMC TRAFFICMASTER and are subject to the terms of the license agreement between Tele Atlas and TRAFFICMASTER.
-
Page 56: Appendix A: Technical Specifications
Appendix A Technical specifications 5,6” LCD TFT display Brightness 450 nit Contrast 250:1 Resolution 320 x 240 px Number of colours 65536 Manual or automatic brightness control Built-in Sirf III GPS receiver 20 channels Built-in rechargeable Li-Io battery 4GB HDD Processor Arm9 200 MHz RAM 64 MB Backlit keyboard Built-in speaker Power supply 10/35 V Maximum consumption 7 W Operating temperatures 0 – 50 °C Storage temperatures -25 – 60 °C Dimensions 156 x 110 x 38.2 mm Weight 490 g Serial port for (optional) external GPS antenna Serial port for external TMC receiver Audio video input (PAL NTSC) Audio output Infrared sensor USB port Minimum PC requirements (for software updates): Microsoft Windows ME, 2000, XP, 2003 server 64 Mb free space on Hard Disc 64 MB RAM DVD Rom drive USB Port... -
Page 57: Appendix B: Poi Index
Appendix B POI index Car services Car repair Car dealer Gas station Parking Garage Rent-a-car facility Rent-a-car parking Bovag garage Vehicle equipment provider Athorized car repair Transport Airline access Airport Bovag garage Bridge and tunnel Entry point Highway exit Ferry terminal Lighthouse Main railway station Main railway station CLF (car loading facility) Military airport Minor railway station Minor railway station CLF (car loading facility) Park/ride facility Motorways parking area Parking garage Passenger/ freight airport Gas station Ramp Rent-a-car facility Rent-a-car parking Motorway services Truck stop Underground/metro station Underground/ metro station CLF Yacht basin Emergency... - Page 58 Lodging Camping site Hotel/Motel Medical services Dentists Doctors Pharmacy Veterinarians Natural attractions Beach Land use Mountain pass Mountain peak Nature reserve Rocks Terrain Services Bank Car repair Convention centre Elective district Factory ground Free port Industrial activity Post office University School Worship Shopping Car dealer Shop Shopping center Vehicle equipment provider Sport facilities Golf course Car race track Horse track Ice skating track Ice skating rink Skating rink Sport hall Sports center Stadium...
- Page 59 AvMap S.r.l. Via Caboto, 9 54036 Marina di Carrara (MS) Italia...
- Page 60 AvMap s.r.l. Via Caboto, 9 - 54036 Marina di Carrara (MS) - Italia info@avmap.it...
