Operator Panel And Display - IKA MATRIX DELTA PLUS Manual

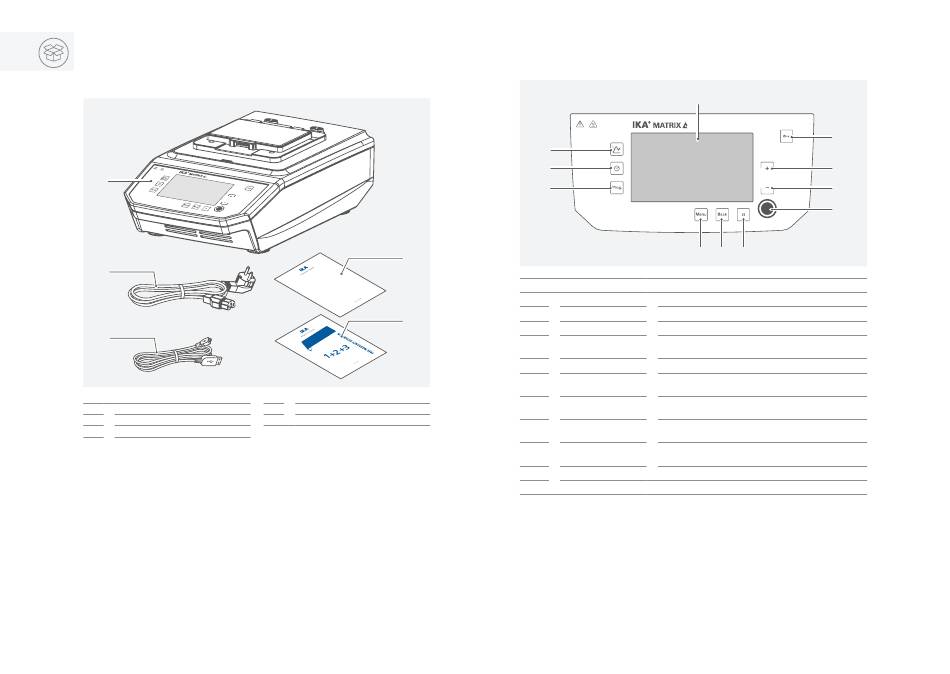

Unpacking
› Please unpack the device carefully�
› Any damage should be notified immediately to the shipping agent (post office, railway
network or logistics company)�
1
2
3
1 IKA MATRIX DELTA PLUS
2 Power cable
3 USB cable
10
4
5
4 User guide
5 Warranty card

Operator panel and display

/// Explanation of the control elements
K
A
B
C
D E
Item Designation Function
A Graph button Enter the graph (Time / Temperature) menu�
B Timer button Enter the timer menu�
C "Programs (Prog�)" button Enter the programs menu�
Touch it once: main menu is displayed�
D "Menu" button
Touch it a second time: back to the working screen�
E "Back" button Return to the previous menu level�
Touch it once: Pause the tempering function�
F Pause (II) button
Touch it a second time: Restart the tempering function�
Start / stop the tempering function�
G Tempering button
Confirm the select menu option in menu / sub-menu�
Decrease the temperature setting�
H Temperature (-) button
Menu navigation in menu / sub-menu�
Increase the temperature setting�
I Temperature (+) button
Menu navigation in menu / sub-menu�
J Lock button Lock / unlock the buttons�
K Display Screen�
J
I
H
G
F
11
