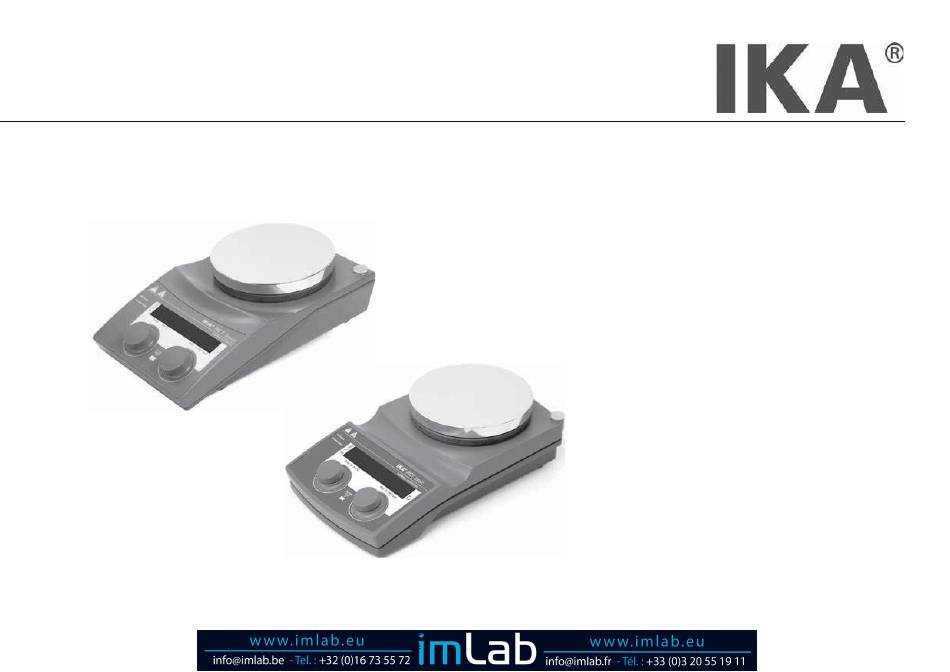

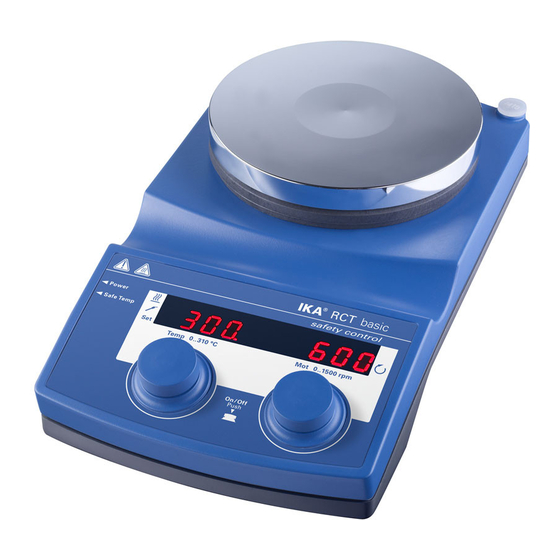

  • Page 1 20000005393 RCT basic_072017 RCT basic safety control...

  • Page 2: Table Of Contents

    • Socket must be earthed (protective ground contact). Source language: German Before starting the device for the first time, ensure that the con- nector cable is suitable for the type of socket used and that a Contents safe protective earth connection is assured. •...
  • Page 3 • The appliance may only be opened by experts. • Process pathogenic materials only in closed vessels under a suitab- • The voltage stated on the type plate must correspond to the le extractor hood. Please contact IKA ® if you have any questions.

  • Page 4: Unpacking

    Unpacking Assembling the stand • Unpacking Remove screw plugs (M) - Please unpack the device carefully Remove the protective cap from the support rod - In the case of any damage a detailed report must be sent Put the washer between housing and nut immediately (post, rail or forwarder) Screw the support rod onto the device by hand until the end stop is reached...

  • Page 5: Operation

    Operation Ensure that the protective film is removed from the base plate before use ! Move device switch (A) to the OFF position Commissioning Insert the mains power cable into the power socket (K) Move device switch (A) to the ON position The unit will be set to factory setting mode A (see “Operating modes”) Adjust the motor speed using the rotary knob (D) The value selected will be shown on the display (F)

  • Page 6: Setting Operation Mode

    Setting operation mode Er 5 Operating the device in mode A, B or D Providing safety protection, Error 5 is taken to recognise that the sensor has not been placed in the medium when the heating is Mode A All settings will be stored if the device is switched off or disconnec- switched on.

  • Page 7: Setting The Safe Temperature Limit

    Setting the safe temperature limit Setting the safety temperature limit The maximum achievable heating plate temperature is restricted by an adjustable safety temperature limit. Once this limit has been After switching on the device, the safety temperature limit can be reached, the device stops heating.

  • Page 8: Controlling The Medium Temperature Limit Via

    Controlling the Medium temperature limit via ETS-D or Contact Thermometer The preferable method for controlling the average temperature is 2-wire connecting cables: with the ETS-D or contact thermometer. After the set point tempera- Connect plug pins 3 and 5 of the instrument plug. ture has been adjusted, this results in a short heating-up time, practi- 3-wire connecting cables: cally no temperature drift and only minor fluctuation in temperature.

  • Page 9: Ets-D Or Contact Thermometer

    Bath attachment • H 29 Oil bath attachment • H 30 Oil bath attachment Only use cleansing agents which have been recommended by IKA ® • H 16 V Support rod • H 16.3 Extension Use to remove: • H 38 Holding rod •...

  • Page 10: Error Codes

    Error codes Any malfunctions during operation will be identified by an error Switch off device using the main switch (A) message on the display (E and F). Carry out corrective measures Proceed as follows in such cases: Restart device Error code Cause Effect Solution Temperature inside device too high...

  • Page 11: Technical Data

    Technical Data Device Device Operating voltage range 220 – 230 ± 10% 115 ± 10% 100 ± 10% Nominal voltage 230/ 50 Hz 115/ 60 Hz 100/ 60 Hz Frequency 50/ 60 Power consumption (+10%) max. at 230 Vac 115 Vac 100 Vac Display digital...

  • Page 12: Warranty

    The control accuracy values given were determined using the following set-up: 500 ml water in 600 ml glass beaker, magnetic stirring bar 40, 600 rpm, 50 °C Subject to technical changes! Warranty In accordance with IKA ® warranty conditions, the warranty period The warranty does not cover worn out parts, nor does it apply is 24 months.
