two cash drawers. You can use narrow (4 banknote compartments) or wide (8 banknote compart-
ments) cash drawers as needed.
The cash drawer is connected to ECR by a thin cable that enables automatic opening. The cable/
connector combination allows conveniently disconnecting and moving the ECR and the drawer.
Both small and mid-size establishments will surely welcome the possibility to place the drawer
wherever desired and operate it using the ECR. Ask your authorised POS-3000 dealer for delivery
and installation of a cash drawer.
It is possible to connect 640×480 VGA DSTN touch sensitive display instead of the original
640×240 touch sensitive display. Its main advantage is that it is able to display much larger
amount of information (during sale or reports). Ask your authorised POS-3000 dealer for deliv-
ery and installation of the VGA touch sensitive display drawer.

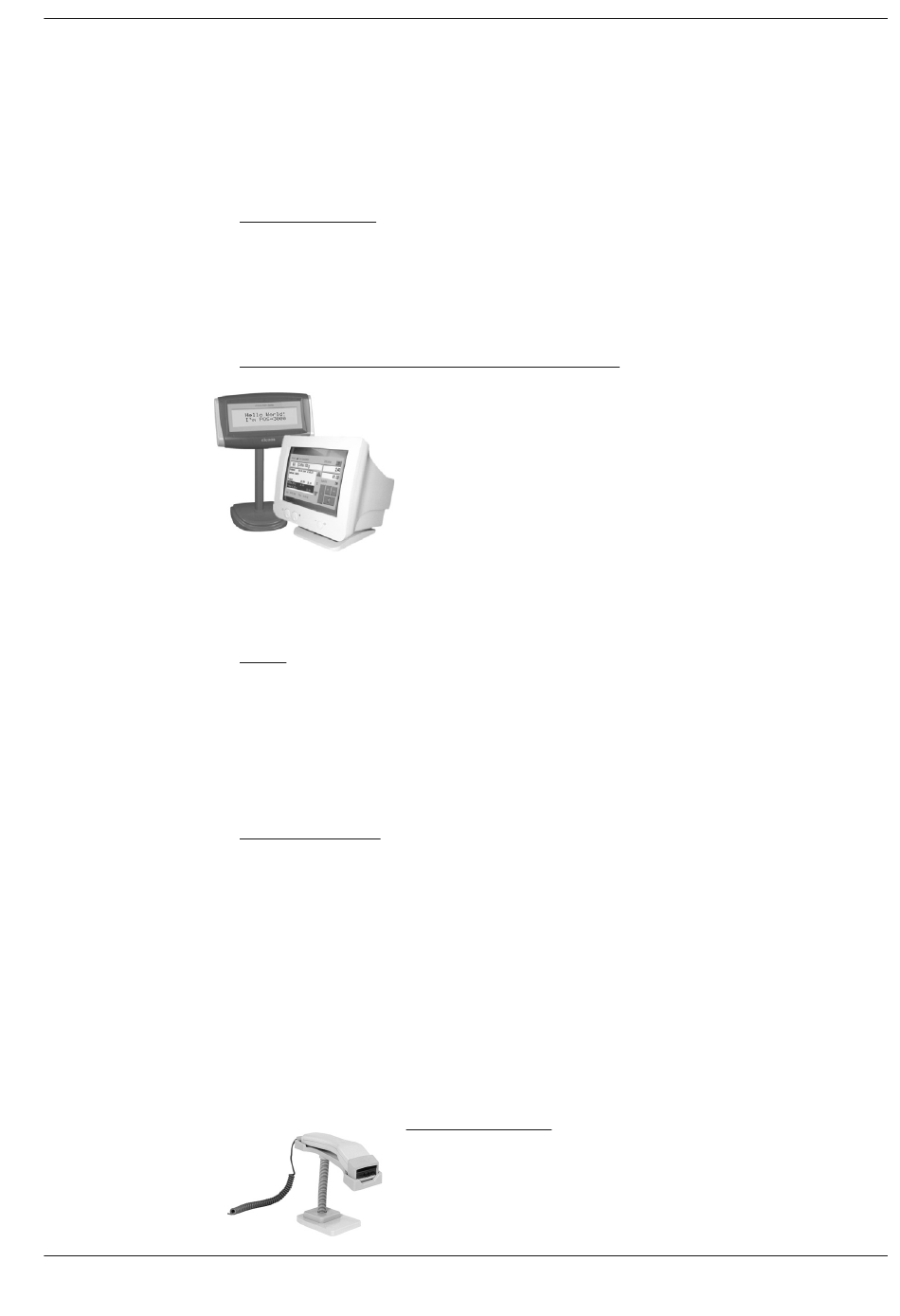

Figure 2.4 >
Alphanumerical dis-
play and 9" B/W VGA
monitor.
for SVGA monitor to work. Ask your authorised POS-3000 dealer for delivery and installation
of additional display/monitor.
Infrared interface (IrDA) is convenient if data are frequently transferred between ECR and PC
and neither ECR nor PC is connected to common computer network. This can save on equip-
ment weariness caused by frequent plugging and unplugging of the network cable.
Ask your authorised POS-3000 dealer for more information and potential activation of infrared
interface.
The POS-3000 cash register is equipped with the interface for connecting the barcode read-
er (scanner) by default. If you decided to employ the functionality of a barcode scanner, this
subchapter can help you choose one. In any case, it is recommended to consult the purchase of
suitable barcode reader with your authorised POS-3000 dealer.
Scanner is connected to the ECR using the built-in RS-232 serial interface and standard Canon
connector. The scanner should feature the same interface and connector. ECR supplies the scan-
ner with +5 V of input voltage. Both scanner and ECR should be properly programmed prior
connecting one to another.
The Metrologic scanners are recommended for POS-3000. Ask your POS-3000 dealer for further
information. There is special scanner price if purchased along with a new cash register.
Figure 2.5 >

Metrologic MS-951.

12

Cashier display

External customer display, cashier monitor

External customer display is a supplement to the internal customer
display that is imbedded into the body of POS-3000. External display
is placed so that its digits are clearly visible to the customer.
The connection is provided for by supplied cable. The display is sup-
plied in versions with/without backlight in tabletop version with
stand.
It is also possible to connect a monochromatic 9" SVGA cashier mon-
itor. ECR has to be equipped with the CRT video module in order

IrDA

Barcode readers

Metrologic MS-951
Portable laser scanner, manual or mounted use, row scanning, RS-232
interface (model 951R), scanning speed 36 rows per second, scanning
distance 8" (205 mm), automatic activation, easy programming, low
cost model, 5 V input voltage, stand is included with the scanner.
