7.3.2
Oil
Prerequisites

Topping up the oil

S
G
Maintenance manual
GMK3060

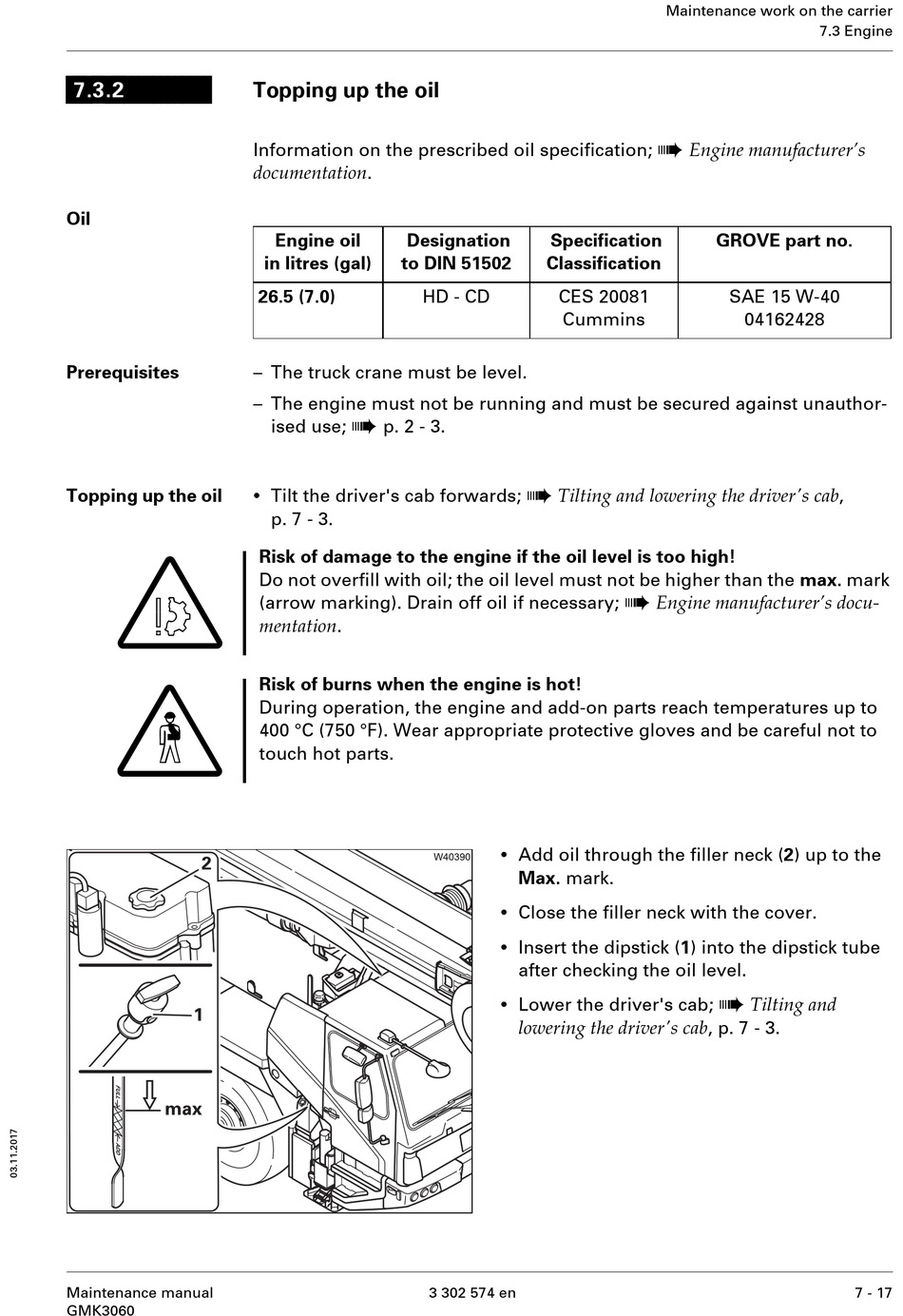

Topping up the oil
Information on the prescribed oil specification;
documentation .
Engine oil Designation
in litres (gal) to DIN 51502
26.5 (7.0) HD - CD
– The truck crane must be level.
– The engine must not be running and must be secured against unauthor-
à
ised use; p. 2 - 3.
•
Tilt the driver's cab forwards;
p. 7 - 3.
Risk of damage to the engine if the oil level is too high!
Do not overfill with oil; the oil level must not be higher than the max. mark
(arrow marking). Drain off oil if necessary;
mentation .
Risk of burns when the engine is hot!
During operation, the engine and add-on parts reach temperatures up to
400 °C (750 °F). Wear appropriate protective gloves and be careful not to
touch hot parts.
Specification
Classification
CES 20081
Cummins
à
Tilting and lowering the driver's cab ,
•
Add oil through the filler neck (2) up to the
Max. mark.
•
Close the filler neck with the cover.
•
Insert the dipstick (1) into the dipstick tube
after checking the oil level.
•
Lower the driver's cab;
lowering the driver's cab , p. 7 - 3.
3 302 574 en
Maintenance work on the carrier
à
Engine manufacturer's
GROVE part no.
SAE 15 W-40
04162428
à
Engine manufacturer's docu-
à
Tilting and
7.3 Engine
7 - 17
