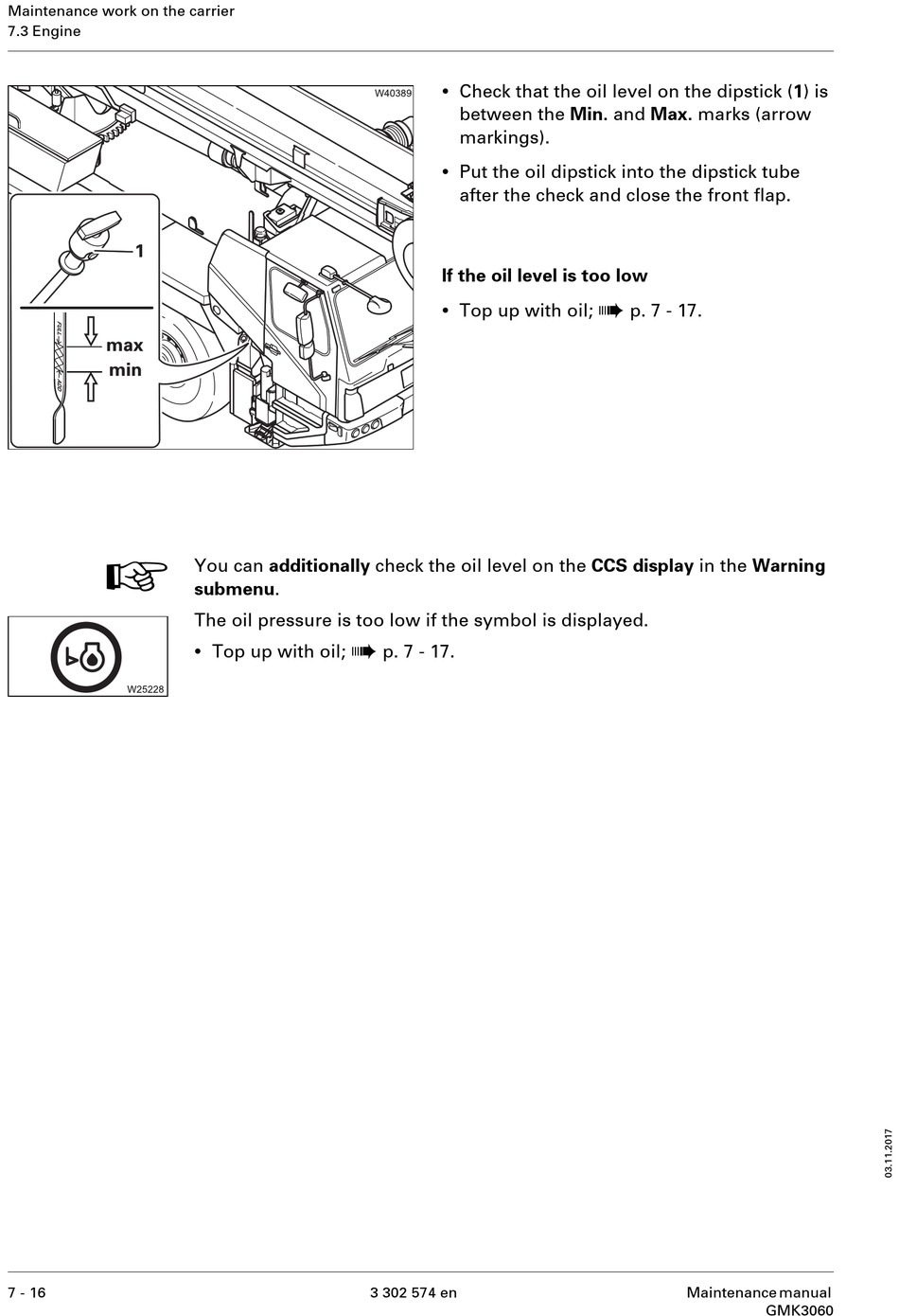

Maintenance work on the carrier
7.3 Engine
H
7 - 16
You can additionally check the oil level on the CCS display in the Warning
submenu.
The oil pressure is too low if the symbol is displayed.
à
•
Top up with oil;
•
Check that the oil level on the dipstick (1) is
between the Min. and Max. marks (arrow
markings).
•
Put the oil dipstick into the dipstick tube
after the check and close the front flap.
If the oil level is too low
•
Top up with oil;
p. 7 - 17.
3 302 574 en
à
p. 7 - 17.
Maintenance manual
GMK3060
