Suspension Struts - Checking The Fastening - Manitowoc GROVE GMK 3060 Maintenance Manual

Maintenance work on the carrier
7.10 Suspension
7.10.2
Spare parts
and tools
Prerequisites
7 - 72

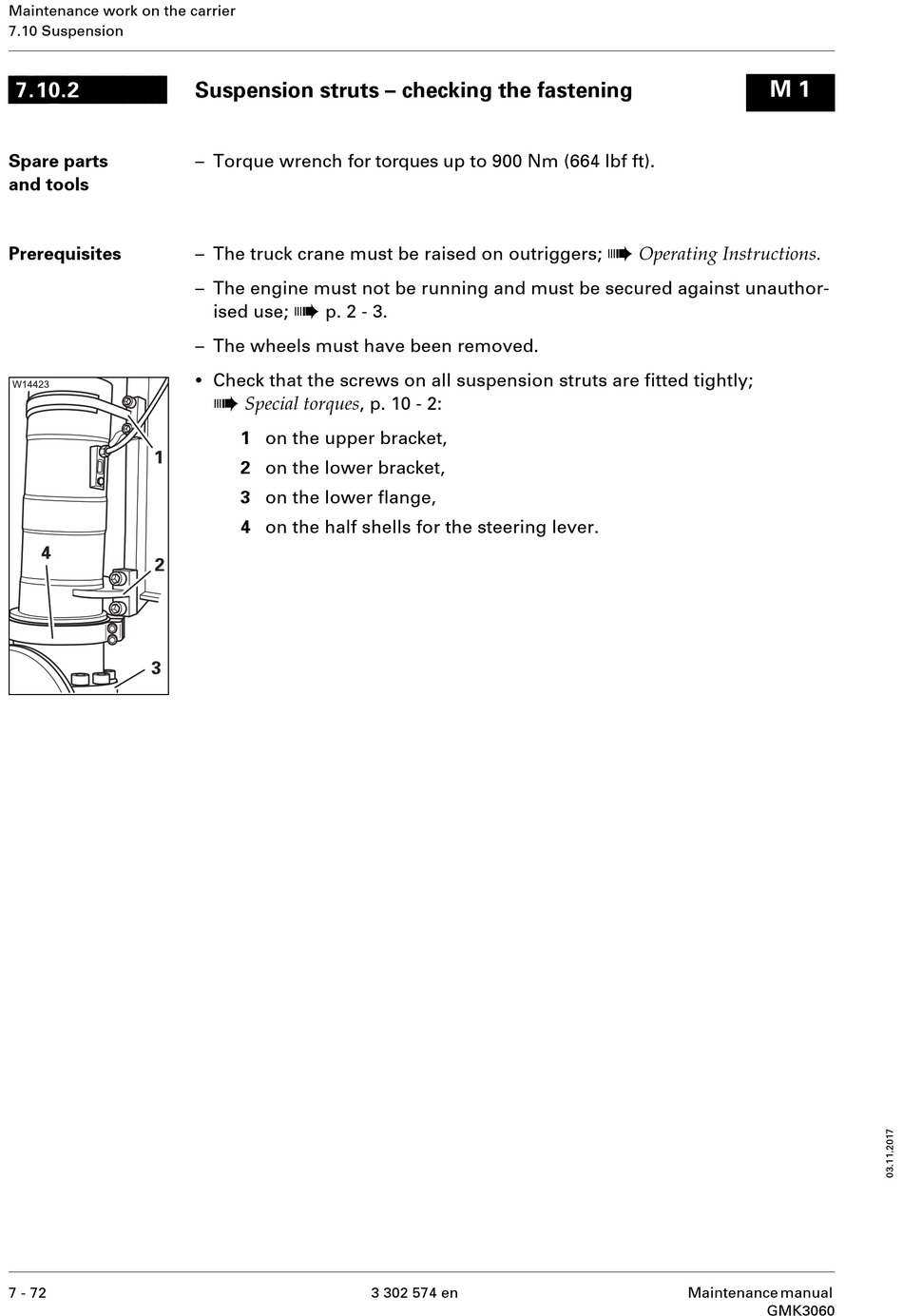

Suspension struts – checking the fastening
– Torque wrench for torques up to 900 Nm (664 lbf ft).
– The truck crane must be raised on outriggers;
– The engine must not be running and must be secured against unauthor-
à
ised use; p. 2 - 3.
– The wheels must have been removed.
•
Check that the screws on all suspension struts are fitted tightly;
à
Special torques , p. 10 - 2:
1 on the upper bracket,
2 on the lower bracket,
3 on the lower flange,
4 on the half shells for the steering lever.
3 302 574 en
M 1
à
Operating Instructions.
Maintenance manual
GMK3060
