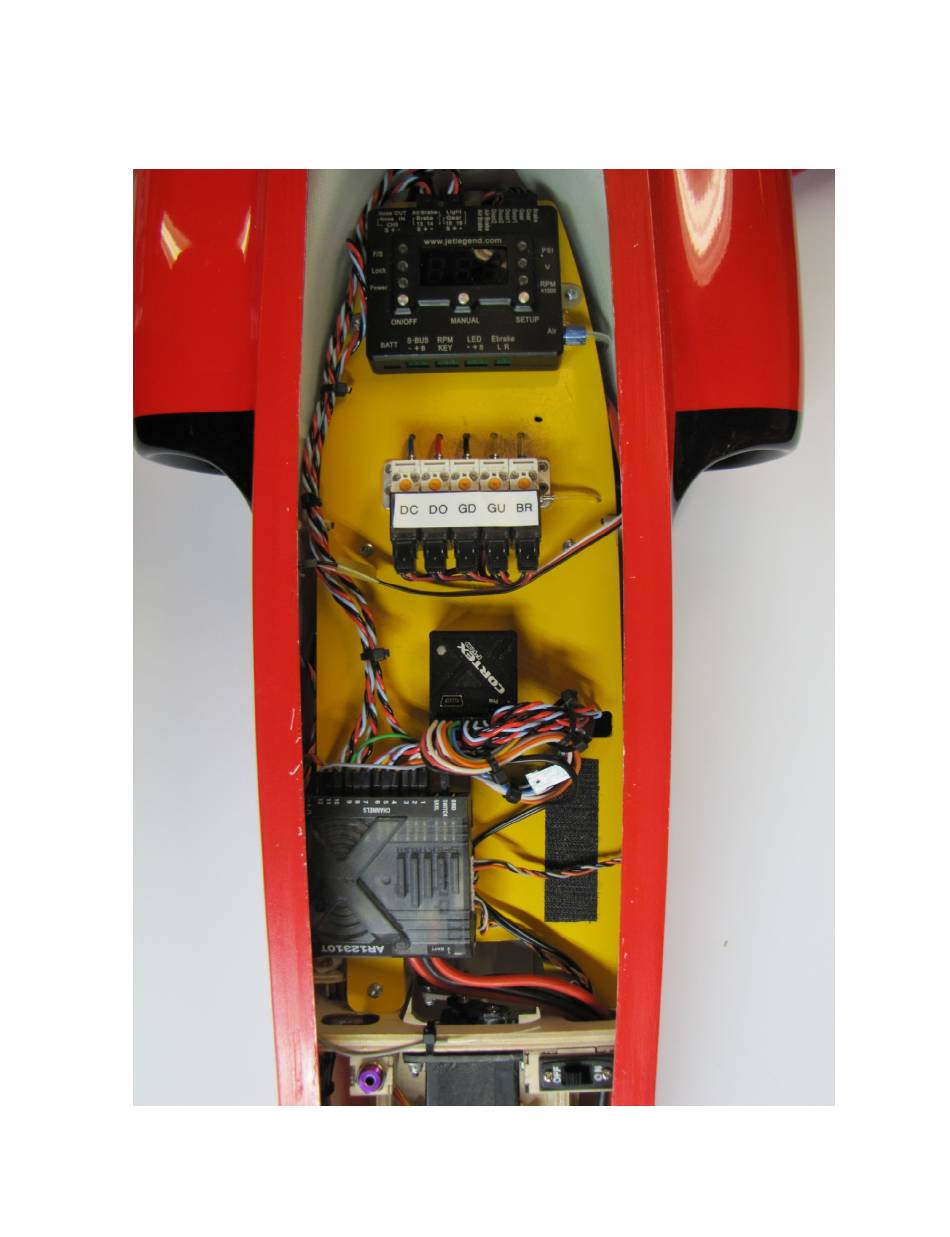

EQUIPMENT BOARD LAYOUT

NOTE: The color of the equipment board will vary with the paint scheme.
Gray- Brake
Blue- Gear Up
Red- Gear Down
White- Door Open
Black-Door Close
BVM ® 2018
Bandit Evo
Assembly & Operation Manual
CENTRAL
CONTROLLER
AIR VALVES
GYRO
RECEIVER
Air Fill Valve
8
RECEIVER
ON/OFF SWITCH
