16
Commissioning
1
the inverter
2
128

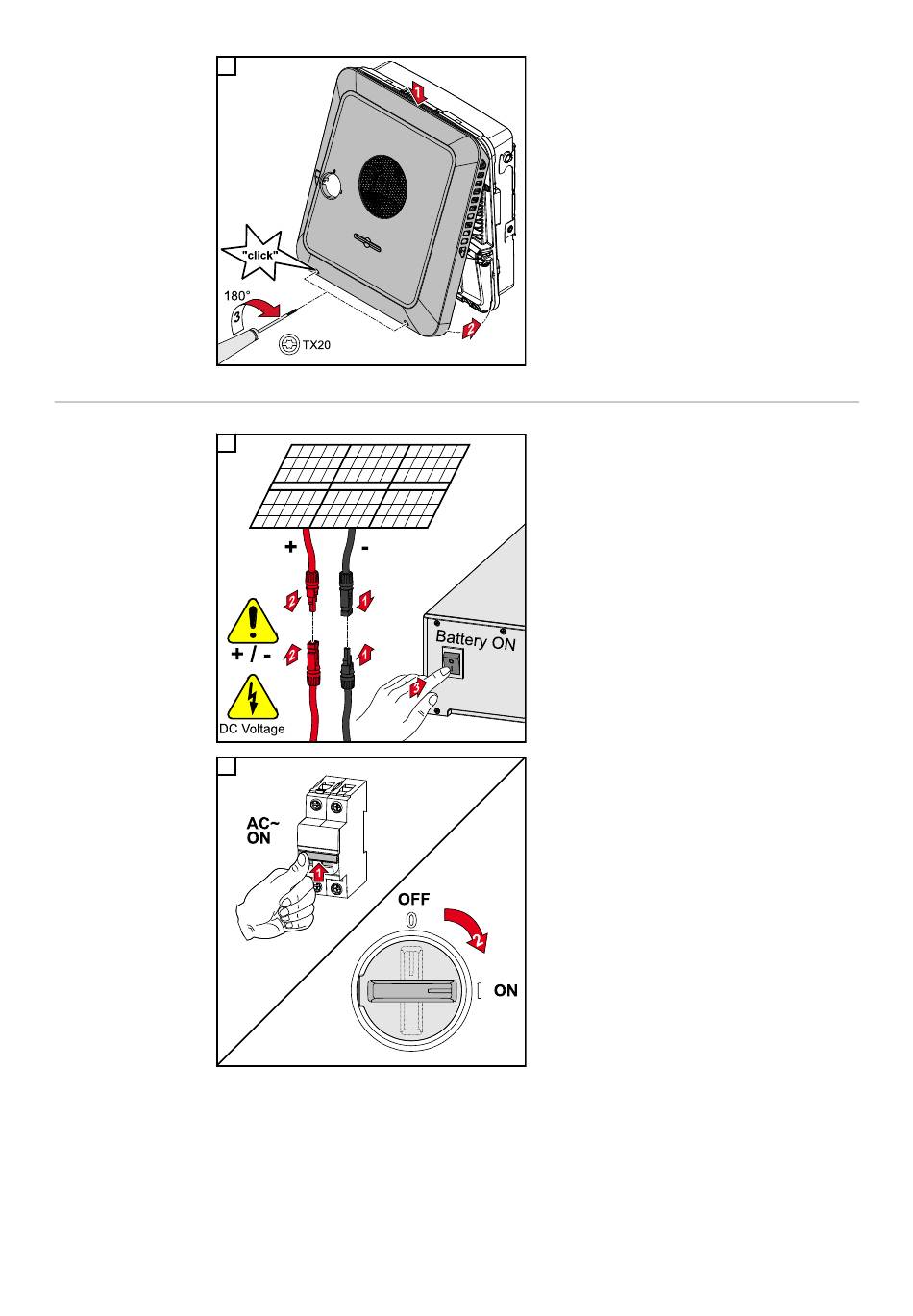

Clip the housing cover onto the inverter
from above.
Press on the lower part of the housing
cover and tighten the two screws by rotat-
ing them 180° to the right using a screw-
driver (TX20).
Connect the solar module strings (+/-).
Switch on the battery connected to the
inverter.
Switch on the automatic circuit breaker.
Set the DC disconnector to the "On" switch
position.
