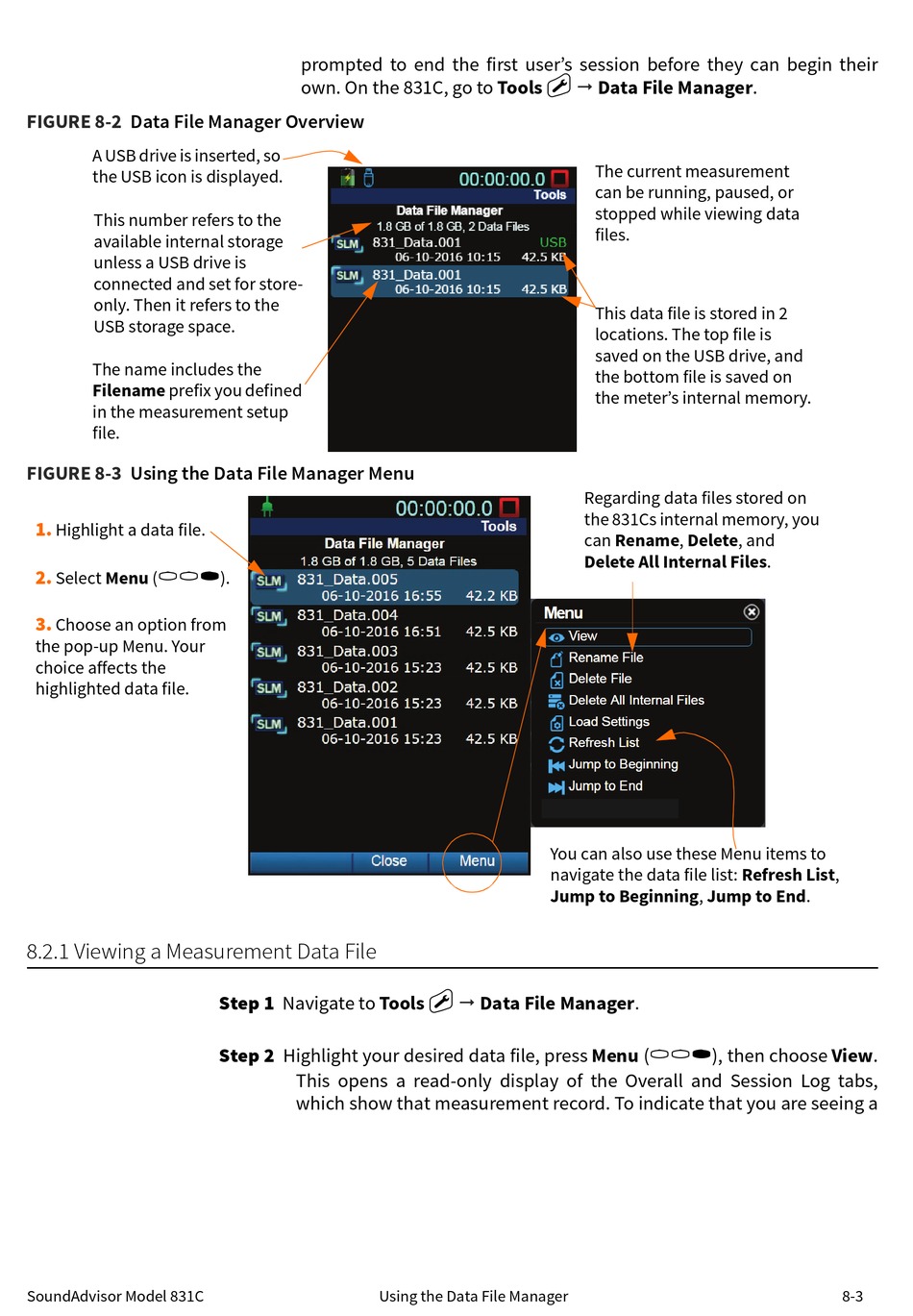

FIGURE 8-2
Data File Manager Overview
A USB drive is inserted, so
the USB icon is displayed.
This number refers to the
available internal storage
unless a USB drive is
connected and set for store-
only. Then it refers to the
USB storage space.
The name includes the
Filename prefix you defined
in the measurement setup
file.
FIGURE 8-3 Using the Data File Manager Menu
1.
Highlight a data file.
//*
2.
Select Menu (
3.
Choose an option from
the pop-up Menu. Your
choice affects the
highlighted data file.
.2.1 Viewing a Measurement Data ile
SoundAdvisor Model 831C
prompted to end the first user's session before they can begin their
own. On the 831C, go to Tools
).
Step 1 Navigate to Tools
Step 2 Highlight your desired data file, press Menu (
This opens a re ad-only display of the Overall and Session Log tabs,
which show that measurement record. To indicate that you are seeing a
Using the Data File Manager
Data File Manager.

The current measurement
can be running, paused, or
stopped while viewing data
files.
This data file is stored in 2
locations. The top file is
saved on the USB drive, and
the bottom file is saved on
the meter's internal memory.
Regarding data files stored on
the 831Cs internal memory, you
can Rename, Delete, and
Delete All Internal Files.
You can also use these Menu items to
navigate the data file list: Refresh List,
ump to Beginning, ump to End.
Data File Manager.

//*
), then choose View.
