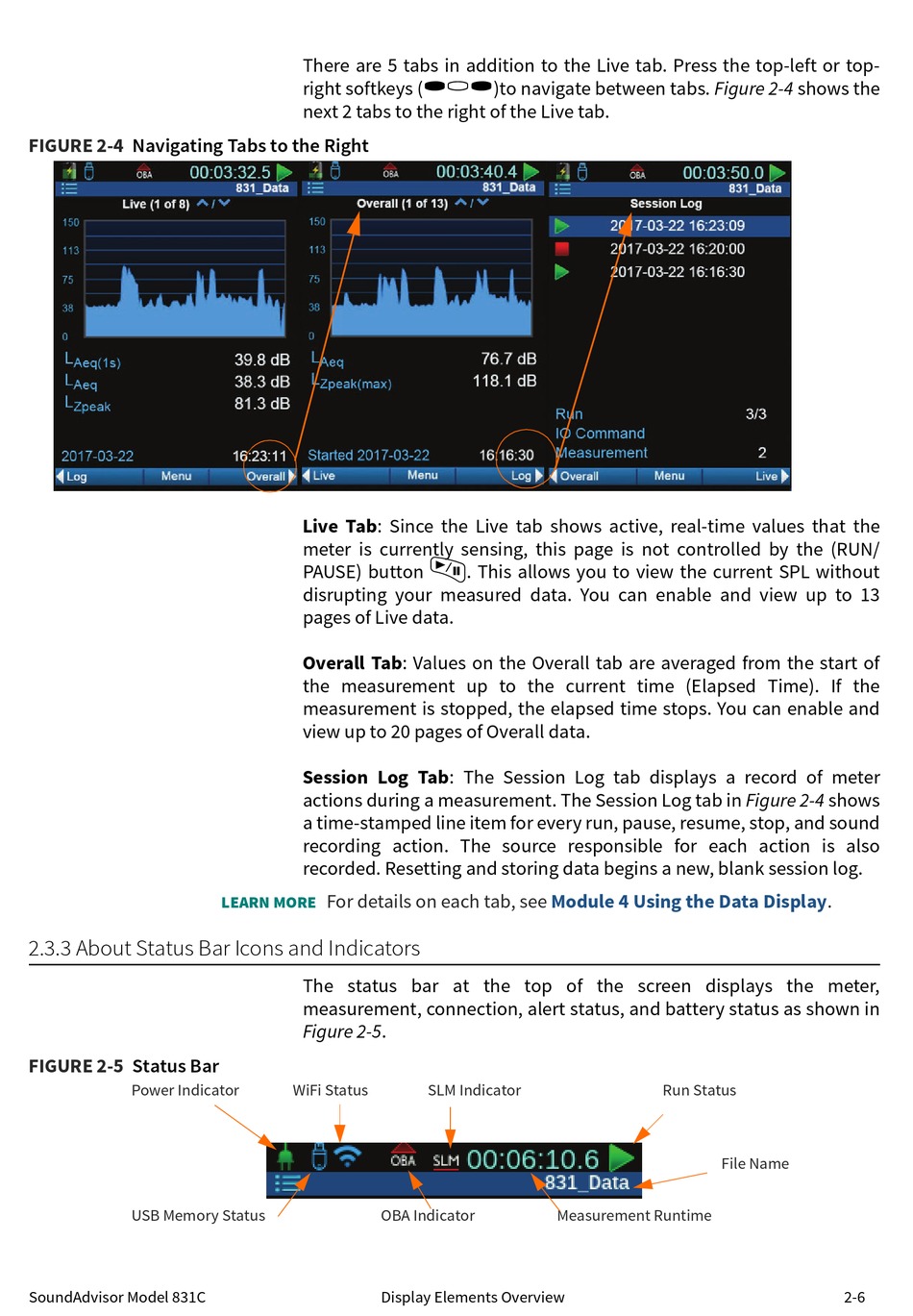

Larson Davis SoundAdvisor Reference Manual page 17

FIGURE 2-4 Navigating Tabs to the Right
2.3.3 About Status Bar cons and ndicators
FIGURE 2-5
Status Bar
Power Indicator
USB Memory Status
SoundAdvisor Model 831C
There are 5 tabs in addition to the Live tab. Press the top-left or top-
right softkeys (
next 2 tabs to the right of the Live tab.
Live Tab: Since the Live tab shows active, real-time values that the
meter is currently sensing, this page is not controlled by the (RUN/
PAUSE) button
disrupting your me asure d data. You can e nable and vie w up to 13
pages of Live data.
Overall Tab: Values on the Overall tab are averaged from the start of
the me asure me nt up to the curre nt time (Elapse d Time ). If the
measurement is stopped, the elapsed time stops. You can enable and
view up to 20 pages of Overall data.
Session Log Tab: The Se ssion Log tab displays a re cord of me te r
actions during a measurement. The Session Log tab in Figure -4 shows
a time-stamped line item for every run, pause, resume, stop, and sound
re cording action. The source re sponsible for e ach action is also
recorded. Resetting and storing data begins a new, blank session log.
For details on each tab, see
LEARN MORE
The status bar at the top of the scre e n displays the me te r,
measurement, connection, alert status, and battery status as shown in
Figure - .
WiFi Status
OBA Indicator
Display Elements Overview
*/*
)to navigate between tabs. Figure -4 shows the
. This allows you to view the current SPL without
Module 4 Using the Data
SLM Indicator
Measurement Runtime
Display.
Run Status
File Name
2-6
