- Page 1 User’s Manual IVA 3015 X...

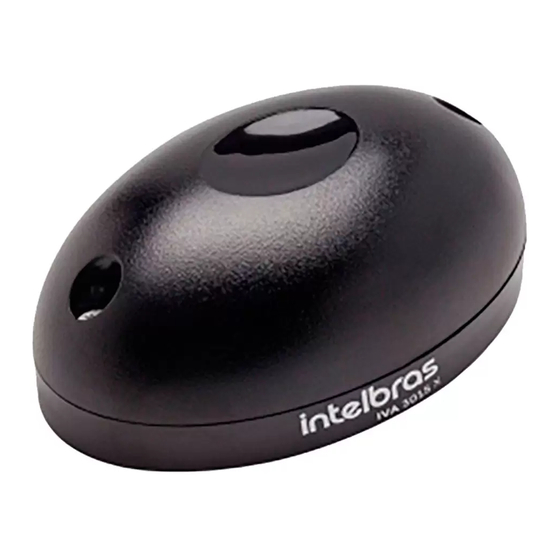

- Page 2 IVA 3015 X Anti-crush sensor Congratulations, you just have purchased a product with Intelbras quality and safety. The IVA 3015 X anti-crush sensor has a hardness that makes it suitable for the most diverse installation scenarios. It can be installed indoors, semi- open and outdoors without degradation of function.
- Page 3 1. Care and safety » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product. » Install the sensor in a stable location that is not subject to flickering.
- Page 4 Transmitter board 1k to 10k » If you need to install more pairs in conditions similar to the one shown below, install the transmitter (TX) and receiver (RX) so that one pair does not influence the other. Correct TX TX Incorrect TX RX Correct...
- Page 5 Summary 1. Technical specifications 2. Features 3. Producto 4. Installation 5. Operation 6. Test Term of Warranty...
- Page 6 1. Technical specifications Supply voltage 12 ~ 24 Vdc Consumption current ≤50 mA @ 12 Vdc Internal 30 m Range External 15 m Configurable output NO/NC Alarm output 1 A @ 24 Vdc 1 A @ 127 Vac Relay opening time 1s or 2,5s ±...
- Page 7 3. Installation 1. Before starting the installation, it is necessary to define the installation height and the distance of the IVA 3015 X sensor. We recommend that this sensor be installed at a height greater than or equal to 50 cm from the floor and the maximum dis- tance between the TX and the RX must be 15 m for external environment and 30 m for internal environment;...
- Page 8 3. Open the sensor by removing the screws on the front of the cover; 4. Remove the base plate; 5. Using a screwdriver, insert the sealing rubber into the three holes located at the bottom of the base. The straight part of the rubber should face the side of the plate;...
- Page 9 6. Attach the plate to the base again; 7. Secure the receiver and the transmitter using the three passage points of the screw located on the base of the product, at a height equal to or greater than 50 cm from the floor with the cable passage facing downwards, the indication arrows on the base must be facing top;...
- Page 10 10. Connect the alarm wires to the gate controller board or to the zone entrance of the control panel; Note .: check the connection method in the manual of the gate being used or of the control panel. The following is an example of connection to an Intelbras alarm panel. Central alarm Receiver Transmitter...
- Page 11 2.5s. Relay output: Factory default NO. Relay opening time: 1s factory default. Placa Receptor Placa Transmissor Receiver board Transmitter board IVA3015X INTELBRAS IVA 3015 X Intelbras V2.0 Receiver board V2.0 Receiver Board 1886406 1886406 LED1 Jumper Jumper Relé...
- Page 12 Term of Warranty It is expressed that this contractual warranty is granted according to the following conditions: Customer name: Customer’s signature: Tax Invoice No. Date of Purchase: Model: Serial No.: Retailer 1. All parts, pieces and components of this product are warranted against any man- ufacturing defects, which may arise within a period of 1 (one) year - being 90 (ninety) days of legal warranty and 9 (nine) months subject to contractual warran- ty - from the date when the Customer purchased the product, according to the...
- Page 13 Customer to regularly make secure backup of the product data. 7. Intelbras is not liable for the installation of this product, as well as eventual at- tempts of fraud and/or sabotage in their products. Keep software and applications up to date, and if necessary, the required network protections against intrusions (hackers).
- Page 14 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
