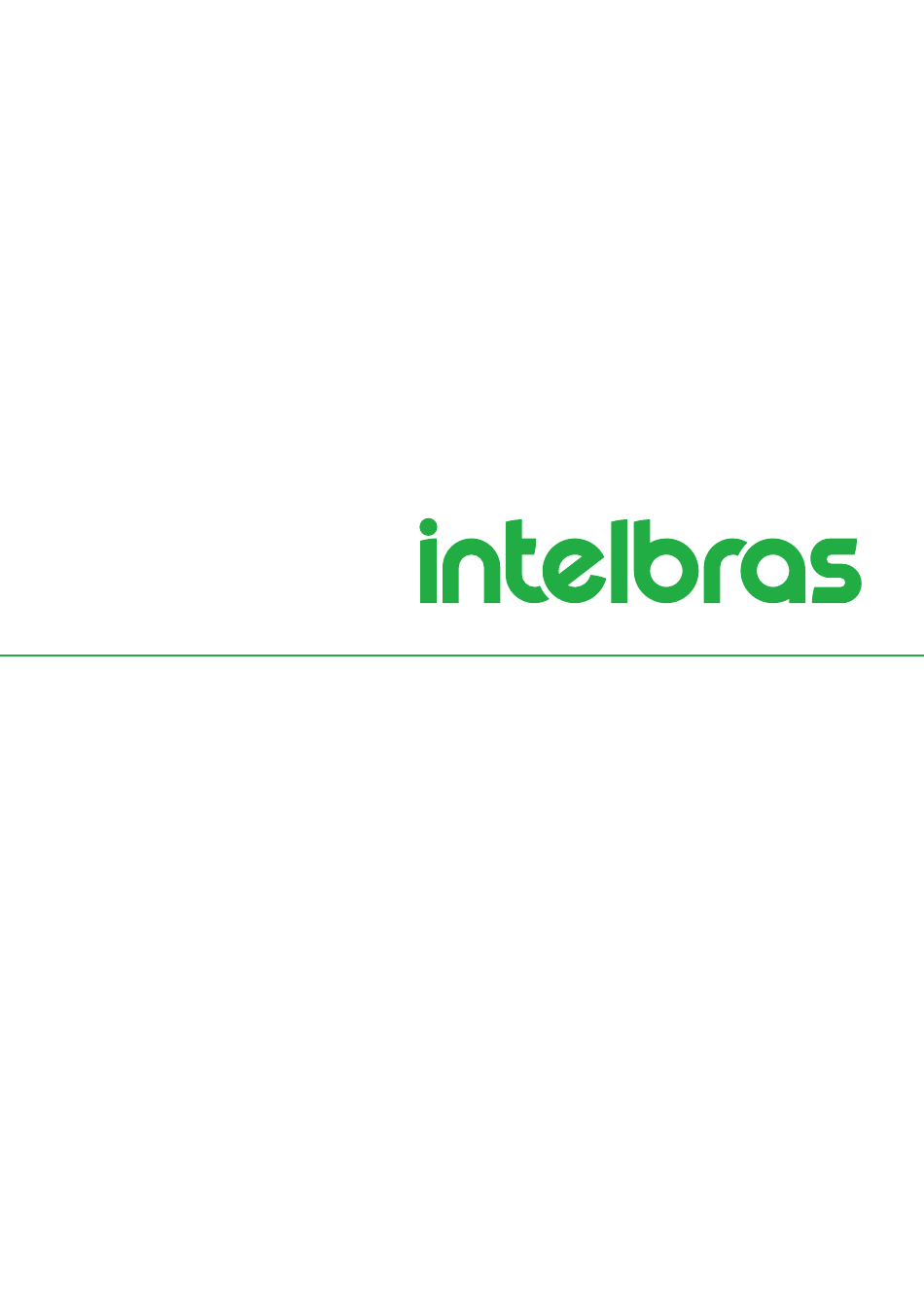

- Page 1 User manual IVA 3070 X IVA 3110 X...

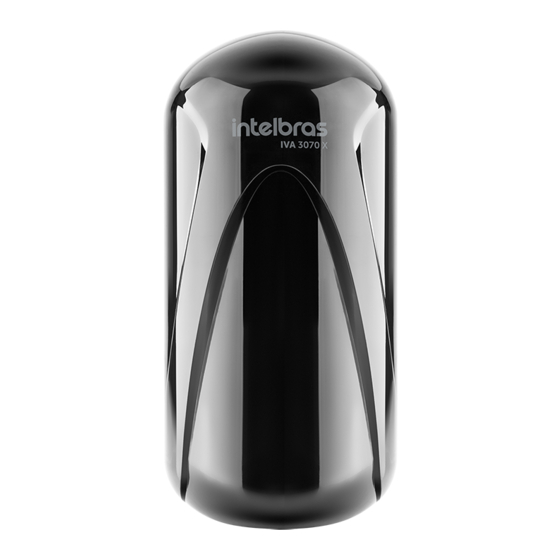

- Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The IVA 3070 X and IVA 3110 X sensors have Automatic Signal Gain Control (AGC) and a Fresnel lens, which guarantee a strong and stable signal. They offer efficient detection via dual pulsed infrared beams and can be powered with either a DC or AC source.
- Page 3 Otherwise, there may be no triggering of alarms. » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.
-
Page 4: Table Of Contents
Summary 1. Technical specifications 2. Product 3. Installing the sensors 3.1. Wall installation ................7 3.2. -
Page 5: Technical Specifications
1. Technical specifications Model IVA 3070 X IVA 3110 X External 70 m 110 m Range Internal 190 m 310 m Beam characteristics Dual pulsed infrared beam Detection method Detection by simultaneous obstruction of the beam Response time 50 - 1400 ms Alarm Period ≥2s depending on the beam obstruction time... -
Page 6: Product
Longitudinal protection Longitudinal protection Model Side protection distance Side protection distance distance distance IVA 3070 X 70 m 35 m 2.5 m IVA 3110 X 110 m 55 m Note: this sensor has high immunity to false triggering with fog, however, triggering can occur depending on the density of the fog or fog in the environment. -
Page 7: Wall Installation
Protection Distance Side (PDS) installation 3.1. Wall 1. Loosen the screw and remove the front cover; 2. Mark the installation holes and drill the guide holes. Side or top / bottom holes can be used for wall mounting as shown in the figure below;... -
Page 8: Pole Installation
3. Tear the rubber film on the back of the sensor and pass the wires through the hole; Do not remove the rubber film it is the guarantee of sealing against water and insects. 4. Mount the sensor on the wall. 5. -
Page 9: Beam Alignment
Transmitter Receiver IVA sensors can be used in conjunction with the Intelbras family of alarm panels. To connect these sensors to our line of alarm panels, follow the steps: » Supply the sensor with an external power supply DC 12 ~ 24 V or AC 11 ~ 18 V. If you do not have a source, use the auxiliary output of our control units;... -
Page 10: Beam Alignment Display
The desirable voltage values must be between 3 and 4 Vdc. Sensor oposto visto pela mira Opposite sensor seen through the sight » Visual adjustment is considered “coarse adjustment” due to the fact that the small mirrors used in the sensor sights may be slightly misaligned. -
Page 11: Tests
Beam adjustment by reception level (receiver only) External Internal Reception level (alignment) location location 3.1 V or more Excellent Excellent 2.8 V or more Good Weak 2.5 V or less Good (Realign) 2.0 V or less weak (realign) (Realign) 1.5 V or less bad (Realign) 1. -
Page 12: Frequently Asked Questions
6. Frequently asked Questions Question Possible cause Solution The transmitter LEDs do not light Inadequate voltage Check power and cables Receiver LEDs do not light Inadequate voltage Check power and cables The beams are being reflected to the receiver by Remove the reflecting object or change the direction another object of the beam... -
Page 13: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 14 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
