- Page 1 User’s Manual IVA 5015 digital...

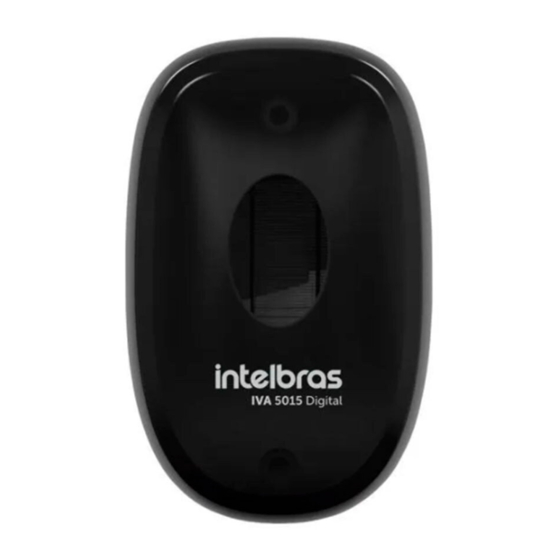

- Page 2 Congratulations, you just have purchased a product with Intelbras quality and safety. IVA 5015 Digital sensor was developed with a digital circuit for signal processing that can identify the pair of transmitter-receiver more effectively in order to avoid external interferences. It can be installed at indoor, half-open or outdoor environ- ments without performance loss, preventing false shots in several applications.
- Page 3 Caution and safety » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, trans- fer, capture, or perform any other type of treatment of personal data from this product. » Install the sensor in a stable and shake-free place.
- Page 4 Placa Transmissor Transmitter board 1K a 10K 1K a 10K » If you need to install more pairs in similar conditions as shown below, install the transmitter (TX) and receiver (RX) making sure a pair does not affect one another. Correto Correct TX TX...
- Page 5 Summary 1. Technical specifications 2. Product 3. Installation Term of Warranty...
- Page 6 1. Technical specifications Power supply voltage 12 ~ 24 Vdc Consumption current ≤50 mA @ 12 Vdc Internal 30 m Reach External 15 m Configurable NO/NC output Alarm outlet 1 A @ 24 Vdc 1 A @ 127 Vac Relay opening time 1s or 2,5s ±...
- Page 7 50cm ≥ 50 cm 2. If there area more than one IVA 5015 Digital infrared transmission (TX) source at the installation location, follow the vertical protection distance (VPD) and the horizontal protection distance (HPD), according the following table, in order to prevent interference to the receiver (RX);...
- Page 8 3. Open the sensor removing the bolts in the front part; 4. Remove the front cover pulling forward; 5. Pass the cable through the orifice and connect it to the terminal block; RECEIVER RECEPTOR 12V GND ALARME TRANSMISSOR TRANSMITTER Cable GND 12V Cabo...
- Page 9 8. Connect the alarm wires in the gate controlling board or in the alarm center zone input; Note: check in the gate manual or alarm center, which is the connection mode is used. An example of connection to Intelbras alarm center is shown below. VCC GND VCC GND...
- Page 10 » Relay output: NA (normally open) factory standard. » Relay opening time: 1st factory pattern. Placa Receptor Placa Transmissor Receiver board Transmitter board IVA 5015 DIGITAL V1.0 Receiver Board LED1 Jumper Relé Jumper Relay NA / NF NA / NF...
- Page 11 Term of Warranty It is expressed that this contractual warranty is granted according to the following conditions: Customer name: Customer’s signature: Tax Invoice No. Date of Purchase: Model: Serial No.: Retailer 1. All parts, pieces and components of this product are warranted against any man- ufacturing defects, which may arise within a period of 1 (one) year - being 90 (ninety) days of legal warranty and 9 (nine) months subject to contractual warran- ty - from the date when the Customer purchased the product, according to the...
- Page 12 Customer to regularly make secure backup of the product data. 7. Intelbras is not liable for the installation of this product, as well as eventual at- tempts of fraud and/or sabotage in their products. Keep software and applications up to date, and if necessary, the required network protections against intrusions (hackers).
- Page 13 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
