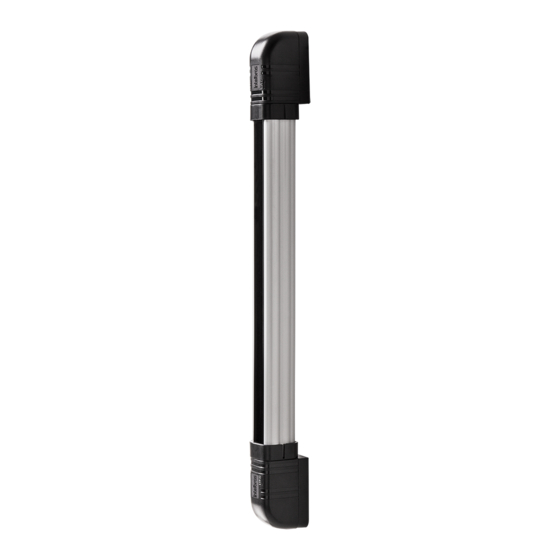

- Page 1 User manual IVA 7100 Dual IVA 7100 Quad IVA 7100 Hexa IVA 7100 Octa...
- Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The IVA 7100 Dual, Quad, Hexa and Octa multi-beam sensor family was designed to provide an in- frared barrier capable of covering a larger area (height × length of the barrier). These sensors can be installed indoors, semi-open and outdoors without degradation of functioning, that is, without causing unwanted triggering.
- Page 3 » Install the transmitter and receiver so that they are aligned; » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.
- Page 4 » For installing sensors in perimeters, always follow the sensor layout below: Channel A Channel B Channel B Channel B Channel A Channel A Channel B Channel A » In order to avoid interference between sensors on the same channel, respect the side protection distance as specified below.
- Page 5 » The Synchronism function must be used to increase the robustness of the infrared barrier. It is enabled by removing jumper J2 from the RX and connecting the SINC (Synchronism) terminals of the RX and TX through a standard cable for alarm systems (not supplied with the product).
-
Page 6: Table Of Contents
Summary 1. Technical specifications 2. Product 3. Installation 4. Troubleshooting Warranty term... -
Page 7: Technical Specifications
3.8 × 140 × 5 Weight 0.73 kg 1.1 kg 1.4 kg 1.6 kg In the IVA 7100 DUAL model, if the SINC (Synchronism) cable is not connected, it will trip if the upper beam is interrupted individually in both alignment and continuous mode. -
Page 8: Product
2. Product 3. Installation 1. For security reasons, it is necessary to open the sensors to identify which is the transmitter and which is the receiver. Below, the step by step to open the sensor cabinet and perform the necessary identification; a. - Page 9 Transmitter With Jumper - Frequency Channel A - (Factory default) Frequency channels Without Jumper - Frequency Channel B With Jumper - Tamper disabled (Factory default) Tamper Without Jumper - Tamper enabled Jumper in L Position - High Power (Factory default) Jumper in Position M - Medium Power Power Jumper in Position C - Low Power...
- Page 10 Terminals LED - alignment and trigger LED - Alinhamento e Disparo Jumper Buzzer Receiver (RX) Frequency channels Relay Jumper Synchronism Tamper switch Power Levels Tamper It is necessary to remove the receiver board to access the Configuration Jumper and disable the Buzzer. Follow the steps below to perform this configuration: 1.
- Page 11 7. With the sensor in Alignment Mode, perform the procedure described below to align the sensors: If the IVA 7100 DUAL model is in Sync Function (SINC cable connected), it will follow the stan- dard alignment procedure. However, if the SINC cable is not connected, alignment should only be carried out by interrupting the lower beam, as the buzzer will always sound continuously when interrupting the upper beam.
-
Page 12: Troubleshooting
f. The alignment is only considered efficient if the buzzer always sounds pulsed and the led blinks steadily when individually inter- rupting the beams; g. After alignment, tighten the screws at the ends to fix the alignment position; h. Change the Power Jumper to L (maximum power), this ensures a greater intensity of the infrared signal. Perform walking tests at various points on the barrier to make sure that there is no reflection from the infrared beams on the floor, wall or reflective objects. -
Page 13: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 14 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
