9.0 MONSOON RC DRAWING & PARTS LIST
TO
POWER
CABLE
TO TFT
ER NOZZLE
MALE PLUG
TO HORIZONTAL
GEAR MOTOR
TO VERTICAL
GEAR MOTOR
# DESCRIPTION
1 CABLE FITTING PG11
2 CABLE FITTING PG9
3 ENCLOSURE - BOX
4 LOCKNUT - PG9
5 LOCKNUT - PG11
6 BOARD - COMMUNICATION
7 ENCLOSURE - LID
8 CONTROL SWITCH PAD
9 BOARD - MOTOR CONTROL
10 BOARD - MAIN
11 V10-32 x 1/4 SET SCREW
12 O-RING-018
13 CONDUIT HOSE FITTING
14 FEMALE PLUG - 2 POLE
FOR MONSOON RC NOZZLE CONNECTION
©Copyright Task Force Tips, Inc. 2004-2005
3
2
1
13
14
6
5
4
10
12
11

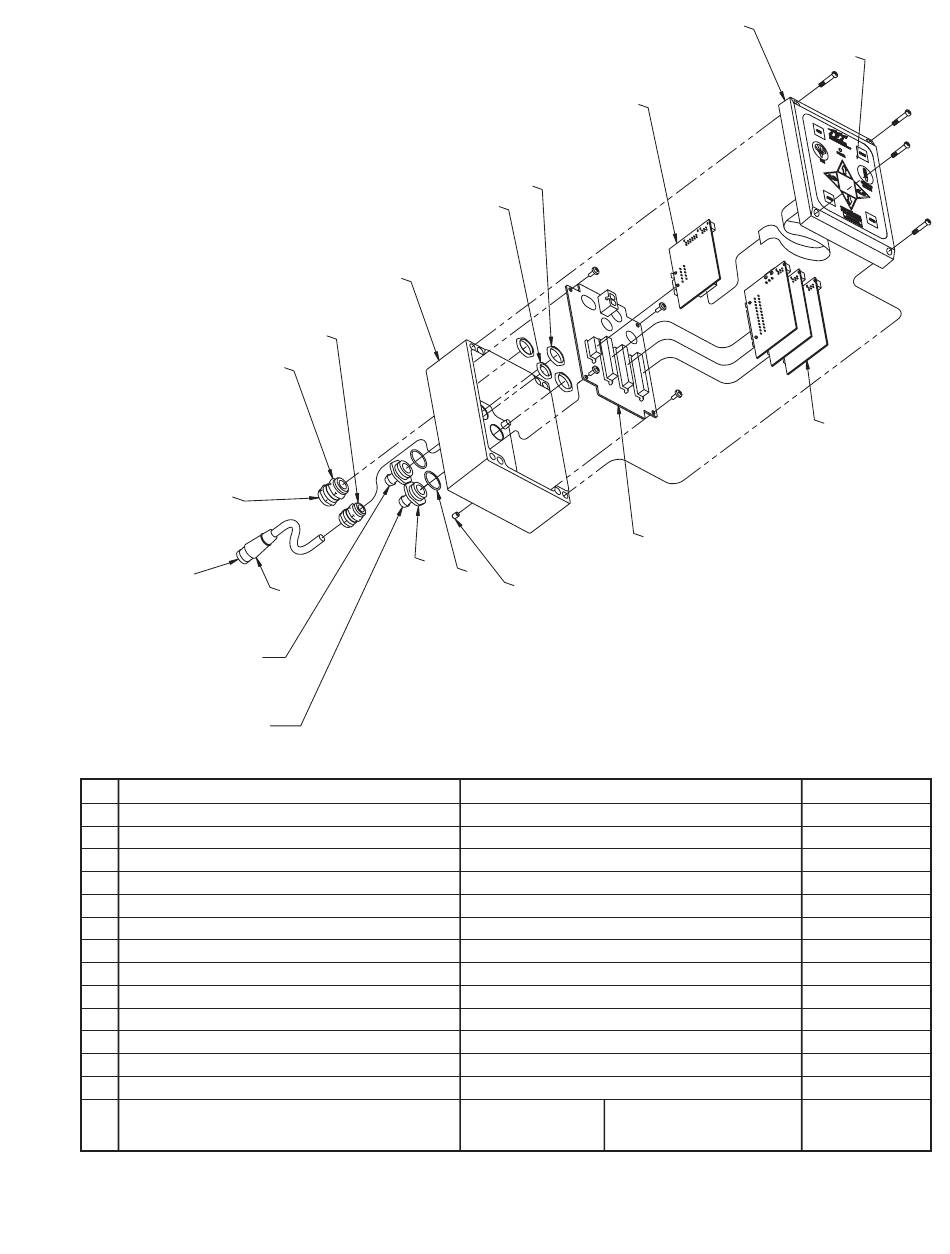

Fig 9.0A
Monsoon Monitor
Control Box Assembly
QTY.
1
1
1
1
3
1
1
1
3
1
1
2
2
28 .0" TOTAL 23.0" EXPOSED CABLE
LENGTH USED (NOT INCLUDING PLUG)
35
7
8
9
PART NO.
Y5205
Y5245
Y5115
Y5246
Y5206
Y5110
Y5115
Y5700
Y5100
Y5105
VT10Y32SS250
VO-018
Y5213
Y5280
LIY-200 September 14, 2005 Rev02
