5.1 PRIMARY MONITOR OPERATOR STATION

This operator station will include the wiring connections for the
cable from the monitor and the incoming power. In many
installations this operator station will also include the wiring
connections for the wireless, joystick, or tether operator station. The
enclosure is designed to be recess mounted in a panel.

5.1.1 MOUNTING

Select proper operator location. Panel space required will be 5-5/8"
x 8" (142 x 200mm). A depth of 3 1/2" (89mm) will be required
behind the panel. Additional space will be required where the cables

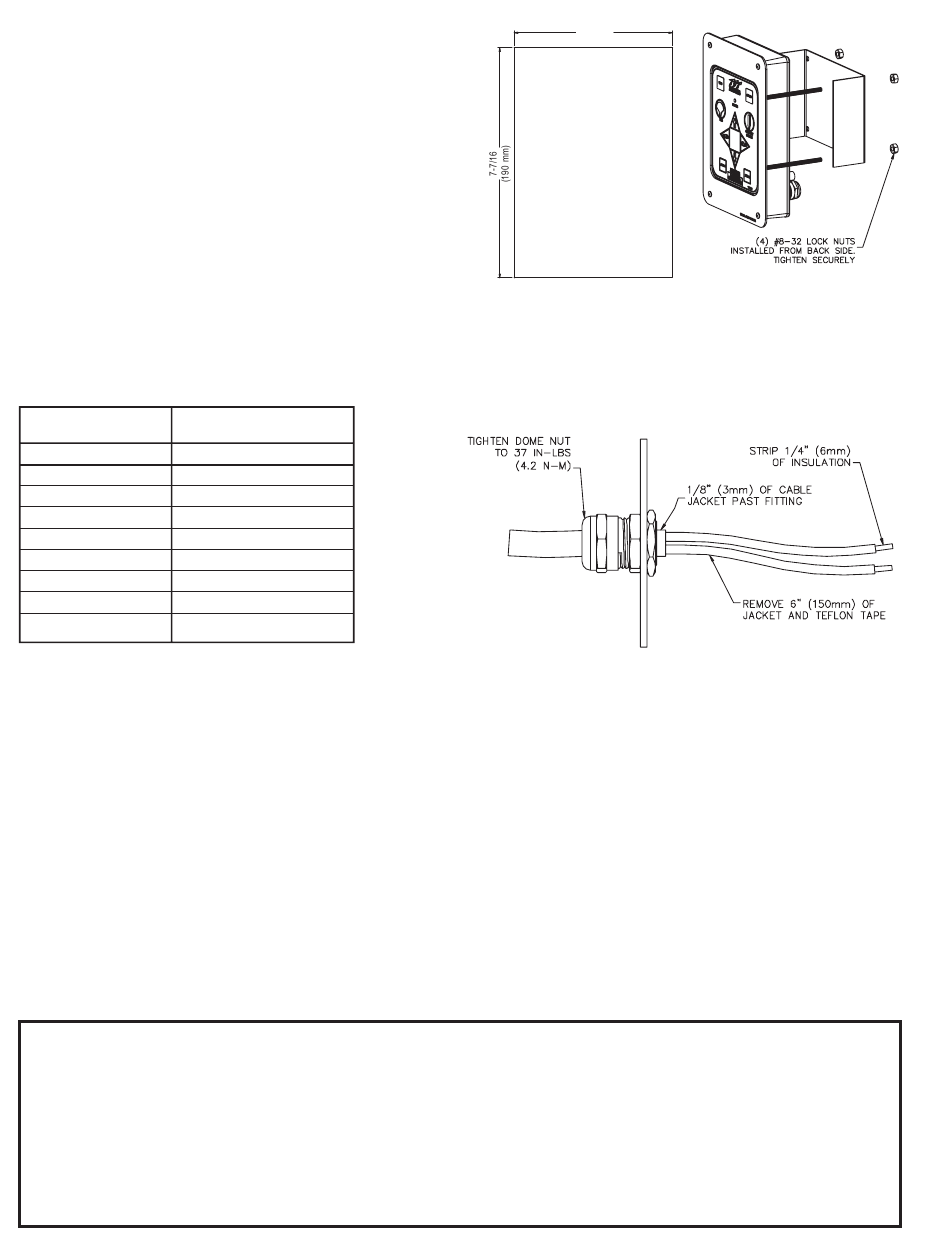

exit the back of the enclosure. Refer to Figure 5.1.1 for cutout
dimensions.

5.1.2 ELECTRICAL WIRING

After selecting and mounting the desired operator stations, refer to Figures 5.1.2B-E for wiring connections. Refer to Figure 5.1.2A for
typical cable preparation. Be sure to tighten all terminal block screws securely.
Receiver Cable Termination Point In
Wire Color
RED
BLACK
GREEN/BLACK
WHITE/BLACK
WHITE
ORANGE/BLACK
BLUE
ORANGE STRAIGHT STREAM
GREEN
Fig 5.1.2
Wireless Operator Station
Wiring Color Code
FROM/TO MONITOR OR OPERATOR STATION
Refer to Figure 5.1.2B for connections.
FROM/TO TETHER OR OPT.
Remove rubber plug in hole labeled WIRELESS OPER. STATION and discard. Refer to Figure 5.1.2C for connections.
WIRELESS OPERATOR STATION
Plug end of cable with Deutsch connector into gray receptacle on receiver. Make sure connector snaps into place.
Remove rubber plug in hole labeled WIRELESS OPER. STATION and discard.
Refer to Figure 5.1.2D for connections. Refer to Figure 5.1.2 for wire color designations.
MAIN POWER CONNECTION TO TRUCK
Route cable and connect to a protected circuit from the truck's power distribution center. Connect the red wire to positive and
the black wire to negative (ground). Refer to Figure 5.1.2E for connections.
IMPORTANT!!
When mechanical installation and electrical connections are complete, perform the following test to verify voltage supply is adequate
and the current limiting feature is functioning.
1) Apply power to monitor control box.
2) Press LEFT or RIGHT button and hold until monitor reaches its stop position. Continue to hold button down.
3) Once movement is stopped, manually turn override knob in opposite direction while continuing to hold button down. If knob
can be turned, then voltage supply is adequate. If knob cannot be turned and motor continues to operate, then the voltage
supply or wiring is not adequate. Check connections and voltage connection point, rewire if necessary. NOTE: Override
knob will only turn in one direction.
©Copyright Task Force Tips, Inc. 2004-2005
Operator Station
RED (+)
BLACK (-)
UP
DOWN
LEFT
RIGHT
FOG
NOT USED (CUT)
OPERATOR STATION
5-1/8
(130 mm)
Primary & Optional Operator Stations Cutout Dimensions
NOTE: CABLE IS GEL FILLED TO
PREVENT MOISTURE WICKING
INTO ENCLOSURE. GEL IS NON-
HAZARDOUS AND SHOULD BE
WIPED OFF CONDUCTORS
WITH RAG.
Typical Cable Preparation
16
Fig 5.1.1
Fig 5.1.2A
LIY-200 September 14, 2005 Rev02
