INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
WARNING
NOTICE
SHO-FLOW 1
50-300 GPM
TASK FORCE TIPS LLC
MADE IN USA • TFT.com
©Copyright Task Force Tips LLC 2019
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number
This equipment is intended for use by trained and qualifi ed emergency services personnel for
fi refi ghting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ)
This instruction manual is intended to familiarize fi refi ghters and maintenance personnel with
the operation, servicing, and safety procedures associated with this product. This manual
should be kept available to all operating and maintenance personnel.
SHO-FLOW 2
LOW FLOW
100-500 GPM
MANUAL: SHO-FLOW
Flow Meter Operations
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
®

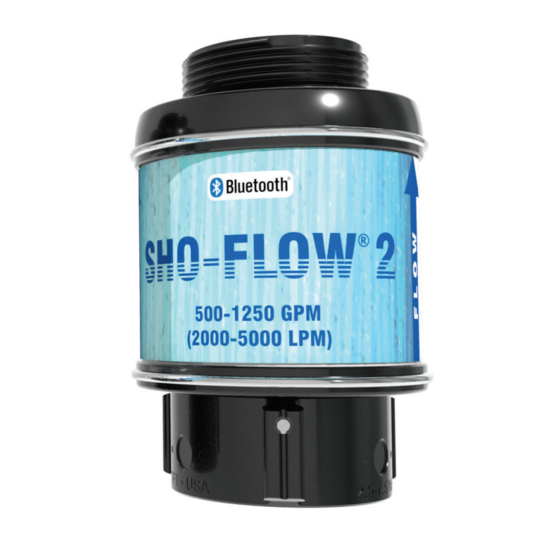

SHO-FLOW 2
HIGH FLOW
500-1250 GPM
LIE-100 December 30, 2019 Rev04
Advertisement
Table of Contents
Related Manuals for Task Force Tips SHO-FLOW 1
Summary of Contents for Task Force Tips SHO-FLOW 1
- Page 1 LOW FLOW HIGH FLOW 100-500 GPM 500-1250 GPM TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • TFT.com ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04...
- Page 2 6. Failure to follow these guidelines may result in death, burns or other severe injury. Fire and Emergency Manufacturers and Service Association FEMSA P.O. Box 147, Lynnfi eld, MA 01940 • www.FEMSA.org ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04...
-
Page 3: Table Of Contents
This device is not rated as ignition proof, explosion proof, or intrinsically safe. Use only in WARNING locations with adequate ventilation and no hazard of fl ammable vapor buildup. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... -
Page 4: General Information
MADE IN USA TFT.COM OPERATING PRESSURE (200-1200 LPM) 300 PSI (20 BAR) PATENT PENDING PATENT: 9,295,863 UNIQUE DEVICE NAME/SERIAL NUMBER INLET THREADS OUTLET THREADS DIRECTION OF FLOW Figure 3.1 ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... -
Page 5: Specifications
3.3 COUPLINGS The SHO-FLOW 1 is off ered with standard hose threaded connections: 1.5” NH, 1.5” BSP, or 1.5” NPSH. The SHO-FLOW 2 is off ered with standard hose threaded connections: 2.5” NH, 2.5” BSP, or 2.5” NPSH. Inlets are rigid female threaded couplings. Fluid is sealed using a hose gasket. -
Page 6: Installation
4) If a Bluetooth connection has not already been set up refer to section 5.2. 5) Once a connection is established the fl ow rate will be displayed on the Flow Display screen (Section 5.1) ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... -
Page 7: Flow Display
Press the UNPAIR button on the Wireless Connection page • Completely close the app 1) To access this screen press the MENU button. 2) Then press the BLUETOOTH CONNECTION button. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... -
Page 8: Establishing A Bluetooth Connection
NOTE: The app will remember this device name. At start up or anytime it is disconnected, it will automatically search and connect to that device if it is available. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... -
Page 9: Settings
Flow Display screen. To hide this information on the Flow Display screen press the toggle button which will hide the pressure loss information until it is enabled again by the user. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... - Page 10 App Revision will always be displayed. Reset Totalizer When resetting the totalizer to zero, a connection to the desired SHO-FLOW is required. Press the Reset button and the totalizer will begin again at zero. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04...
-
Page 11: Calibration
Note: If the pressure reading is out of range adjust the valve until you get a reading in the range to activate calibration option. • Always calibrate for both the low and high end fl ows to ensure the best possible accuracy. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... - Page 12 fi eld (max 20 characters). In this example we renamed the Remote Discovery Name to “Engine 1”. The reset name button will reset the Remote Discovery name to the SHO-FLOW Bluetooth Device name. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04...
-
Page 13: Establishing A Remote Viewer Connection
• The Device Name will update to the connected device. • The status will update to Linked. • The SHO-FLOW type will be displayed. 4. To disconnect, press the End Connection button. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... -
Page 14: Establishing A Broadcaster Connection
If you are still encountering any issues it may be necessary to restart the App. If none of the above work, a restart of your device may be necessary. ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04... -
Page 15: Warranty
8.0 WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the fi... -
Page 16: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • TFT.com ©Copyright Task Force Tips LLC 2019 LIE-100 December 30, 2019 Rev04...
