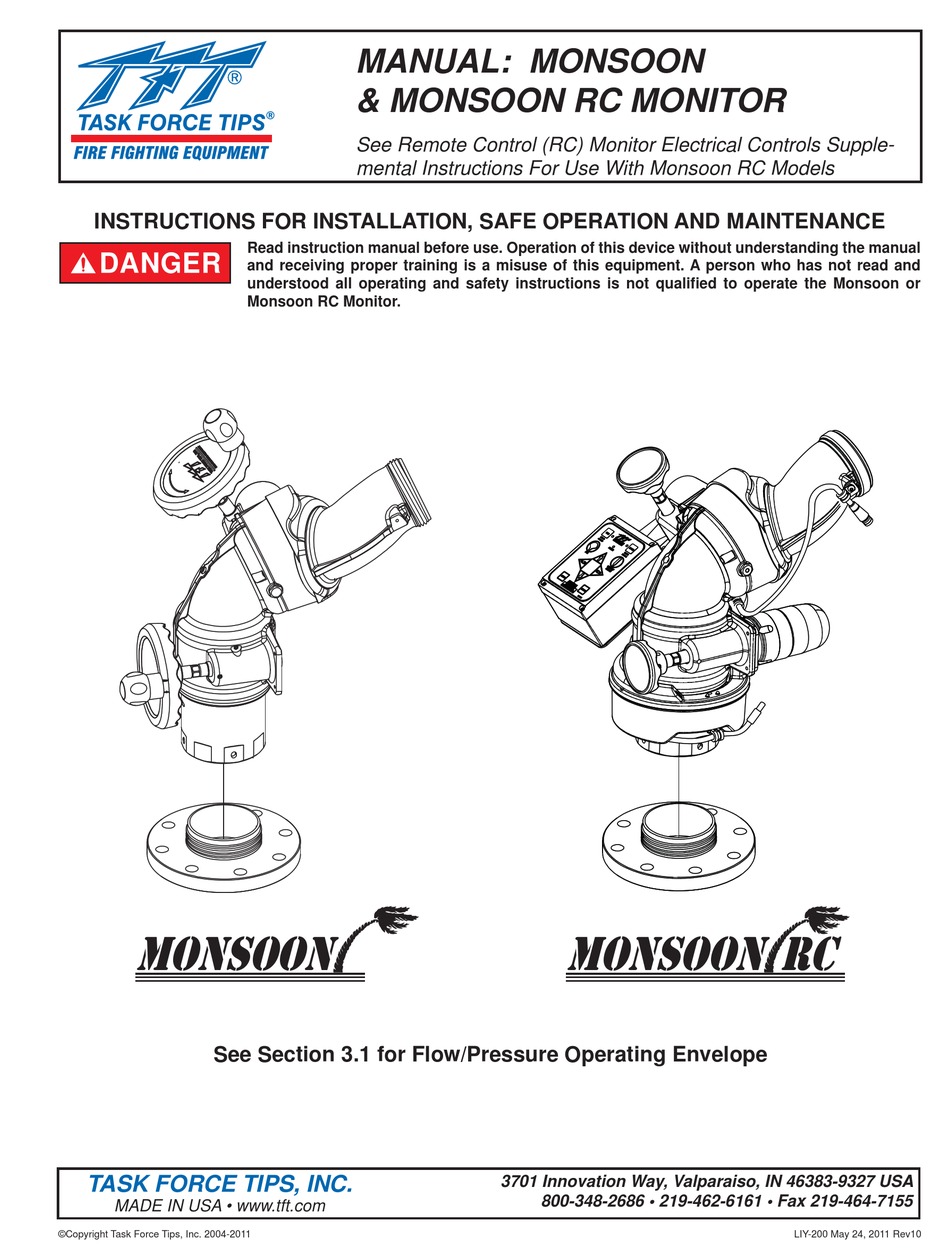

INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
DANGER
monsoon
See Section 3.1 for Flow/Pressure Operating Envelope
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2004-2011
MANUAL: MONSOON
& MONSOON RC MONITOR
See Remote Control (RC) Monitor Electrical Controls Supple-
mental Instructions For Use With Monsoon RC Models
Read instruction manual before use. Operation of this device without understanding the manual
and receiving proper training is a misuse of this equipment. A person who has not read and
understood all operating and safety instructions is not qualifi ed to operate the Monsoon or
Monsoon RC Monitor.
monsoon rc
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIY-200 May 24, 2011 Rev10
