Task Force Tips MONSOON Instructions For Installation, Safe Operation And Maintenance page 17

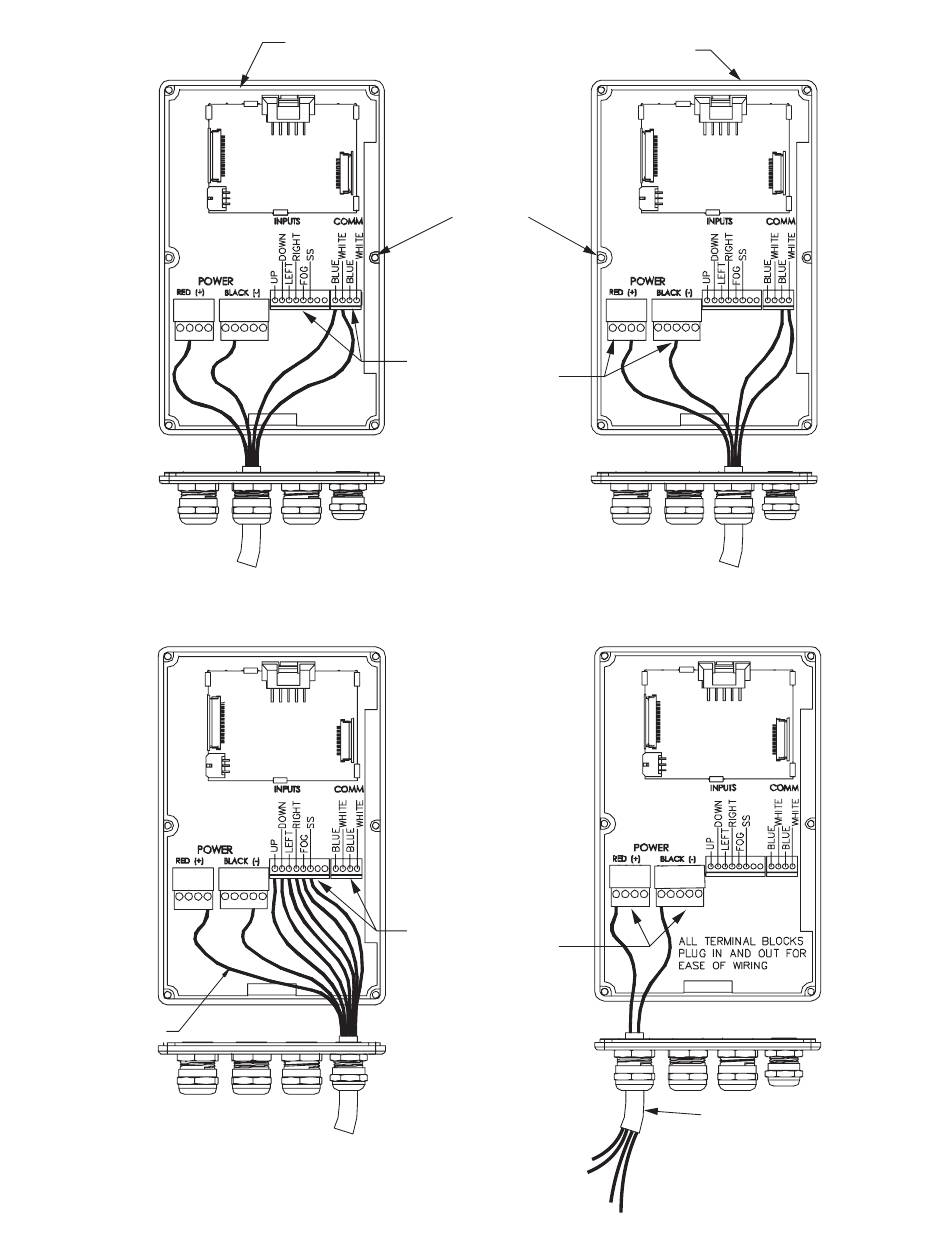

From/To Monitor Or Operator Station Connections
WIRELESS
STATION ONLY
WIRELESS OPERATOR STATION.
JOYSTICK OR INSTALLER SUPPLIED SWITCHES.
SEE SECTION 5.1.2 FOR TABLE DEPICTING
WIRELESS RECEIVER COLOR CODE.
Wireless Operator Station Connections
©Copyright Task Force Tips, Inc. 2004-2005
VERIFY RUBBER SEAL IS CLEAN AND UNDAMAGED.
VERIFY THAT NO WIRES ARE CAUGHT BETWEEN LID AND BOX.
USE SUPPLIED FLAT HEAD
SCREWS WITH O-RING SEALS.
TIGHTEN SCREWS SECURELY.
THESE TERMINAL BLOCKS
FROM THE BOARD FOR
EASIER WIRE CONNECTING.
Fig 5.1.2B
THESE TERMINAL BLOCKS
FROM THE BOARD FOR
EASIER WIRE CONNECTING.
Fig 5.1.2D
(6) PLACES.
CAN BE UNPLUGGED
From/To Tether, Optional Operator Station,
Toggle Switch Operation Station, or Communication Interface Box
CAN BE UNPLUGGED
BLUE AND WHITE
NOT USED
17
Fig 5.1.2C
10 FT. (3M) MAXIMUM LENGTH
RED AND BLACK
TO POWER DISTRIBUTION CENTER
Fig 5.1.2E
Main Power Connections
LIY-200 September 14, 2005 Rev02
