4.5 ELEVATION TRAVEL STOPS

The range of elevation travel for the Monsoon Monitor is 90 degrees above zero to 45 degrees below zero. The elevation range may be
limited by installing the supplied stop bolts at the locations shown is figures 4.5A and 4.5B. Consult factory for other ranges. The figures
include installation notes.

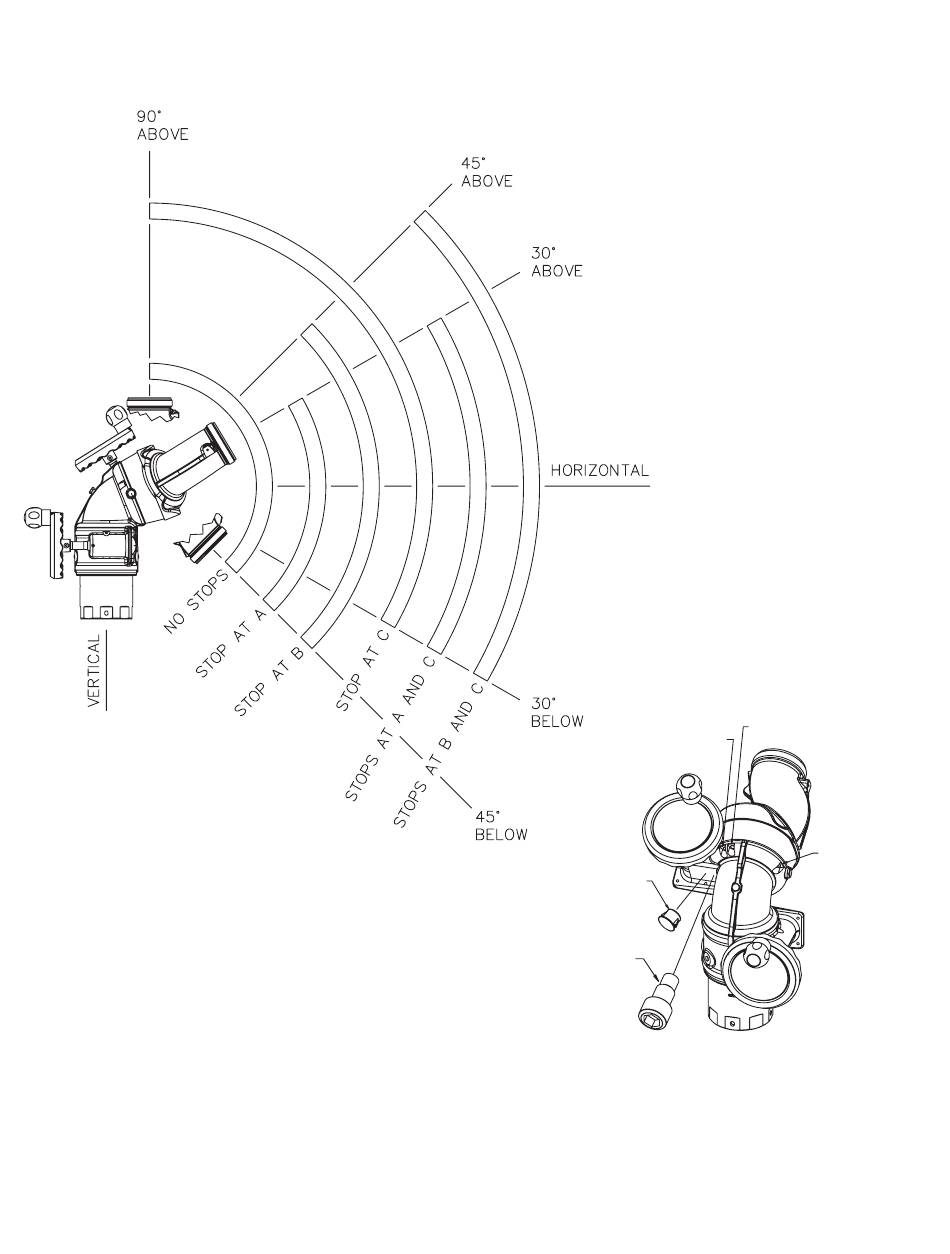

Fig 4.5A
Elevation Travel Limits

4.6 PRESSURE GAGE PORT

There is a ¼" NPT female threaded hole on the back of the monitor. The hole is plugged from the factory. If a pressure gage is desired,
unscrew the plug and install the gage using pipe sealant. Make sure the gage does not interfere with the elevation handwheel.

4.7 DRAIN

There is no drain on the Monsoon Monitor itself. A drain valve should be installed on the monitor's inlet piping.
©Copyright Task Force Tips, Inc. 2004-2005
Pry out plastic plug and install Stop Bolt
to obtain desired travel limits.
Elevation travel with no Stop Bolts is
90° above and 45° below zero.
14
B
A
45° ABOVE
30° ABOVE
HORIZONTAL
HORIZONTAL
PLASTIC
PLUG
#VM4124
STOP BOLT
#V4145
Fig 4.5B
Elevation Travel Stop Locations
LIY-200 September 14, 2005 Rev02
C
30° BELOW
HORIZONTAL
