5.8.2 ELECTRICAL WIRING
The monitor position display needs to be connected to +12/24VDC (red) and ground (black). The blue & white wires from the position
display cable need to be connected to the blue & white wires from the monitor. A terminal box or a high quality, protected splice can be
used to make these connections. See section 5.0 for connecting power and communication cable.
5.9 CONNECTING MONITOR CABLE DIRECTLY TO PROTECTED POWER SUPPLY
The electric RC monitor has an operator station, which is fully functional, mounted on the monitor. If no other operator stations are
selected, the installer will only need to connect power to complete the installation.
5.9.1 ELECTRICAL WIRING
Route cable from monitor and connect to a protected circuit from the truck's power distribution center. Connect the red wire to positive
and the black wire to negative (ground). Cut and discard blue and white wires.
5.10 OPERATOR STATION INSTALLATION DIRECTLY TO MONITOR
The electric RC monitor can be directly connected to a protected power supply, see section 5.9, and then be controlled by one of the
following without the use of a Y4E-RP, primary operating system.
• Tether Operator Station, see section 5.3 for holster and receptacle mounting.
• Toggle Switch Operator Station, see section 5.6 for mounting.
• Communication Interface Box, see section 5.7 for mounting.
©Copyright Task Force Tips, Inc. 2004-2005
To Power Distribution Center
NOTE: To avoid excessive voltage drop at monitor operator station,
do not lengthen factory supplied power or monitor cable.
Voltage supplied to PRIMARY OPERATOR STATION should not fall
below 13 volts when monitor is in operation.

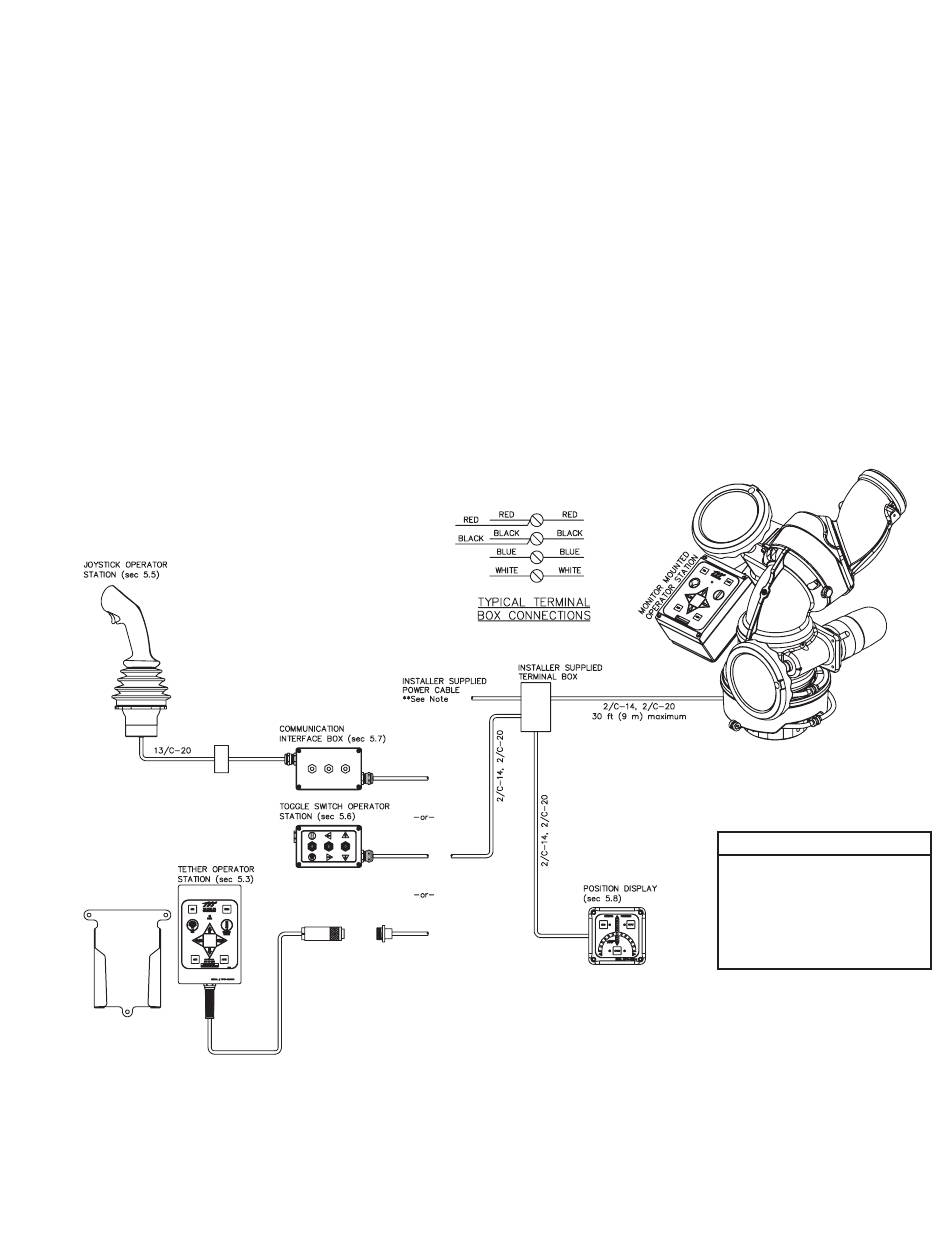

Figure 5.10
Electrical Components
(operator station directly to monitor installations)
23
Recommend Cable Gauge
Max Length Gauge
40 ft . . . . . . 14AWG
65 ft . . . . . . 12AWG
80 ft . . . . . . 2-14AWG
105 ft . . . . . . 10AWG
130 ft . . . . . 2-12AWG
LIY-200 September 14, 2005 Rev02
